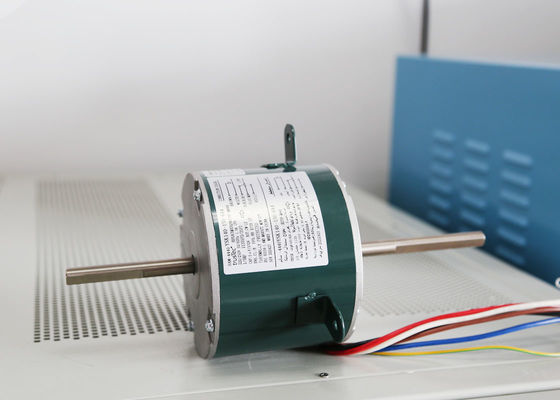

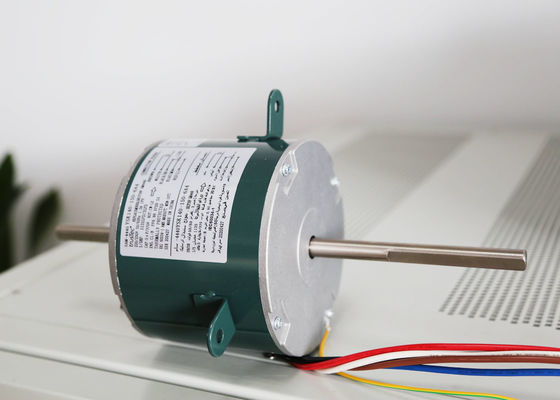

CTM-4440 Falcon Air conditioner 1/5HP 3 Speed with center leg Replacement 5KCP39FGM4440

CTM-4440 Falcon Air conditioner 1/5HP 3 Speed with center leg Replacement 5KCP39FGM4440

  • CTM-4440 Falcon Air conditioner 1/5HP 3 Speed with center leg Replacement 5KCP39FGM4440
  • CTM-4440 Falcon Air conditioner 1/5HP 3 Speed with center leg Replacement 5KCP39FGM4440
  • CTM-4440 Falcon Air conditioner 1/5HP 3 Speed with center leg Replacement 5KCP39FGM4440
CTM-4440 Falcon Air conditioner 1/5HP 3 Speed with center leg Replacement 5KCP39FGM4440
Product Details:
Place of Origin: China
Brand Name: trusTec
Certification: UL Approval E529388,CE approval
Model Number: YSK140-150-6A4
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Application: Window Air Conditioner Motor Frequency: 50/60 Hz
Insulation Class: B Speed: 1115RPM/3SPD
Voltage: 220-230 V Power: 150W
ODM Solutions: Customized AC And EC Motors ODM Solutions: Customized AC And EC Motors
ODM Solutions: ODM Solutions: Customized AC And EC Motors
High Light:

1/5HP Window Ac Fan Motor

,

150W Window Ac Fan Motor

,

YSK140-150-6A4

CTM-4440 YSK140-150-6A4 5KCP39FGM4440 1/5HP Falcon Air conditioner 1/5HP 3 Speed with center leg

Product specification:
Listed are representative motors, only for reference, dimensions and parameters can be customized according to customer requirements, ODM/OEM offered.

Model Power

Voltage

/V

Frequency

/Hz

Speed

/RPM

OEM Model
CTM-1132 YSK120-105-6A 1/7HP 220/230 50/60 825/3 5KCP29TUE1195
CTM-738 YSK120-185-6 1/4HP 220/230 50/60 1125/3 AC809-547-28
CTM-511 YSK140-120-6A2 1/6HP 220/230 50/60 1000/2 5KCP39DGM511T
CTM-635T YSK140-125-6A2 1/6HP 220/230 50/60 1000/3 5KCP39DGM635T
CTM-004 YSK140-120-6A5 1/6HP 220/230 50/60 1095/3 5KCP39DGM004T
CTM-5158 YSK140-120-6A7 1/6HP 220/230 50/60 1050/3 K55HXPKG-5158
CTM-672 YSK140-150-6A2 1/5HP 220/230 50/60 1075/3 5KCP39FGM672S
CTM-635C YSK140-150-6A3 1/5HP 220/230 50/60 1050/3 5KCP39HGS635C
CTM-4440 YSK140-150-6A4 1/5HP 220/230 50/60 1115/3 5KCP39FGM4440
CTM-5966 YSK140-150-6A15 1/5HP 220/230 50/60 1100/3 K55HXLEK-5966
CTM-736 YSK140-180-6A 1/4HP 220/230 50/60 1075/3 5KCP29MGE736S
CTM-635S YSK140-185-6A3 1/4HP 220/230 50/60 1100/3 5KCP39HGS635S
CTM-307 YSK140-245-6A2 1/3HP 220/230 50/60 1075/3 5KCP39HGM307AT
CTM-A30 YSK140-245-4A 1/3HP 220/230 50/60 1335/3 F48U02A30
YSK140/30-4-150-1 1/5HP 220/230 50/60 1200/3
YSK140/35-4-185-1 1/4HP 220/230 50/60 1300/3


Product advantages:



1.Use NSK low noise high quality rolling bearing.



2. Performance

a. Outstanding ODM and product matching ability.

b. The mature technology of trusTec company can ensure the most reliable performance of its motors.



3. Material

a. All motor components meet with the international standard of environmental protection requirement.

b. Stator and rotator are made of 100% pure silicon steel, which makes the motor temperature rise lower in strict running environment.

c. Enameled wire is made of 100% pure copper, which makes the motor longer operation life.



4. Appearance

a. Trustec brand motor enclosure is beautiful and flawless through surface electrophoretic coating treatment, and different enclosure colors are available, such as black, blue gray, blackish green etc.

b. All shafts are processed through high precision computer numerical control CNC machine tools, this makes the shaft dimensions are controlled accurately; The shaft surface is treated with nickel plating to accomplish rust-proof function.



Our services:

1. Barrier-free communication, fast response to customer inquiry.

2. Short delivery time to promise customers' promise.

3. We understand well of the fan motor market and can design customized motors for various customers to help them win with more advanced characteristics.
