| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | YDK-75Q-6P2-1 |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

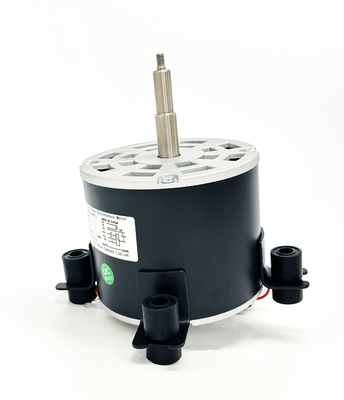

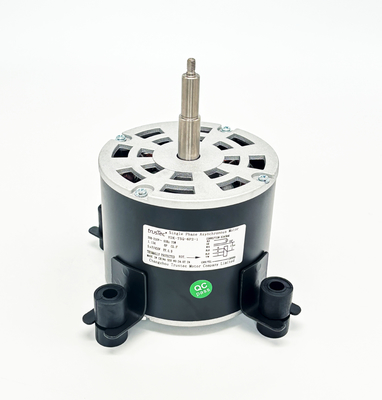

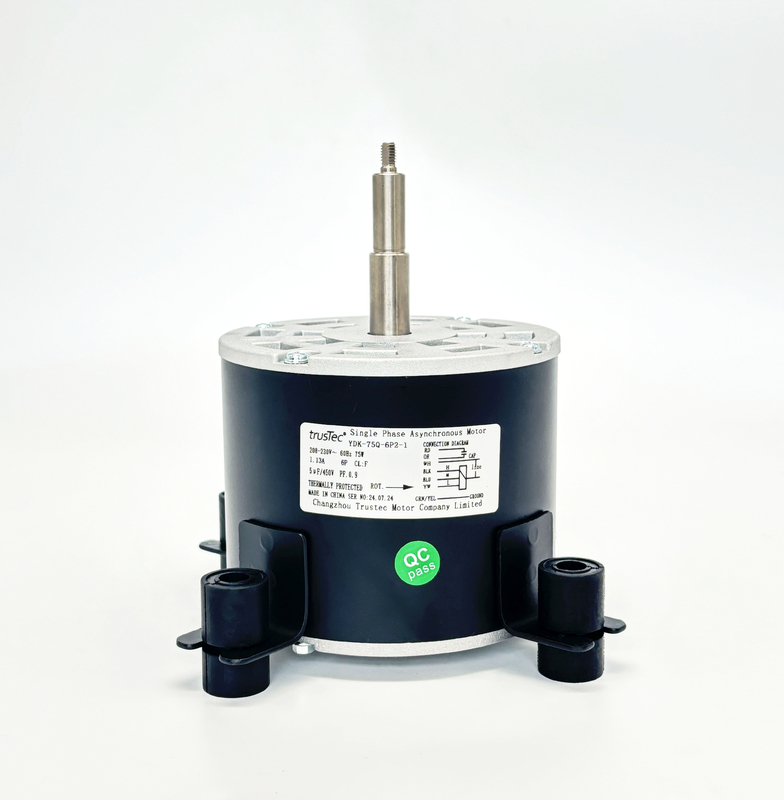

| Product: | Direct Drive Blower Motor | Frame Size: | 42 Frame/120mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220/230V |
| Enclosure Type: | OAO (Open Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 1.13A |
| Phase: | Single Phase | Output Power: | 75W |
| Mounting Orientation: | All Angel | Shaft Diameter: | 1/2" / 1.72mm |
| Insulation Class: | Class F | Lead Length: | 27.5" / 700mm |
| Mounting: | Stud Mounting All Angel | Poles: | 6P |
| Bearings: | Ball Bearing | Max. Ambient Temperature: | 40℃/104℉ |
| Rotation: | CCW-SE | Capacitor: | 5uF/370V |
| Highlight: | 208-230V Blower Motor,120mm Blower Motor,75W Blower Motor |
||
