| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | TZD-550-10B |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

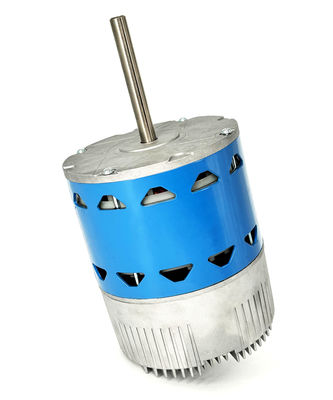

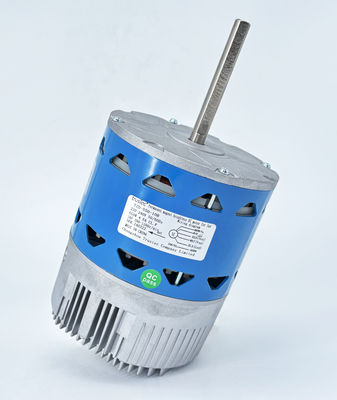

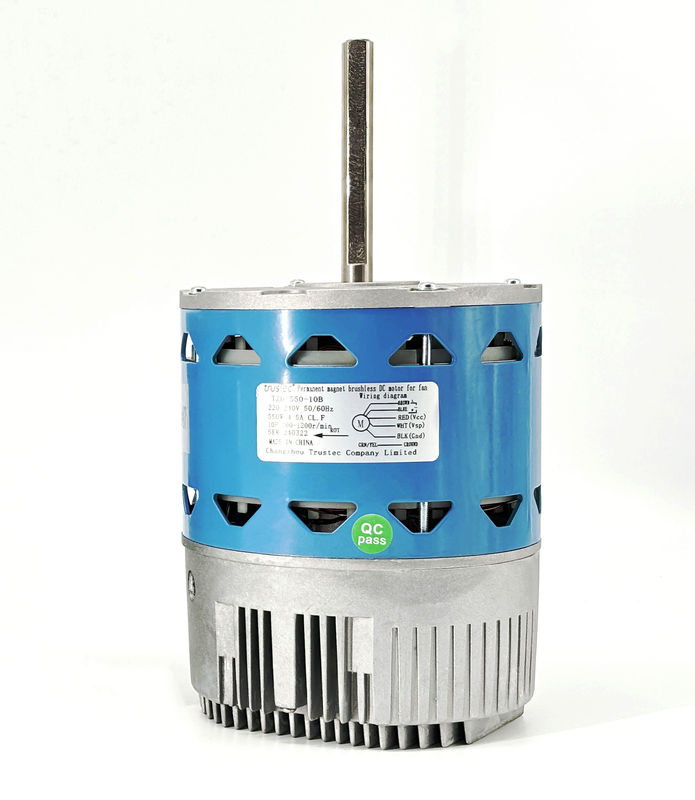

| Product: | Electroncally Commutated Motor (ECM) | Frame: | Nema 48 |
|---|---|---|---|
| Motor Type: | Direct Drive Blower | Supply Voltage: | 220-240V |
| Enclosure Type: | OAO(Open Air Over) | Supply Frequency: | 50/60HZ |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 4.5A |
| Phase: | Single Phase | Output Power: | 550W |
| Mounting: | Round | Speed: | 300-1200RPM |
| Bearings: | Ball Bearing | Poles: | 10P |
| Mounting Orientation: | Stud Mounting All Angel | Shaft Diameter: | 1/2" / 12.7mm |
| Insulation Class: | Class F | Shaft Length: | 4.0" / 101.6mm |
| Rotation: | CW(SE) | Max. Ambient Temperature: | 40℃/104℉ |
| Speed Control: | 0-10V Speed Control/PWM | ||
| Highlight: | 48 Frame BLDC Motor,550W BLDC Motor,220-240V BLDC Motor |
||
