TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-250-6B65-CYM |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

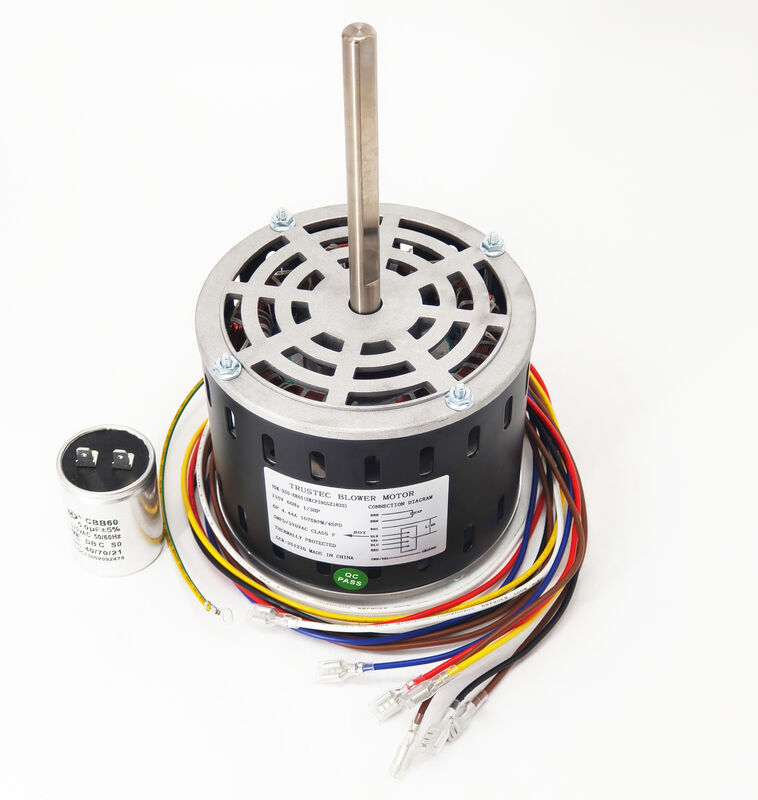

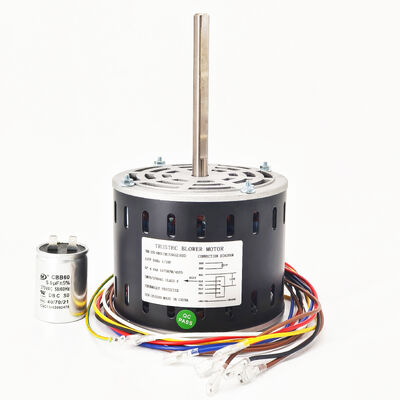

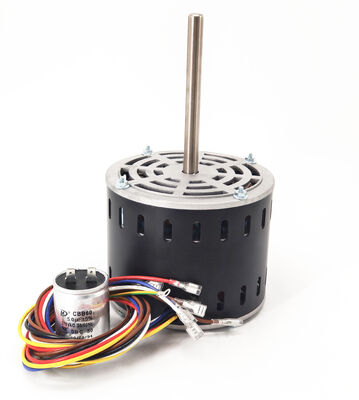

| Product: | Blower Motor | Frame: | 48 Frame-139mm/5.47" |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 115V |
| Enclosure Type: | OAO(Open Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 4.44A |
| Phase: | Single Phase | Output HP: | 185W 1/4HP |
| Shaft Flat: | One Flat | Speed: | 1075RPM/4SPD |
| Mounting Orientation: | All Angle | Capacitor: | 5μF/370V |
| Insulation Class: | Class F | Max. Ambient Temperature: | 70℃/158℉ |
| Bearings: | Ball Bearing | Pole: | 6P |
| Rotation: | CCW-LE | Motor Shell Length: | 100mm/3.94" |
| Shaft Diameter: | 12.7mm/0.5" | Shaft Length: | 132mm/5.20" |
| Flat Length: | 114mm/4.49" | Lead Length: | 800mm/31.5" |
| Replacement Motor: | 5KCP39GGZ183S |
