TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | CTM5-463 |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

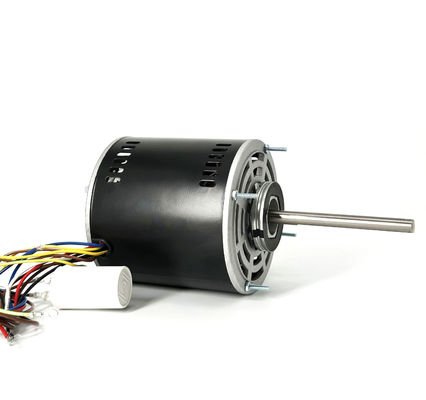

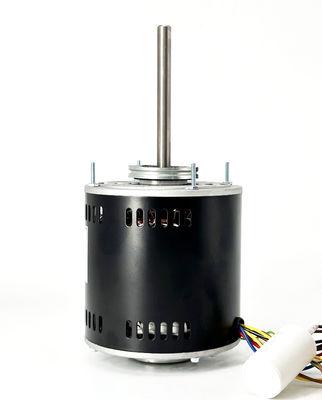

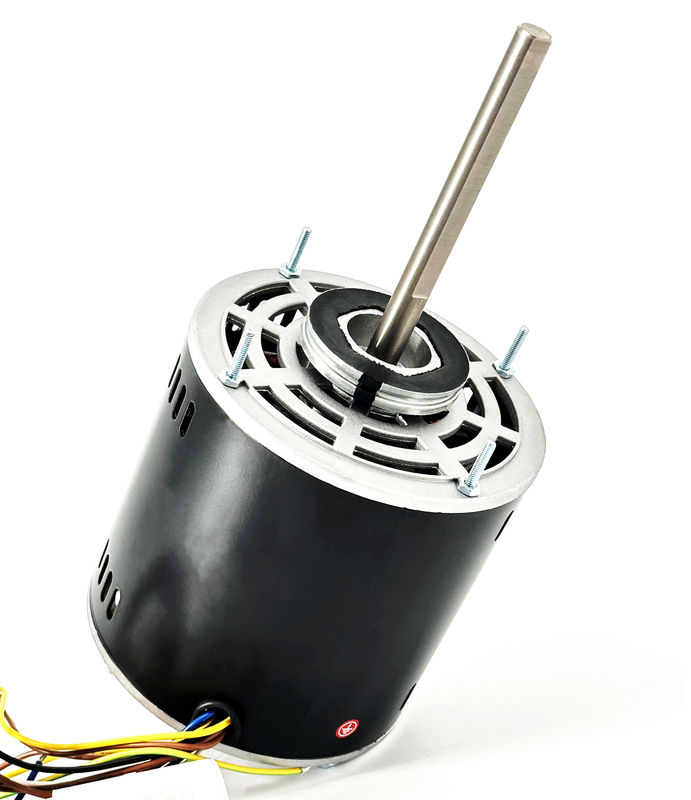

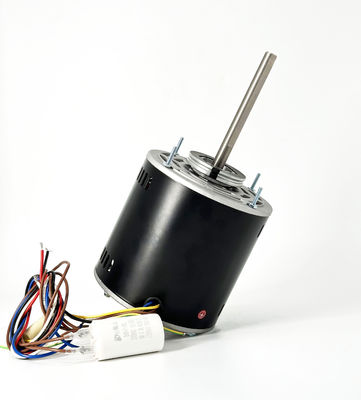

| Product: | Direct Drive Blower Motor | Frame: | Nema 48 |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 115V |
| Enclosure Type: | OAO (Open Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 7.3A |
| Phase: | Single Phase | Output HP: | 1/2 1/3 1/4 1/5 1/6HP |
| Shaft Flats: | One Flat | Rated Speed: | 1075RPM/4SPD |
| Mounting Orientation: | All Angle | Capacitor: | 7.5uF/370V |
| Mounting: | Stud Mounting All Angel | Shaft Length: | 5.5" / 139.7mm |
| Insulation Class: | Class B | Shaft Diameter: | 1/2" / 12.7mm |
| Bearings: | Ball Bearing | Flat Length: | 4" / 101.6mm |
| Max. Ambient Temperature: | 40℃/104℉ | Lead Length: | 26" / 660.4mm |
| Rotation: | Reversible | ||
| Highlight: | 1/4 Direct Drive Blower Motor,1/5 Direct Drive Blower Motor,1/6HP Direct Drive Blower Motor |
||
Cross Reference
|
TRUSTEC
|
DESCRIPTION
|
CENTURY/
AO SMITH
|
FASCO
|
GE/GENTEQ
|
US MOTORS/
EMERSON
|
WAGNER
|
YORK SOURCE
|
MARS
|
NORDYNE/
PARTNERS
CHOICE
|
RHEEM/RUUD
PROTECH
|
|
CTM5-463
|
1/2 1/3 1/4 1/5 1/6 HP 115V 1075/4 RPM
|
FDL6001
|
D2835
|
3463 | 5460 |
WG840463
|
S1-FHM3463
|
10463 | 01-0698 |
51-23012-41
|
|
CTM5-466
|
1/2 1/3 1/4 1/5 3/4 HP 115V 1075/4 RPM |
FDL6002
|
D2832 | 3466 | 5470 |
WG840466
|
S1-FHM3466
|
10466 | 01-0702 | |
|
CTM5-464
|
1/2 1/3 1/4 1/5 1/6 HP 208-230V 1075/4 RPM
|
FDL6000
|
D833
|
3464 | 5461 |
WG840464
|
S1-FHM3464
|
10464 | 01-0699 |
51-23022-41
|
|
CTM5-467 |
1/2 1/3 1/4 1/5 3/4 HP 208-230V 1075/4 RPM
|
FD6001
|
D2833 | 3467 | 5471 |
WG840467
|
S1-FHM3467
|
10467 | 01-0701 |
You can refer to the file for more motor models at CROSS REFERENCE TRUSTEC MOTOR.pdf
