TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:

|
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | TECMS-600-10B-ARN |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

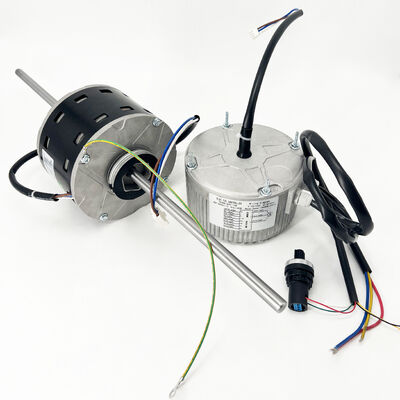

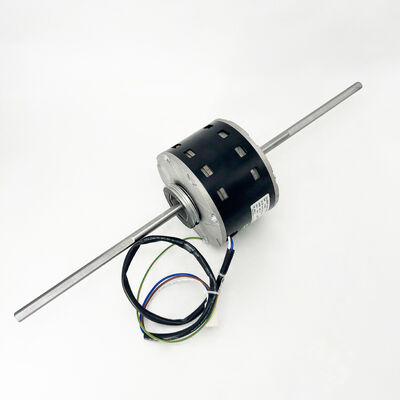

| Product: | ECM Fan Motor | Frame: | 48 Frame |
|---|---|---|---|
| Enclosure Type: | OAO(Open Air Over) | Supply Voltage: | 120/240V |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Supply Frequency: | 50/60HZ |
| Current: | 6.8A | Mounting: | Bracket |
| Output Power: | 600W 4/5HP | Bearings: | Ball Bearing |
| Speed: | 1075RPM | Mounting Orientation: | All Angle |
| Poles: | 10P | Insulation Class: | Class F |
| Max. Ambient Temperature: | 70℃/158℉ | Control Mode: | VSP |
| Flat Length: | 153mm/6.02" *2 | Rotation: | CCW-LE |
| Shaft Length: | 223.5mm/8.80" *2 | Shaft Diameter: | 12.7mm/0.5" |
| Motor Shell Length: | 124mm/4.88" |
