| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | CTM5-587 |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

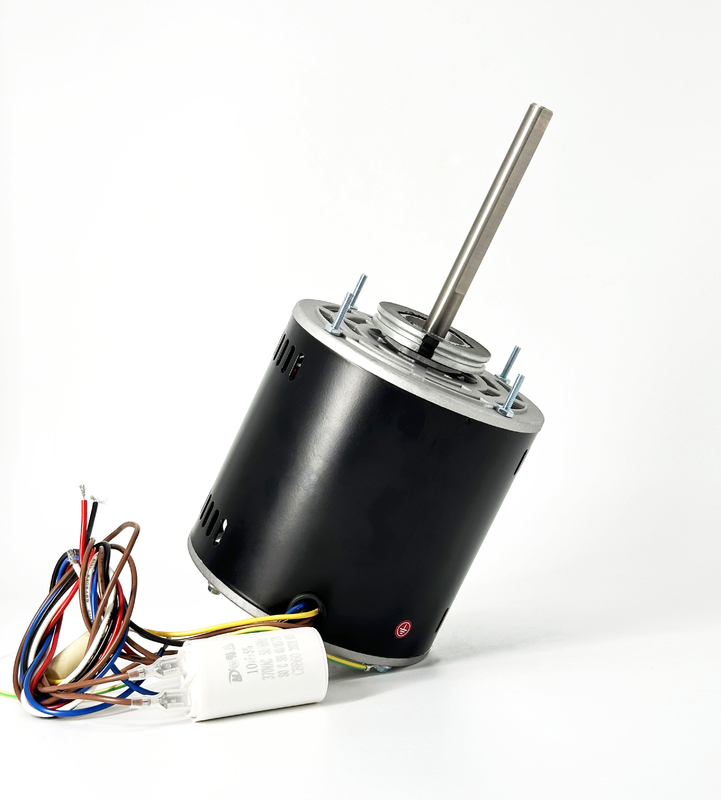

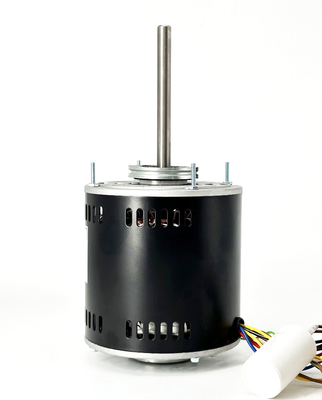

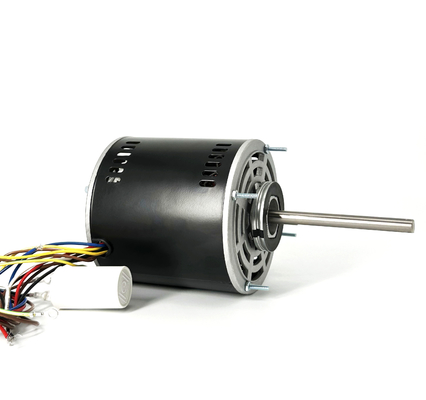

| Product: | Direct Drive Blower Motor | Frame: | Nema 48 |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 115V |
| Enclosure Type: | OAO (Open Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 6.5A |
| Phase: | Single Phase | Output HP: | 1/2HP |
| Shaft Flats: | One Flat | Rated Speed: | 1075RPM/3SPD |
| Mounting Orientation: | All Angle | Capacitor: | 10uF/370V |
| Mounting: | Stud Mounting All Angel | Shaft Length: | 5.5" / 139mm |
| Insulation Class: | Class B | Shaft Diameter: | 1/2" / 12.7mm |
| Bearings: | Ball Bearing | Flat Length: | 4.1" / 104mm |
| Max. Ambient Temperature: | 40℃/104℉ | Lead Length: | 23" / 584mm |
| Rotation: | Reversible | ||
| Highlight: | 115V Direct Drive Blower Motor,3SPD Direct Drive Blower Motor,1/2HP Direct Drive Blower Motor |
||
Cross Reference
|
TRUSTEC
|
DESCRIPTION
|
CENTURY/
AO SMITH
|
FASCO
|
GE/GENTEQ
|
US MOTORS/
EMERSON
|
WAGNER
|
YORK SOURCE
|
MARATHON |
MARS
|
NORDYNE/
PARTNERS
CHOICE
|
PACKARD |
RHEEM/RUUD
PROTECH
|
|
CTM5-583
|
1/4HP 115V 1075/3 RPM
|
FDL1026
|
D721
|
3583 | 1863 |
WG840583
|
S1-FHM3583
|
10583 | 01-0169 | 43583 | W51-14BAA3-01 | |
|
CTM5-585
|
1/3HP 115V 1075/3 RPM |
FDL1036
|
D701 | 3585 | 1864 |
WG840585
|
S1-FHM3585
|
X002 | 10585 | 01-0170 | 43585 | W51-13BAA3-01 |
|
CTM5-587
|
1/2HP 115V 1075/3 RPM
|
FDL1056
|
D701
|
3587 | 1865 |
WG840587
|
S1-FHM3587
|
X004 | 10587 | 01-0171 | 43587 | W51-12BAA3-01 |
|
CTM5-589
|
3/4HP 115V 1075/3 RPM
|
DL1076
|
D278 | 3589 | 8904 | WG840589 | S1-FHM3589 | X009 | 10589 | 01-0172 | 43589 | W51-34BAA3-01 |
|
CTM5-584
|
1/4HP 208-230V 1075/3 RPM
|
D1026
|
D727 | 3584 | 1971 | WG840584 | S1-FHM3584 | X001 | 10584 | 01-0173 | 43584 | W51-14BJA3-01 |
| CTM5-586 | 1/3HP 208-230V 1075/3 RPM | FD1036 | D923 | 3586 | 1972 | WG840586 | S1-FHM3586 | X003 | 10586 | 01-0174 | 43586 | W51-13BJA3-01 |
| CTM5-588 | 1/2HP 208-230V 1075/3 RPM | FD1056 | D703 | 3588 | 1973 | WG840588 | S1-FHM3588 | X005 | 10588 | 01-0175 | 43588 | W51-12BJA3-01 |
| CTM5-590 | 3/4HP 208-230V 1075/3 RPM | D1076 | D729 | 3590 | 8905 | WG840590 | S1-FHM3590 | X010 | 10590 | 01-0176 | 43590 | W51-34BJA3-01 |
You can refer to the file for more motor models at CROSS REFERENCE TRUSTEC MOTOR.pdf
