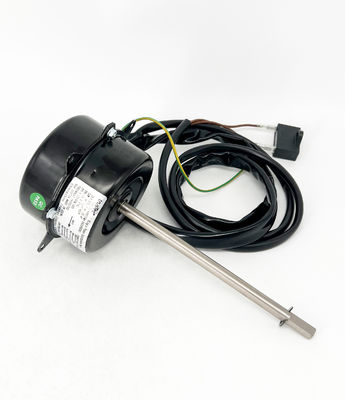

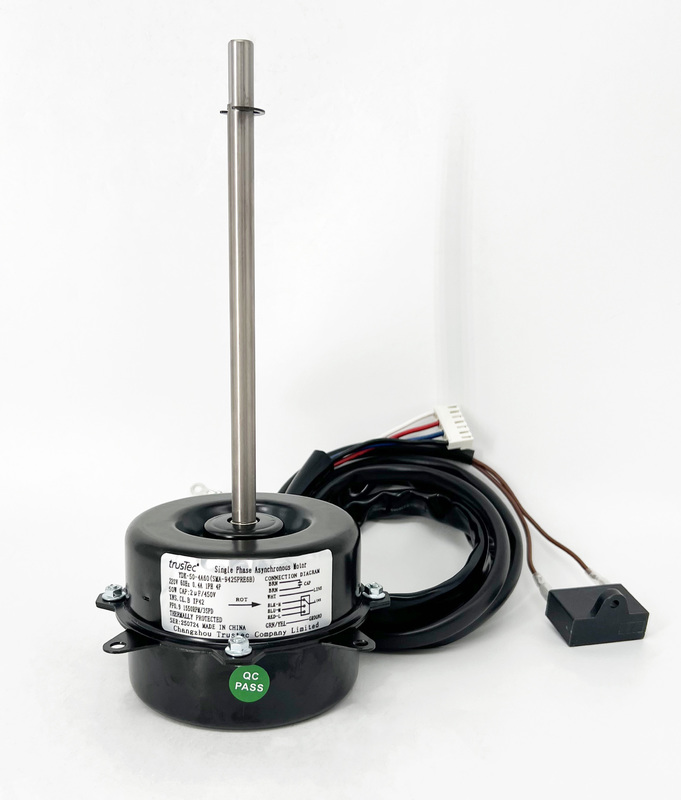

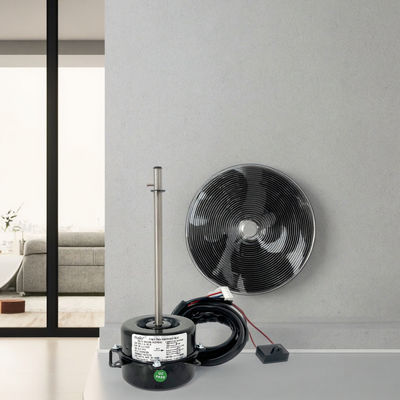

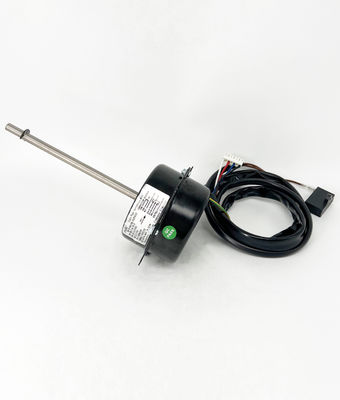

Name: 50W 1550RPM/3SPD 220V AC Indoor Fan Motor for Air Conditioner with All Angle Mounting
Brand: Changzhou Trustec Company Limited
SKU: YDK-50-4A60-KPM
Price: 13.39 USD
Availability: InStock

Home Products Air Conditioner Fan Motor

50W 1550RPM/3SPD 220V AC Indoor Fan Motor for Air Conditioner with All Angle Mounting

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	trusTec
Model Number:	YDK-50-4A60-KPM

Payment & Shipping Terms:

Minimum Order Quantity:	200
Price:	$13.39-14.49

Contact Now

Detailed Product Description

AC Voltage:	220V	Rated Power:	50W
Rated Speed:	1550RPM/3SPD	Frame Size:	95mm
Motor Type:	Permanent Split Capacitor	Enclosure Type:	TEAO (Totally Enclosed Air Over)
Phase:	Single Phase	Shaft Diameter:	1/2" / 12.7mm
Shaft Flat Length:	0.82" / 21mm	Motor Shell Length:	9.96" / 253mm
Lead Length:	17.71" / 450mm	Rotation Direction:	CCWSE
Supply Frequency:	60Hz	Current:	0.4A
Pole:	4P
Highlight:	50W AC Indoor Fan Motor , 1550RPM/3SPD Air Conditioner Fan Motor , 220V HVAC Fan Motor

AC Indoor Fan Motor for Air Conditioner - 50W 1550RPM/3SPD 220V 60HZ

Features and Specifications

Product	Indoor Fan Motor
Motor Type	Permanent Split Capacitor
Enclosure Type	TEAO (Totally Enclosed Air Over)
Thermal Overload	Equipped With An Automatic Thermal Overload
Phase	Single Phase
Shaft Flats	One Flat
Mounting Orientation	All Angle
Bearings	Ball Bearing
Mounting	Stud Mounting All Angel
Max. Ambient Temperature	40℃/104℉
Frame	95mm
Supply Voltage	220V
Supply Frequency	60Hz
Current	0.4A
Output HP	50W
Rated Speed	1550RPM/3SPD
Pole	4P
IP	42
Capacitor	2uF/450V
Insulation Class	Class B
Shaft Diameter	1/2" / 12.7mm
Flat Length	0.82" /21mm
Motor Shell Length	9.96" / 253mm
Lead Length	17.71" / 450mm
Rotation	CCWSE
