TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-75-6A10-CYM |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

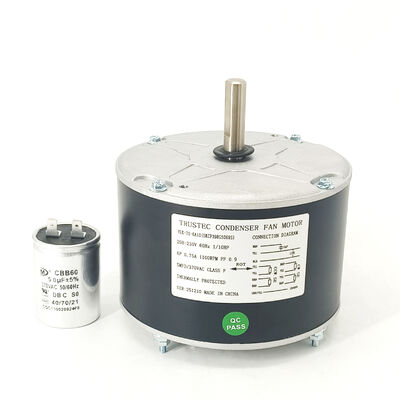

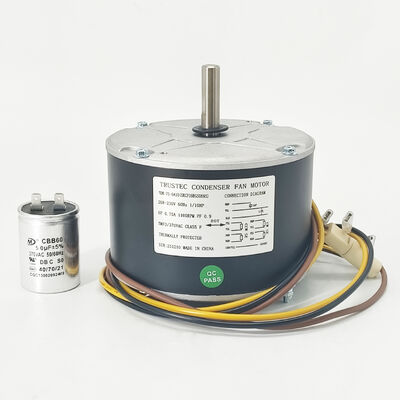

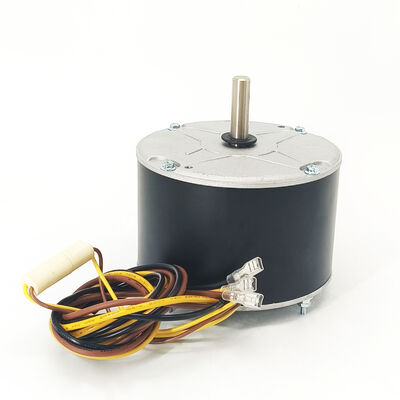

| Product: | Condenser Fan Motor | Frame: | 48 Frame-139mm/5.47" |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 208-230V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.75A |
| Phase: | Single Phase | Output HP: | 1/10HP 75W |
| Shaft Flat: | One Flat | Speed: | 1100RPM |
| Mounting Orientation: | All Angle | Capacitor: | 5μF/370V |
| Insulation Class: | Class F | Pole: | 6P |
| Rotation: | Reversible-CW/CCW | PF: | 0.9 |
| Bearings: | Ball Bearing | Max. Ambient Temperature: | 70℃/158℉ |
| Shaft Length: | 51mm/2.01" | Shaft Diameter: | 12.7mm/0.5" |
| Motor Shell Length: | 82mm/3.23" | Flat Length: | 32.5mm/1.28" |
| Lead Length: | 1100mm/43.31" | Screw Length: | 11mm/0.43" |
| Replacement Motor: | 5KCP39BGS069S |
