TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-94-8A52（K55HXAJN-4104-CJK |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

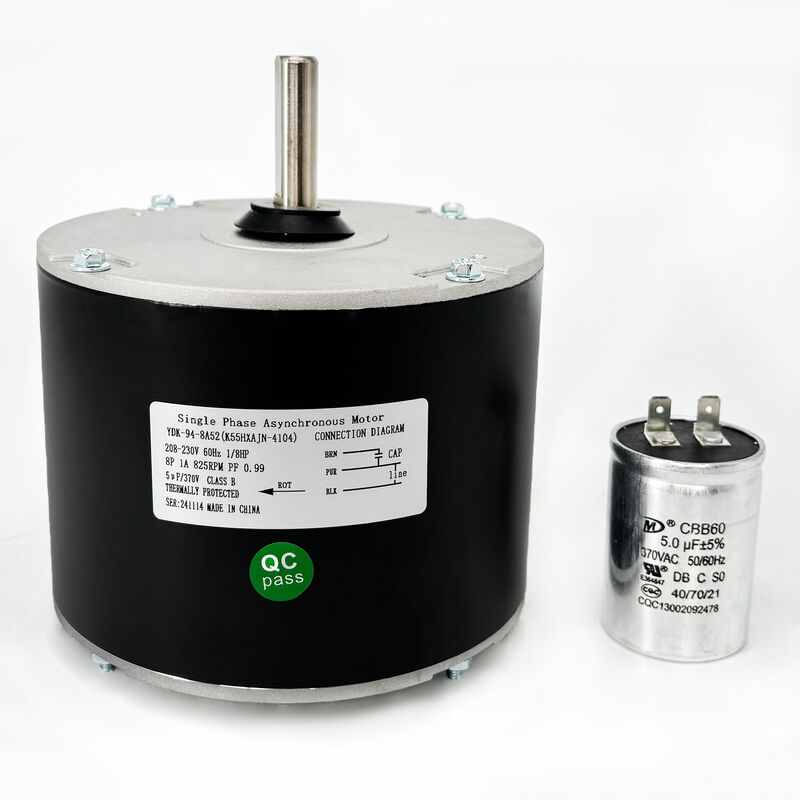

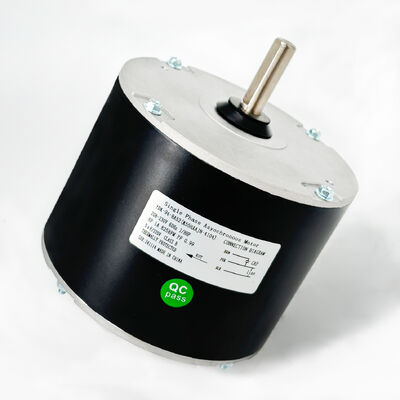

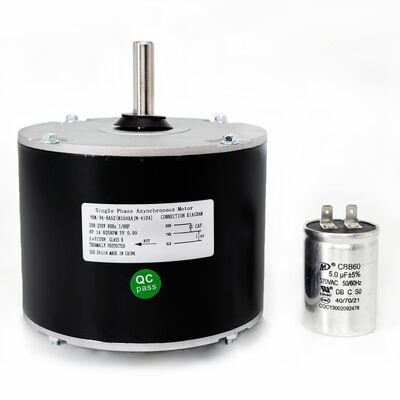

| Product: | Condenser Fan Motor | Supply Voltage: | 230V |
|---|---|---|---|
| Replacement Motor: | K55HXAJN-4104 | Supply Frequency: | 60Hz |
| Motor Type: | Permanent Split Capacitor | Current: | 1A |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Output HP: | 94W 1/8HP |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Speed: | 835RPM |
| Phase: | Single Phase | Capacitor: | 5μF/370V |
| Shaft Flat: | One Flat | Pole: | 8P |
| Mounting Orientation: | All Angle | PF: | 0.99 |
| Insulation Class: | Class B | Max. Ambient Temperature: | 40℃/104℉ |
| Bearings: | Ball Bearing | Rotation: | CW |
