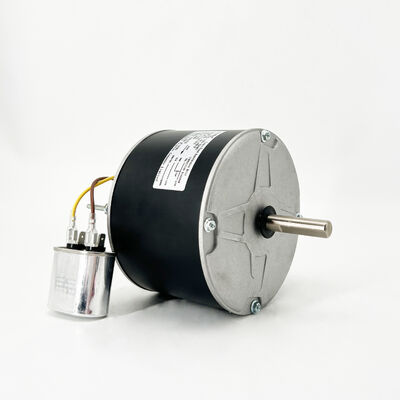

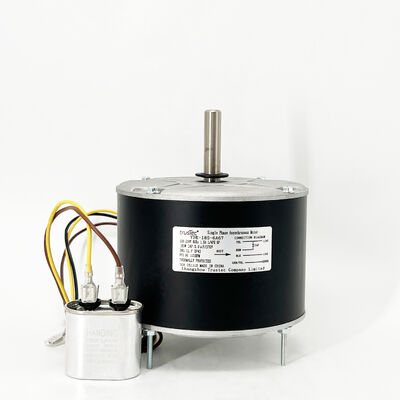

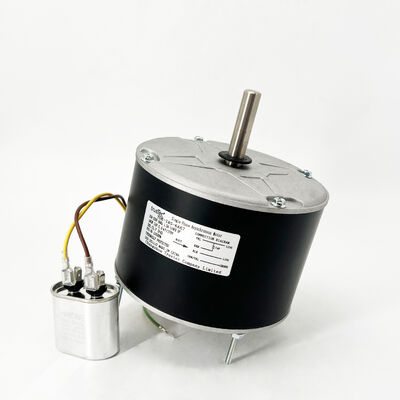

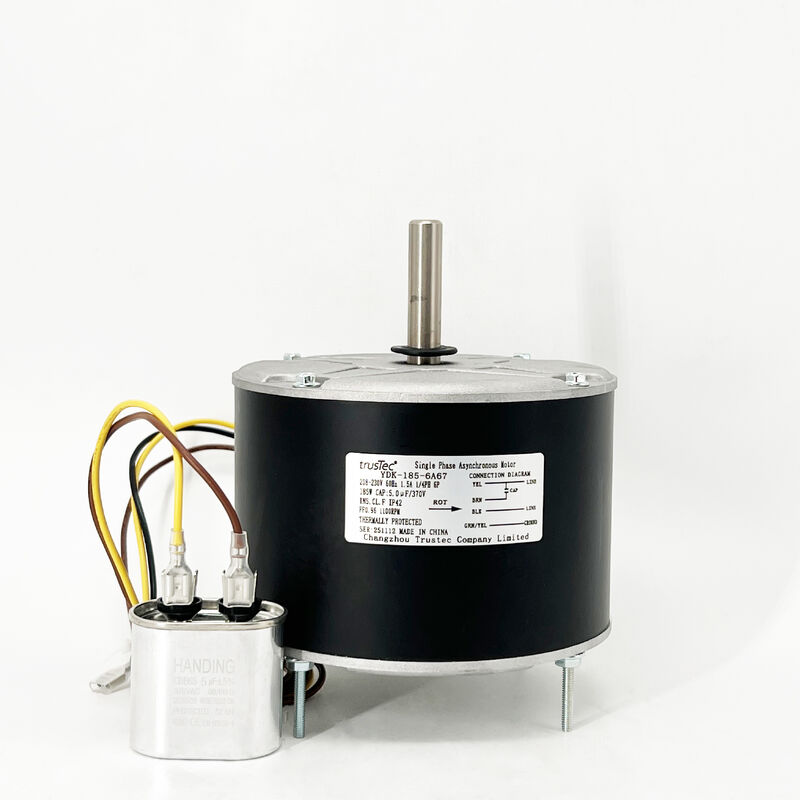

TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:

|
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | YDK-185-6A67-USS |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |
| Product: | Condenser Fan Motor | Frame: | 48 Frame |
|---|---|---|---|
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Voltage: | 208-230V |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Supply Frequency: | 60HZ |
| Phase: | Single Phase | Current: | 1.5A |
| Mounting: | Bracket | Output Power: | 185W 1/4HP |
| Bearings: | Ball Bearing | Speed: | 1100RPM |
| Mounting Orientation: | All Angle | Poles: | 6P |
| Insulation Class: | Class F | Max. Ambient Temperature: | 70℃/158℉ |
| Capacitor: | 5.0μF/370V | Flat Length: | 35mm/1.38" |
| Rotation: | CW-LE | Shaft Length: | 52mm/2.05" |
| Shaft Diameter: | 12.7mm/0.5" | Motor Shell Length: | 102mm/ 4.02" |
| Screw Length: | 25mm/0.98" | Lead Length: | 1150mm/45.28" |
