| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | YDK-250-6A66-NKL |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

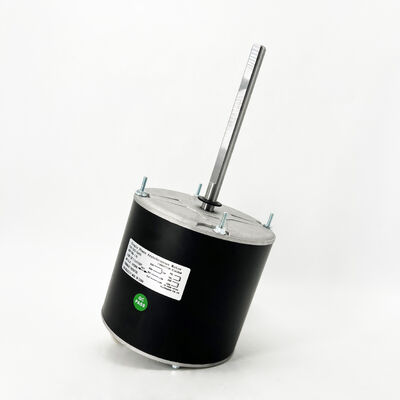

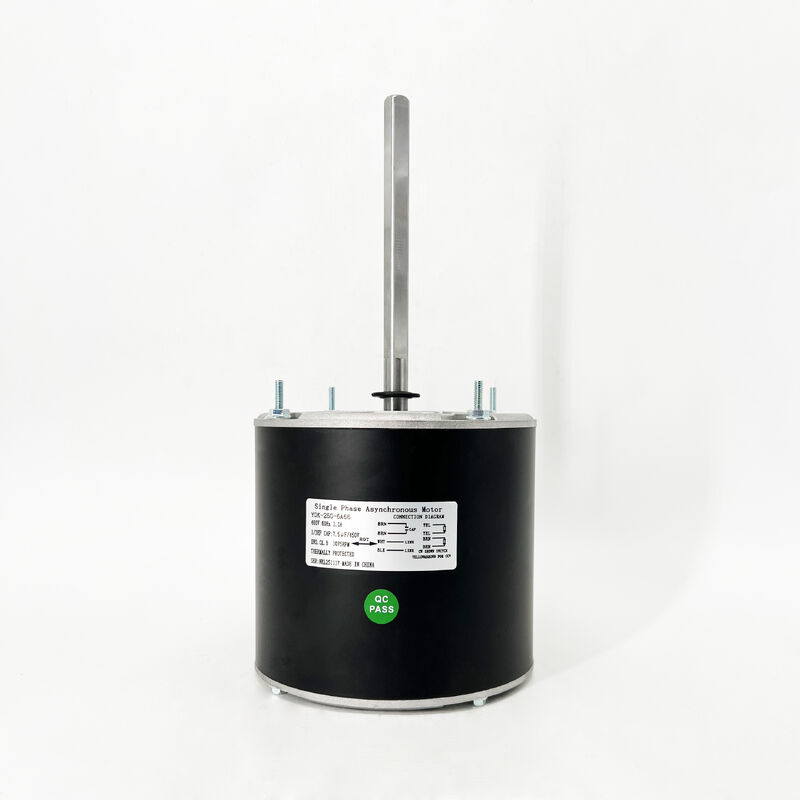

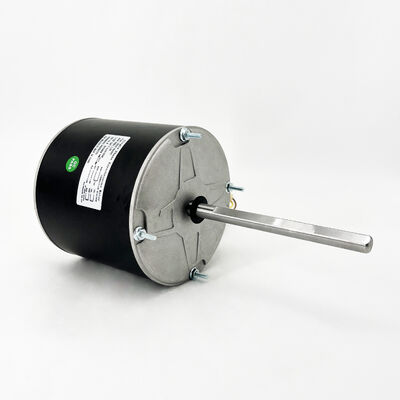

| Product: | Condenser Fan Motor | Frame: | 48 Frame |
|---|---|---|---|
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Voltage: | 460V |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Supply Frequency: | 60HZ |
| Phase: | Single Phase | Current: | 1A |
| Mounting: | Bracket | Output Power: | 250W 1/3HP |
| Bearings: | Ball Bearing | Speed: | 1075RPM |
| Mounting Orientation: | All Angle | Poles: | 6P |
| Insulation Class: | Class B | Max. Ambient Temperature: | 40℃/104℉ |
| Capacitor: | 7.5μF/450V | Flat Length: | 127mm/5.00" |
| Rotation: | CCW-CW | Shaft Length: | 154mm/6.06" |
| Shaft Diameter: | 12.7mm/0.5" | Motor Shell Length: | 132mm/ 5.20" |
| Screw Length: | 14mm/0.55" | Lead Length: | 700mm/27.56" |
