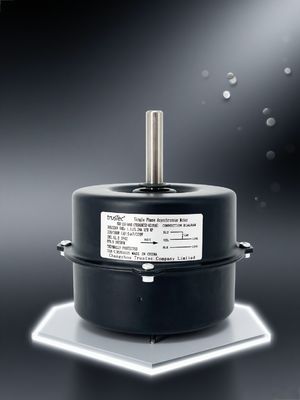

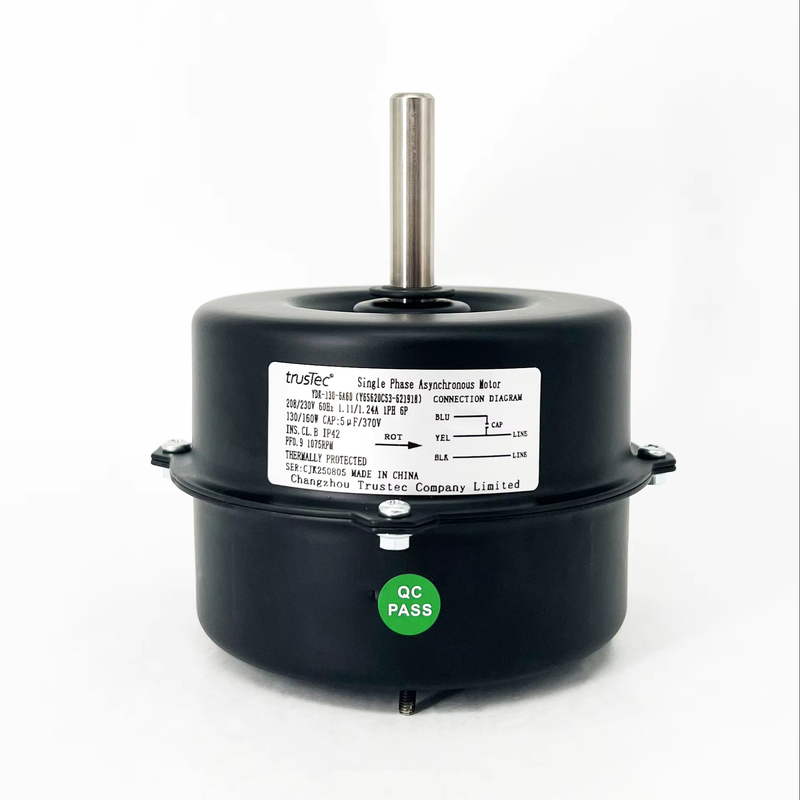

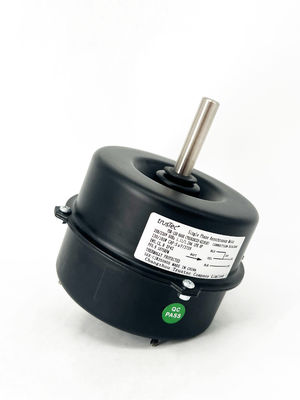

Name: AC Outdoor Fan Motor for Air Conditioner with 95mm Frame 24 Months Warranty and 1/2" Shaft Diameter
Brand: Changzhou Trustec Company Limited
SKU: YDK-130-6A60-CJK
Price: 20.20 USD
Availability: InStock

Home Products Air Conditioner Fan Motor

AC Outdoor Fan Motor for Air Conditioner with 95mm Frame 24 Months Warranty and 1/2" Shaft Diameter

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	trusTec
Model Number:	YDK-130-6A60-CJK

Payment & Shipping Terms:

Minimum Order Quantity:	200
Price:	$20.20-21.60

Contact Now

Detailed Product Description

AC Voltage:	208/230V	Rated Power:	130/160W
Rated Speed:	1075RPM	Frame Size:	95mm
Motor Type:	Permanent Split Capacitor	Enclosure Type:	TEAO (Totally Enclosed Air Over)
Phase:	Single Phase	Shaft Diameter:	1/2" / 12.7mm
Shaft Length:	2.24" / 57mm	Flat Length:	1.57" /40mm
Motor Shell Length:	3.58" / 91mm	Lead Length:	43.3" / 1100mm
Supply Frequency:	60Hz	Current:	1.11/1.24A
Insulation Class:	Class B
Highlight:	95mm Frame AC Outdoor Fan Motor , 24 Months Warranty Air Conditioner Fan Motor , 1/2" Shaft Diameter HVAC Fan Motor

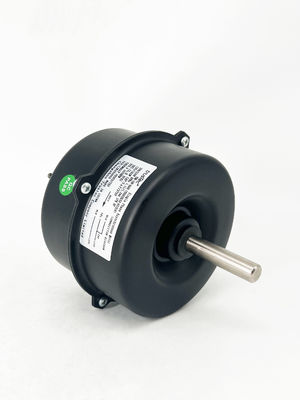

AC Outdoor Fan Motor for Air Conditioner - 130/160W 1075RPM 208/230V 60Hz

Features and Specifications

Product	Outdoor Fan Motor
Motor Type	Permanent Split Capacitor
Enclosure Type	TEAO (Totally Enclosed Air Over)
Thermal Overload	Equipped With An Automatic Thermal Overload
Phase	Single Phase
Shaft Flats	One Flat
Mounting Orientation	All Angle
Bearings	Ball Bearing
Mounting	Stud Mounting All Angel
Max. Ambient Temperature	40℃/104℉
Frame	95mm
Supply Voltage	208/230V
Supply Frequency	60Hz
Current	1.11/1.24A
Output HP	130/160W
Rated Speed	1075RPM
Pole	6P
IP	42
Capacitor	5uF/370V
Insulation Class	Class B
Shaft Diameter	1/2" / 12.7mm
Shaft Length	2.24" / 57mm
Flat Length	1.57" /40mm
Motor Shell Length	3.58" / 91mm
Lead Length	43.3" / 1100mm
Rotation	CCW-SE
