TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-125-8A60-BMF |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

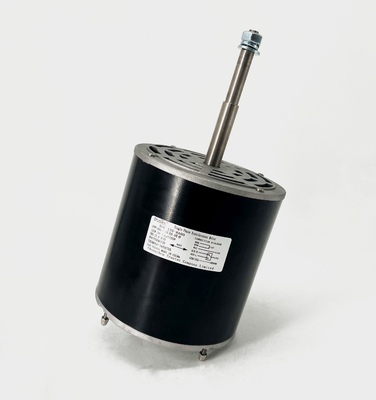

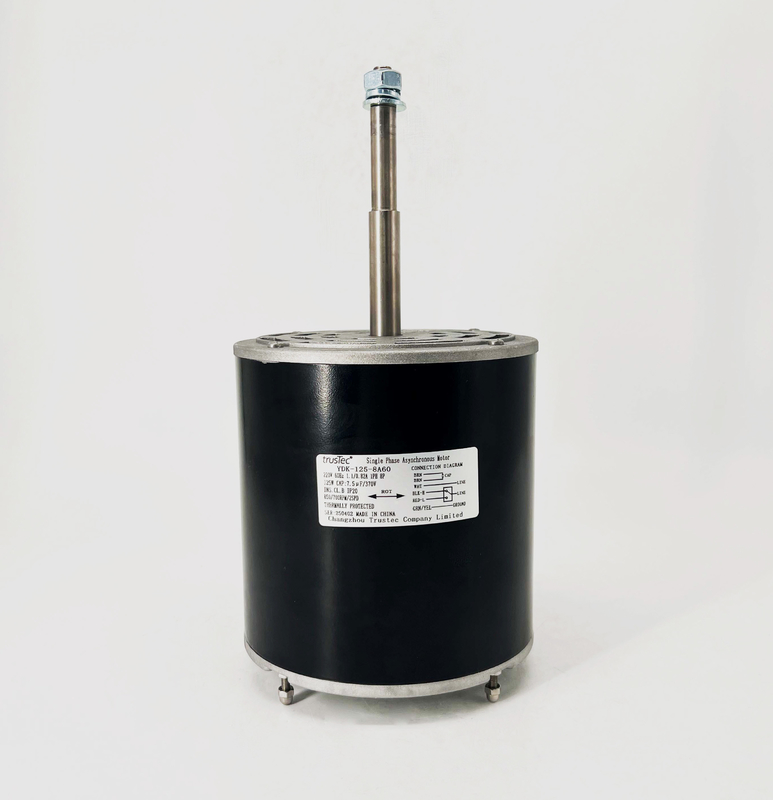

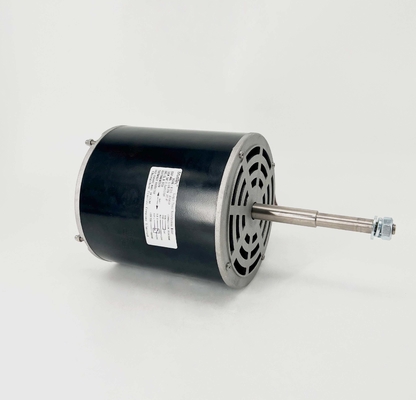

| Product: | Condenser Fan Motor | Frame: | 5.630"/143mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220V |
| Enclosure Type: | OAO(Open Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 1.1/0.82A |
| Phase: | Single Phase | Output HP: | 1/6 HP |
| Shaft Flat: | One Flat | Speed: | 850/700RPM |
| Mounting Orientation: | All Angle | Capacitor: | 7.5uF/370V |
| Insulation Class: | Class B | Pole: | 8P |
| Bearings: | Ball Bearing | Shaft Diameter: | 0.591" / 15mm |
| Rotation: | CW/CCW | Shaft Length: | 4.685'"/119mm |
| Flat Length: | 1.496"/38mm | Max. Ambient Temperature: | 40℃/104℉ |
| Lead Length: | 47.24"/1200mm | Motor Shell Length: | 5.866"/149mm |
| Highlight: | 220V Blower Fan Motor,1/6HP Blower Fan Motor,700RPM Blower Fan Motor |
||
