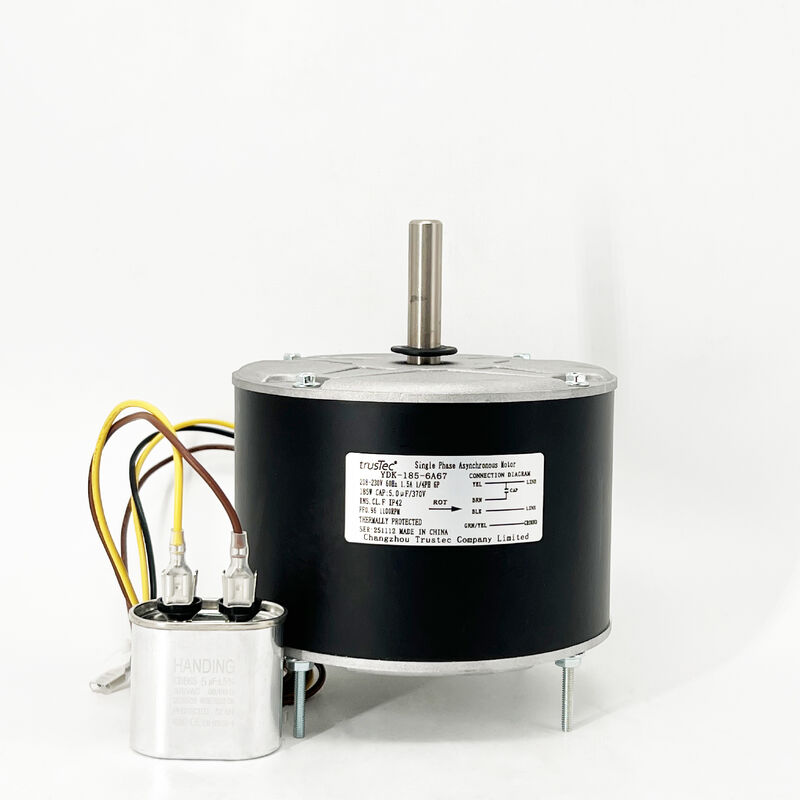

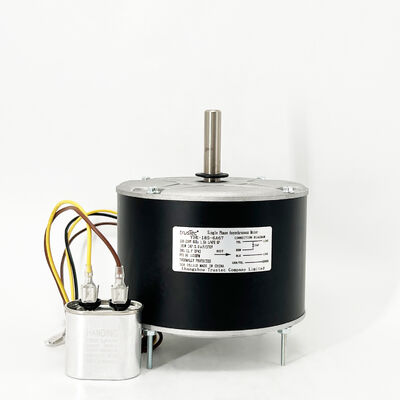

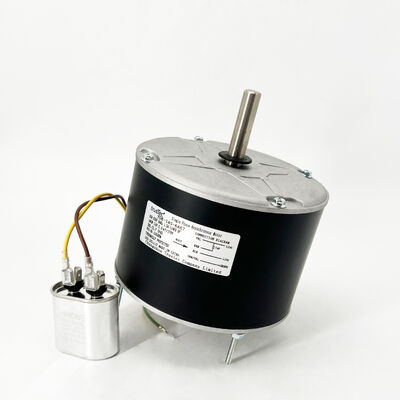

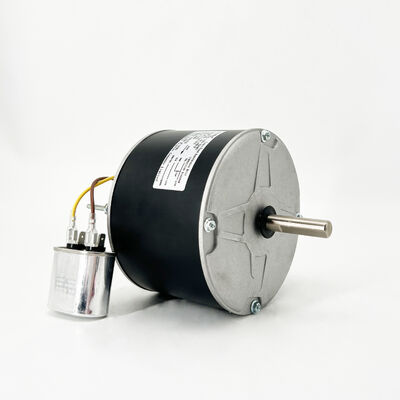

Condenser Fan Motor 0131M00018PSP - 1/4HP 1100RPM 208-230V 60HZ TEAO

Product Details:

Place of Origin:	Changzhou, China
Brand Name:	trusTec
Certification:	CE
Model Number:	YDK-185-6A67-USS

Payment & Shipping Terms:

Minimum Order Quantity:	200 pcs
Price:	Negotiable (FOB/CNF/CIF)
Packaging Details:	Standard carton packing, foam board inside for protection.
Delivery Time:	15 days fresh products after order confirmation.
Payment Terms:	T/T, L/C
Supply Ability:	100,000 pcs per month

Contact Now

Product:

Condenser Fan Motor

Frame:

48 Frame

Enclosure Type:

TEAO(Totally Enclosed Air Over)

Supply Voltage:

208-230V

Thermal Overload:

Equipped With An Automatic Thermal Overload

Supply Frequency:

60HZ

Phase:

Single Phase

Current:

1.5A

Mounting:

Bracket

Output Power:

185W 1/4HP

Bearings:

Ball Bearing

Speed:

1100RPM

Mounting Orientation:

All Angle

Poles:

Insulation Class:

Class F

Max. Ambient Temperature:

70℃/158℉

Capacitor:

5.0μF/370V

Flat Length:

35mm/1.38"

Rotation:

CW-LE

Shaft Length:

52mm/2.05"

Shaft Diameter:

12.7mm/0.5"

Motor Shell Length:

102mm/ 4.02"

Screw Length:

25mm/0.98"

Lead Length:

1150mm/45.28"

OEM:

Goodman Amana Janitrol Condenser Fan Motor 0131M00018PSP

Highlight:

Condenser Fan Motor 1/4HP 1100RPM

Condenser Fan Motor 208-230V TEAO

Condenser Fan Motor 60HZ with warranty

ANX130361
- ANX130361AA
ANX130421
- ANX130421AA
ANX130481
- ANX130481AA
ANX130601
- ANX130601AA
ANZ130361
- ANZ130361AA
ANZ130421
- ANZ130421AA
ANZ130481
- ANZ130481AA
ASX130361
- ASX130361DA
CKL24-1
- CKL24-1P
- CKL24-1R
CKL30-1
- CKL30-1M
- CKL30-1N
CKL36-1
- CKL36-1M
- CKL36-1N
- CKL36-1PB
CKL42-1
- CKL42-1M
- CKL42-1N
CKL49-1
- CKL49-1M
- CKL49-1N
- CKL49-1PB
CKL49-3
- CKL49-3M
- CKL49-3N
CKL60-1
- CKL60-1M
- CKL60-1N
- CKL60-1PB
CKL60-3
- CKL60-3M
- CKL60-3N
- CKL60-3PB
DX13SA0483
- DX13SA0483AA
DX13SN0361
- DX13SN0361AA
DX13SN0421
- DX13SN0421AA
DX13SN0481
- DX13SN0481AA
DX13SN0601
- DX13SN0601AA
DZ13SA0363
- DZ13SA0363AA
DZ13SA0483
- DZ13SA0483AA
DZ13SN0361
- DZ13SN0361AA
DZ13SN0421
- DZ13SN0421AA
DZ13SN0481
- DZ13SN0481AA
GSC130363
- GSC130363BC
- GSC130363BD
GSC130421
- GSC130421AA
- GSC130421AB
- GSC130421AC
- GSC130421BA
- GSC130421BB
- GSC130421CA
- GSC130421CB
GSC130481
- GSC130481BA
- GSC130481BB
- GSC130481CA
- GSC130481CB
GSC130483
- GSC130483BA
- GSC130483BB
- GSC130483CA
- GSC130483CB
GSC130591
- GSC130591AA
GSC130593
- GSC130593AA
GSC130601
- GSC130601CA
- GSC130601CB
- GSC130601DA
- GSC130601DB
GSC130603
- GSC130603BA
- GSC130603BB
- GSC130603CA
- GSC130603CB
GSH130361
- GSH130361CB
- GSH130361CC
- GSH130361CD
GSH130363
- GSH130363AF
- GSH130363AG
GSH130421
- GSH130421AG
- GSH130421BA
- GSH130421BB
GSH130481
- GSH130481AF
- GSH130481BA
- GSH130481BB
GSX130361
- GSX130361DA
- GSX130361EA
- GSX130361EB
GSX130421
- GSX130421BB
- GSX130421BC
GSX130481
- GSX130481BB
- GSX130481BC
GSX130483
- GSX130483AB
- GSX130483AC
GSX130601
- GSX130601BA
- GSX130601BB
GSX130603
- GSX130603AA
GSZ130361
- GSZ130361BC
- GSZ130361BD
GSZ130363
- GSZ130363AC
- GSZ130363AD
GSZ130371
- GSZ130371AA
- GSZ130371AB
GSZ130421
- GSZ130421AE
- GSZ130421AF
GSZ130481
- GSZ130481AE
- GSZ130481AF
GSZ130483
- GSZ130483AC
- GSZ130483AD
VSC130421
- VSC130421AA
VSX130361
- VSX130361DA
- VSX130361EA
- VSX130361EB
VSX130421
- VSX130421AB
- VSX130421AC
- VSX130421BA
VSX130481
- VSX130481AB
- VSX130481AC
- VSX130481BA
VSX130601
- VSX130601BA
- VSX130601BB
VSZ130361
- VSZ130361BC
- VSZ130361BD
VSZ130421
- VSZ130421AD
- VSZ130421AF
VSZ130481
- VSZ130481AD
- VSZ130481AE
WAC4360A
- WAC4360ABA

condensing unit fan motor,

hvac condenser motor,

condenser cooling fan
