| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-375-8A60-CJD |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

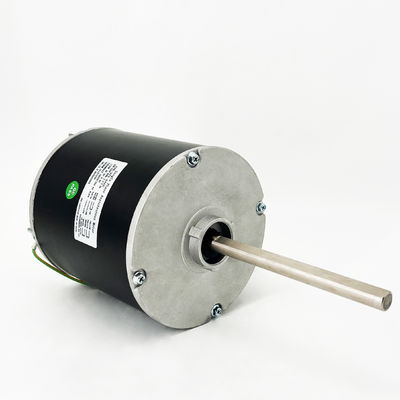

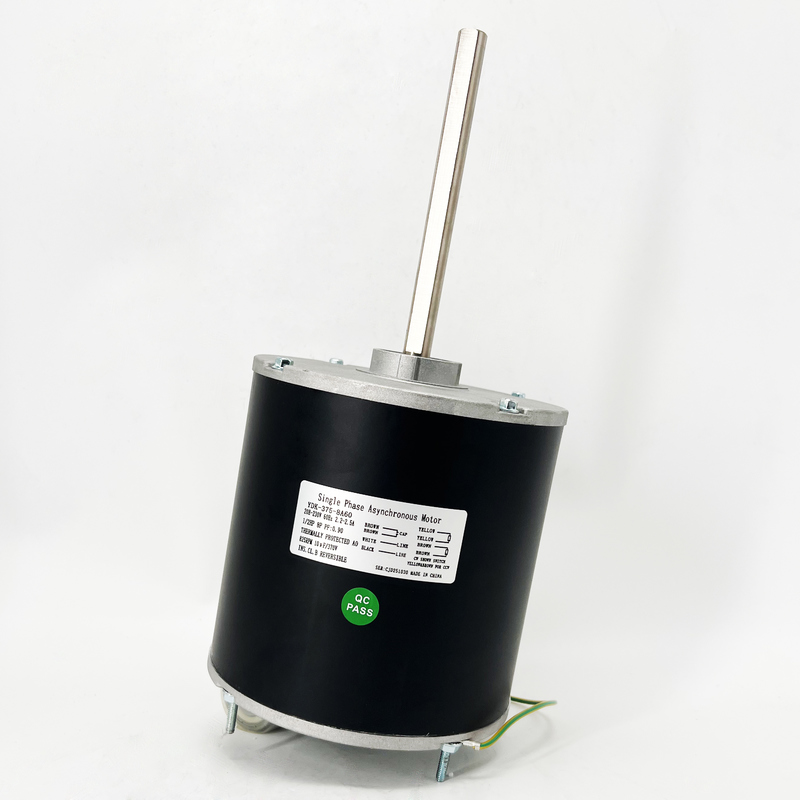

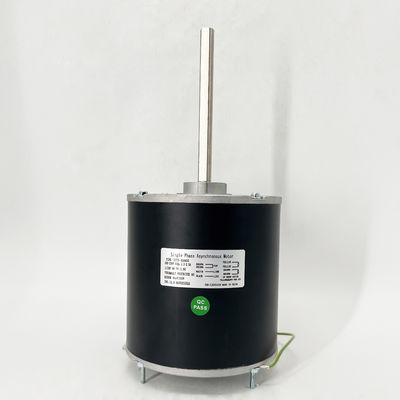

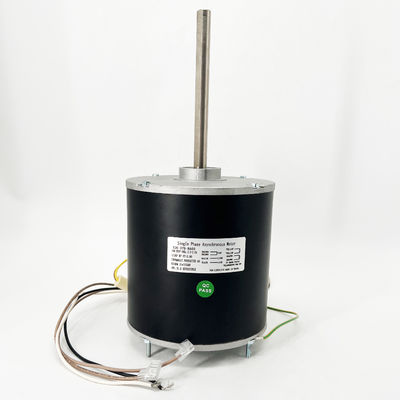

| Product: | Condenser Fan Motor | Frame: | 143mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 2.2-2.5A |
| Phase: | Single Phase | Output HP: | 1/2HP 375W |
| Shaft Flat: | One Flat | Speed: | 825RPM |
| Mounting Orientation: | All Angle | Capacitor: | 10μF/370V |
| Insulation Class: | Class B | Pole: | 8P |
| Rotation: | CW-CCW | PF: | 0.90 |
| Bearings: | Ball Bearing | Max. Ambient Temperature: | 40℃/104℉ |
| Shaft Diameter: | 12.7mm/0.5" | Shaft Length: | 153mm/6.02" |
| Flat Length: | 137mm/5.39" | Lead Length: | 900mm/35.43" |
| Motor Shell Length: | 142mm/5.59" | Screw Length: | 15mm/0.59" |
