| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | TZS-375-10A-SPT |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

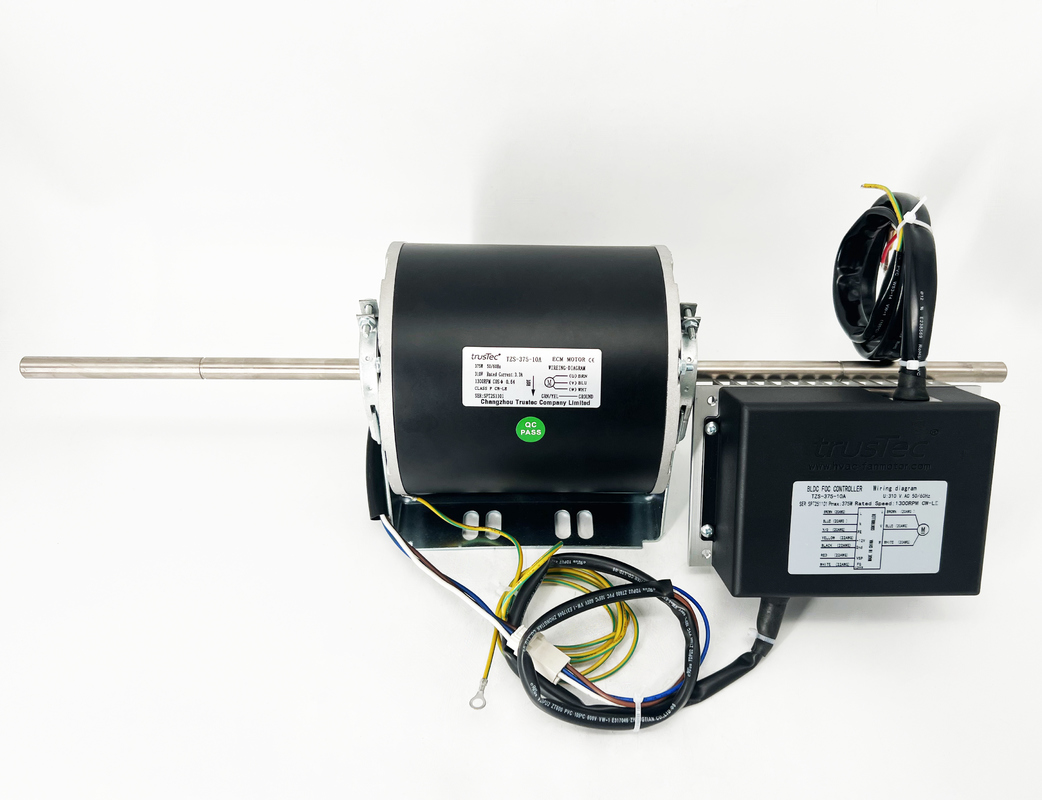

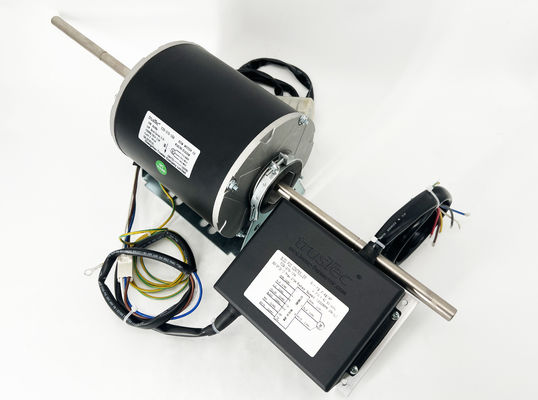

| Product: | EC Fan Coil Unit Motor | Output Power: | 375W 1/2HP |
|---|---|---|---|
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Voltage: | 310V |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Supply Frequency: | 50/60HZ |
| Phase: | Single Phase | Current: | 0.64A |
| Mounting: | Bracket | Speed: | 1300RPM |
| Bearings: | Ball Bearing | Poles: | 10P |
| Mounting Orientation: | All Angle | Flat Length: | 70mm/2.76" |
| Control Mode: | VSP(2-9V) | Motor Shell Length: | 165mm/6.50" |
| Insulation Class: | Class F | Max. Ambient Temperature: | 70℃/158℉ |
| Rotation: | CW(LE) | Shaft Length: | 200mm/7.87" |
| Shaft Diameter: | 12.7mm/0.5" | Lead Length: | 1300mm/51.18" |
