| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | TZD-600-10A-TVM |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

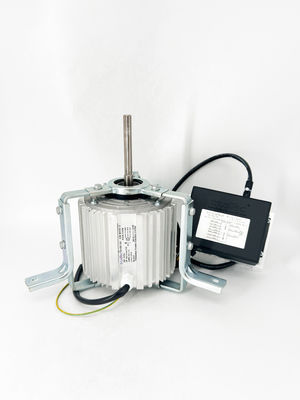

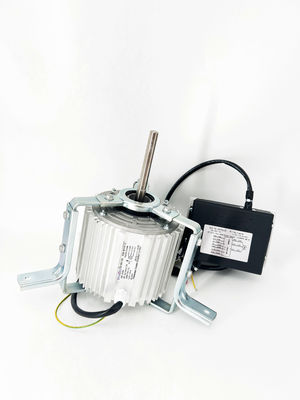

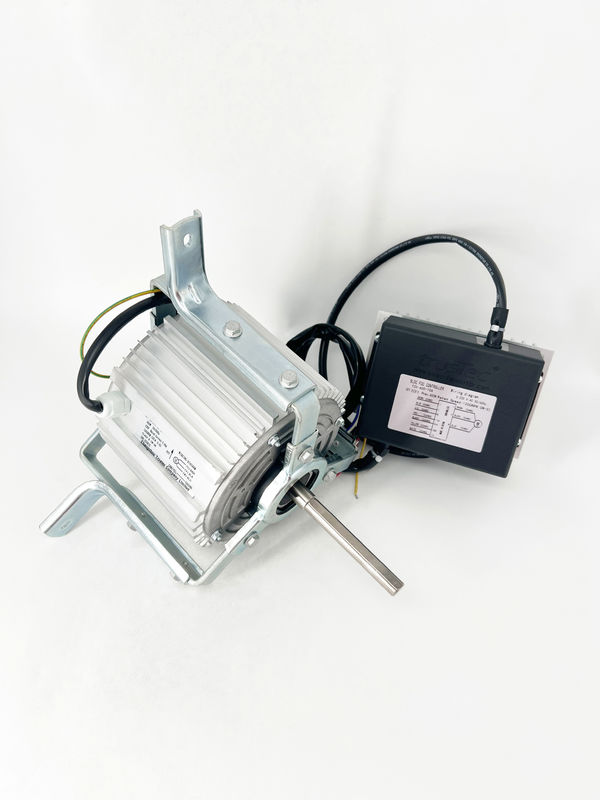

| Product: | ECM Fan Motor | Frame: | 150.5mm |
|---|---|---|---|
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Voltage: | 230V |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Supply Frequency: | 50/60HZ |
| Phase: | Single Phase | Current: | 5.06A |
| Mounting: | Bracket | Output Power: | 600W |
| Bearings: | Ball Bearing | Speed: | 1200RPM |
| Mounting Orientation: | All Angle | Poles: | 10P |
| Insulation Class: | Class B | Shaft Length: | 101mm/3.98" |
| Rotation: | CW-SE | Max. Ambient Temperature: | 40℃/104℉ |
| Shaft Diameter: | 12.7mm/0.5" | Lead Length: | 700mm/27.56" |
| Motor Shell Length: | 170mm/6.7" | Flat Length: | 90mm/3.54" |
