TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-150-6A61 (TUM-127S)-DNW |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

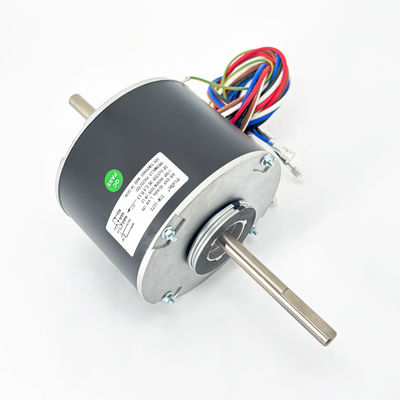

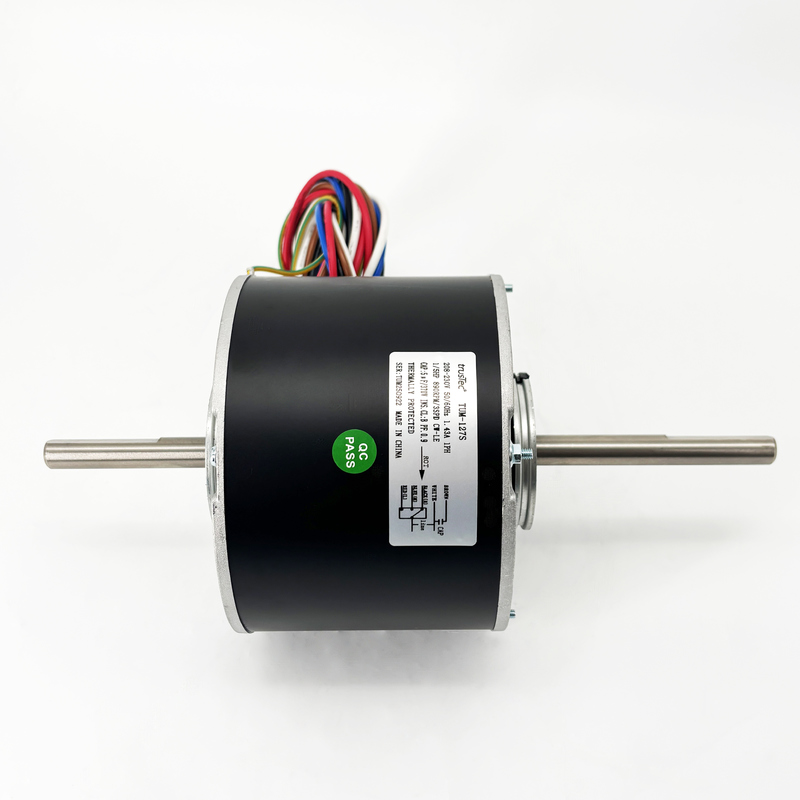

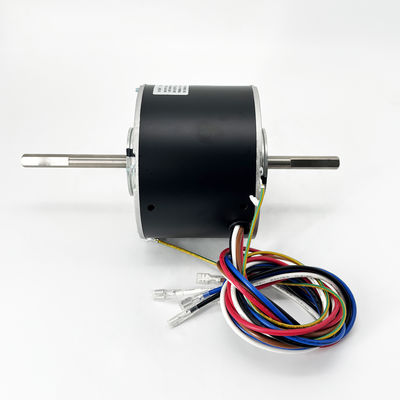

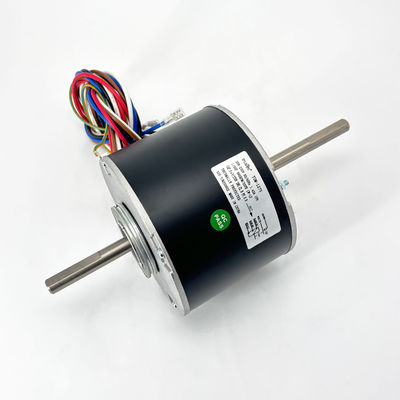

| Product: | AC Fan Coil Unit Motor | Frame: | 142mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 208-230V |
| Enclosure Type: | OAO(Open Air Over) | Supply Frequency: | 50/60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 1.43A |
| Phase: | Single Phase | Output HP: | 150W |
| Shaft Flat: | One Flat | Speed: | 890RPM/3SPD |
| Mounting Orientation: | All Angle | Capacitor: | 5.0μF/370V |
| Insulation Class: | Class B | Pole: | 6P |
| Bearings: | Ball Bearing | Shaft Diameter: | 0.5"/12.7mm |
| Rotation: | CW-LE | PF: | 0.9 |
| Shaft Length: | 100mm、67.2mm/3.94"、 2.65" | Flat Length: | 43、45mm/1.69"、1.77" |
| Max. Ambient Temperature: | 40℃/104℉ | Lead Length: | 1120mm/44.09" |
| Motor Shell Length: | 103mm/4.06" |
