TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:

|
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-90-6B60-CHG |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

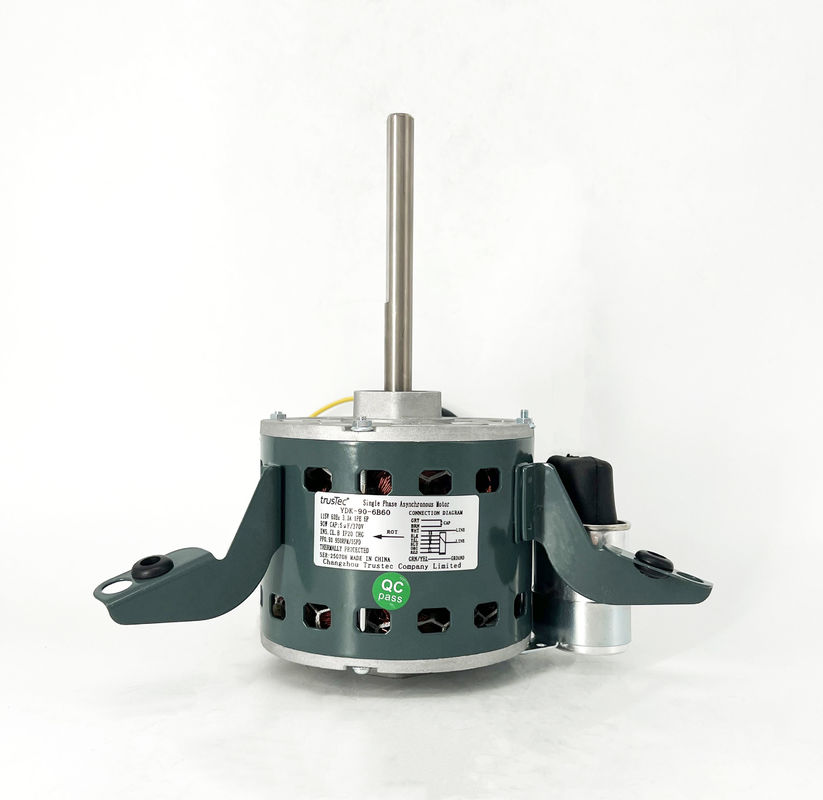

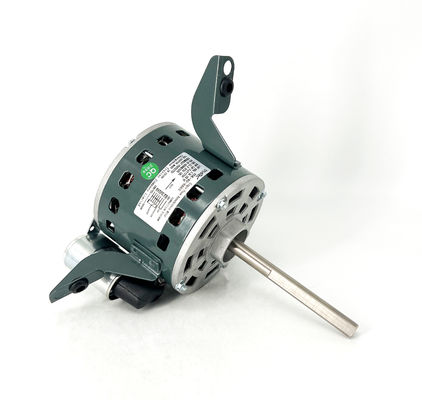

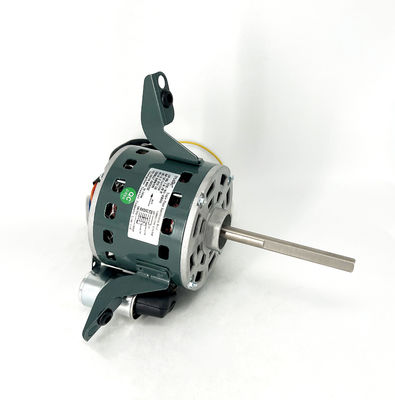

| Product: | AC Fan Coil Unit Motor | Frame: | 5.61"/142.39mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 115V |
| Enclosure Type: | OAO(Open Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 3.0A |
| Phase: | Single Phase | Output HP: | 90W |
| Shaft Flat: | One Flat | Speed: | 950RPM/5SPD |
| Mounting Orientation: | All Angle | Capacitor: | 5.0μF/370V |
| Insulation Class: | Class B | Pole: | 6P |
| Bearings: | Ball Bearing | Shaft Diameter: | 0.5"/12.7mm |
| PF: | 0.9 | Shaft Length: | 4.0"/101.6mm |
| Rotation: | CW | Flat Length: | 2.5"/63.5mm |
| Max. Ambient Temperature: | 40℃/104℉ | Motor Shell Length: | 4.81"/122.17mm |
| Highlight: | 90W Fan Coil Motor,950RPM Fan Coil Motor,115V Fan Coil Motor |
||
Contact Person: Selena Chai
Tel: +86-13961191626
Fax: 86-519-85109398
