| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YSK-160-6A60-DNW |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

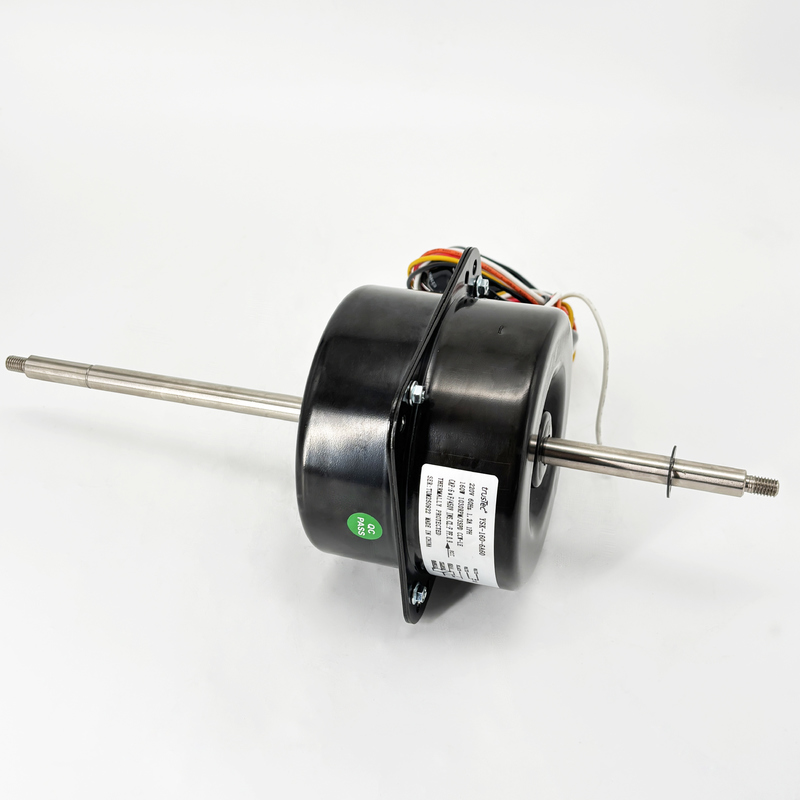

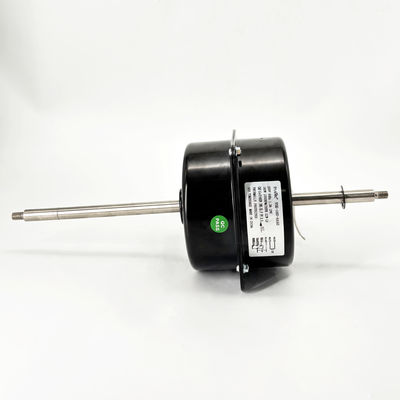

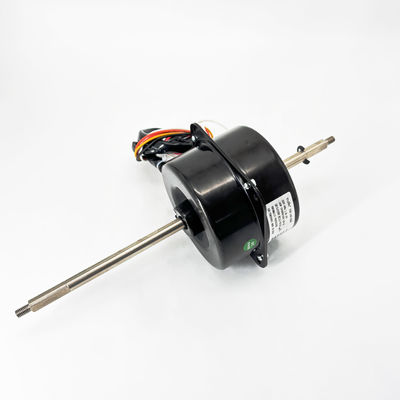

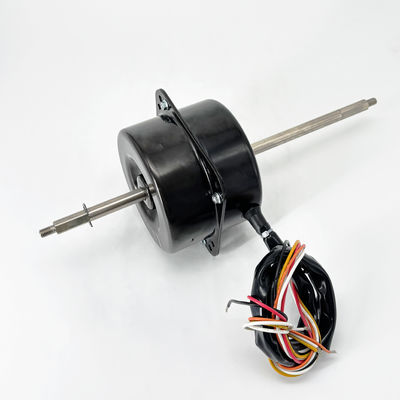

| Product: | AC Fan Coil Unit Motor | Frame: | 143mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 1.2A |
| Phase: | Single Phase | Output HP: | 160W |
| Shaft Flat: | One Flat | Speed: | 1030RPM/3SPD |
| Mounting Orientation: | All Angle | Capacitor: | 6.0μF/450V |
| Insulation Class: | Class F | Pole: | 6P |
| Bearings: | Ball Bearing | Shaft Diameter: | 12mm/0.47" |
| Rotation: | CW-LE | PF: | 0.9 |
| Shaft Length: | 177mm/6.97"、94mm/3.70" | Flat Length: | 35mm/1.38"、28.5mm/1.12" |
| Max. Ambient Temperature: | 70℃/158℉ | Lead Length: | 700mm/27.56" |
| Motor Shell Length: | 93mm/3.66" |
