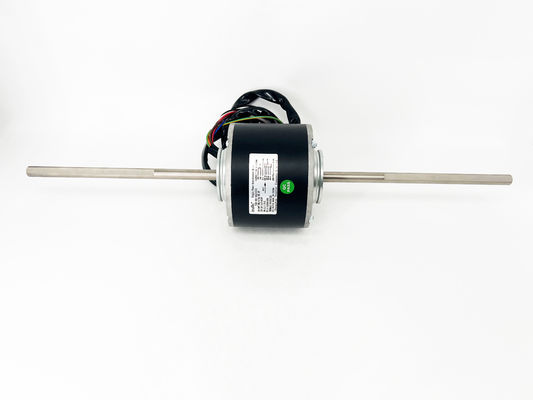

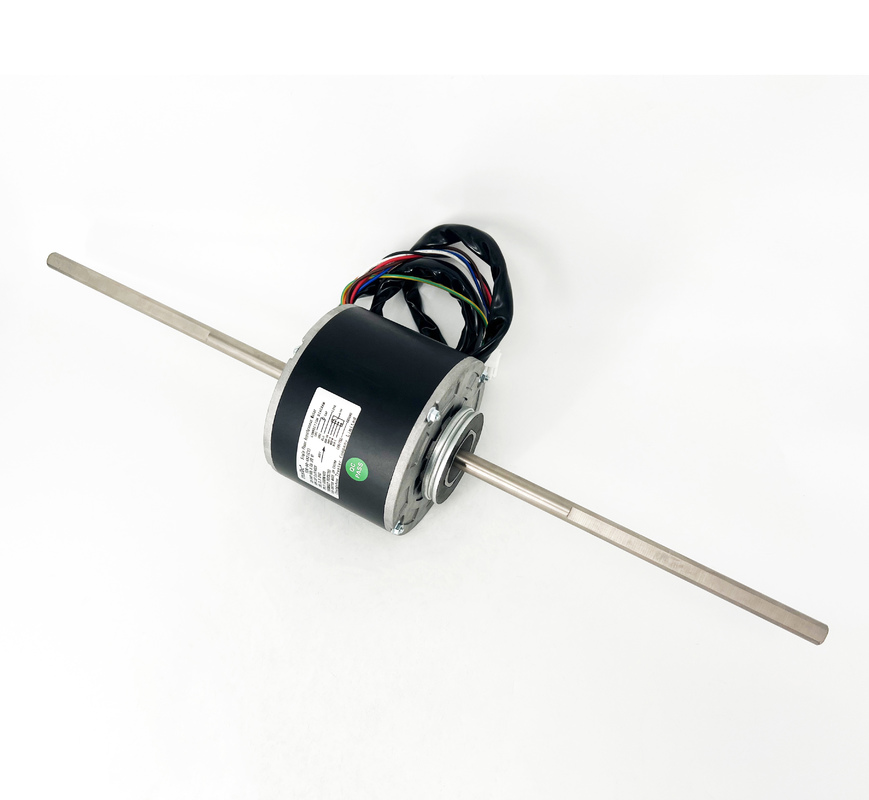

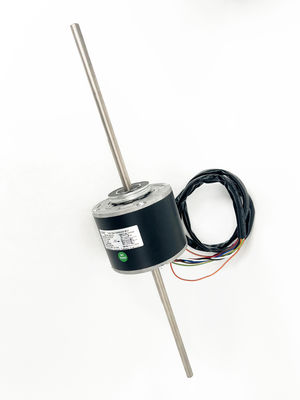

Name: Fan Coil Unit Motor AC Motor with 123mm Frame 570mm Shaft Length and 12.7mm Shaft Diameter for Air Conditioner
Brand: Changzhou Trustec Company Limited
SKU: YSK-90-4A2-SGR
Price: 14.70 USD
Availability: InStock

Home Products Air Conditioner Fan Motor

Fan Coil Unit Motor AC Motor with 123mm Frame 570mm Shaft Length and 12.7mm Shaft Diameter for Air Conditioner

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	trusTec
Model Number:	YSK-90-4A2-SGR

Payment & Shipping Terms:

Minimum Order Quantity:	200
Price:	$14.70-15.50

Contact Now

Detailed Product Description

AC Voltage:	220-240V	Rated Power:	90W
Rated Speed:	1330RPM/4SPD	Frame Size:	123mm
Motor Type:	Permanent Split Capacitor	Enclosure Type:	TEAO
Phase:	Single Phase	Shaft Diameter:	12.7mm
Shaft Length:	570mm	Motor Shell Length:	94mm
Supply Frequency:	50Hz	Current:	0.72A
Pole:	4P	IP Rating:	42
Capacitor:	5uF/450V
Highlight:	123mm Frame Fan Coil Unit Motor , 570mm Shaft Length AC Motor , 12.7mm Shaft Diameter Air Conditioner Fan Motor

Fan Coil Unit AC Motor for Air Conditioner - 90W 1330RPM/4SPD 220-240V 50HZ

Features and Specifications

Product	Fan Coil Unit Motor
Motor Type	Permanent Split Capacitor
Enclosure Type	TEAO (Totally Enclosed Air Over)
Thermal Overload	Equipped With An Automatic Thermal Overload
Phase	Single Phase
Shaft Flats	One Flat
Mounting Orientation	All Angle
Bearings	Ball Bearing
Mounting	Stud Mounting All Angel
Max. Ambient Temperature	40℃/104℉
Frame	123mm
Supply Voltage	220-240V
Supply Frequency	50Hz
Current	0.72A
Output HP	90W
Rated Speed	1330RPM/4SPD
Pole	4P
IP	42
Capacitor	5uF/450V
Insulation Class	Class B
Rotation	CW-LE
Shaft Length	22.4" / 570mm
Shaft Diameter	0.5" / 12.7mm
Motor Shell Length	3.7" / 94mm
Lead Length	51.18" / 1300mm
