TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | YDK-70-4A-SGR |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

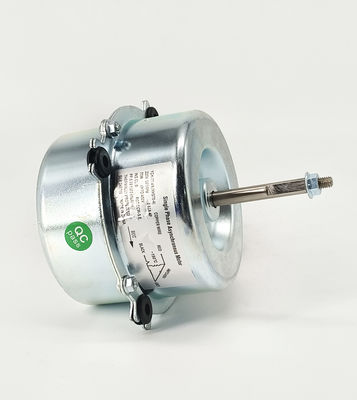

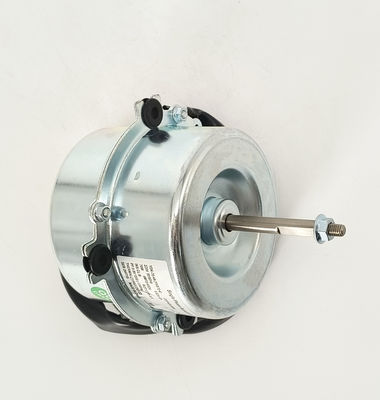

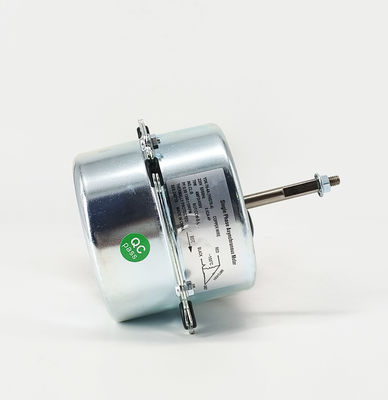

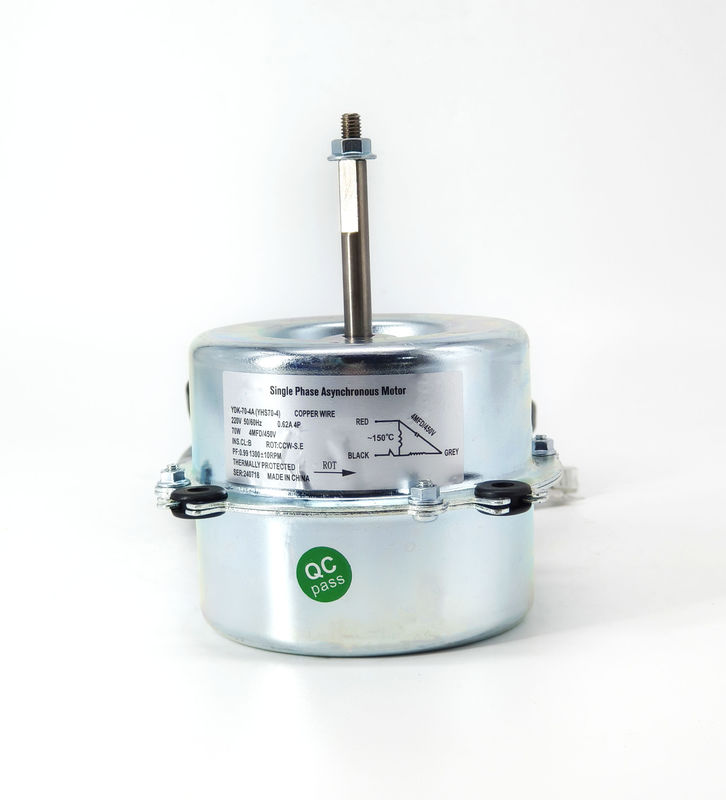

| Product: | Outdoor Fan Motor | Frame Size: | 95mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 50/60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.62A |
| Phase: | Single Phase | Output HP: | 70W |
| Shaft Flats: | One Flat | Rated Speed: | 1300RPM |
| Bearings: | Ball Bearing | Pole: | 4P |
| Mounting: | Stud Mounting All Angel | Capacitor: | 4.0MFD/450V |
| Insulation Class: | Class B | Shaft Diameter: | 0.315" /8mm |
| Rotation: | CCW-SE | Shaft Length: | 2.32" /59mm |
| Max. Ambient Temperature: | 40℃/104℉ | Flat Length: | 0.81" /20.5mm |
| PF: | 0.99 | Lead Length: | 59.05" /1500mm |
| Housing Length: | 3.31" /84mm | ||
| Highlight: | 220V Outdoor AC Motor,Outdoor 70W AC Motor,1300RPM Outdoor AC Motor |
||
