TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-SA54B-DNW |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

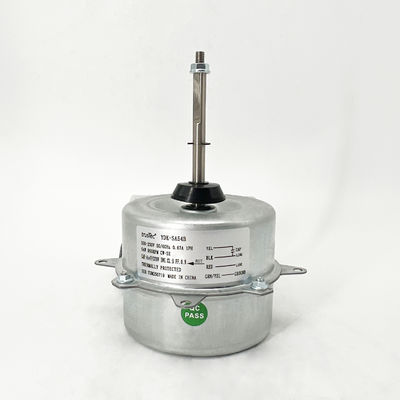

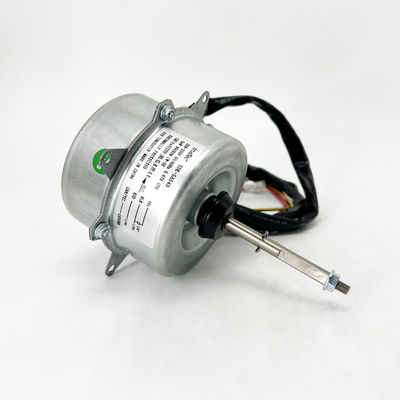

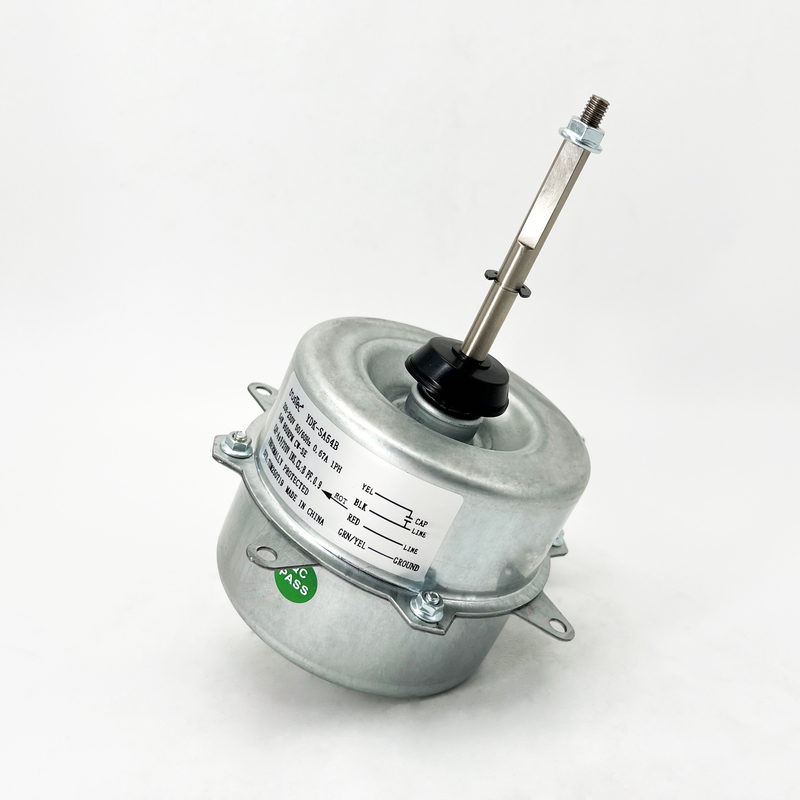

| Product: | Outdoor Fan Motor | Supply Voltage: | 208-230V |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Frequency: | 50/60Hz |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Current: | 0.67A |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Output HP: | 54W |
| Phase: | Single Phase | Speed: | 950RPM |
| Shaft Flat: | One Flat | Capacitor: | 4.0μF/370V |
| Mounting Orientation: | All Angle | Pole: | 6P |
| Insulation Class: | Class B | PF: | 0.9 |
| Rotation: | CW-SE | Max. Ambient Temperature: | 40℃/104℉ |
| Bearings: | Ball Bearing |
Contact Person: Selena Chai
Tel: +86-13961191626
Fax: 86-519-85109398
