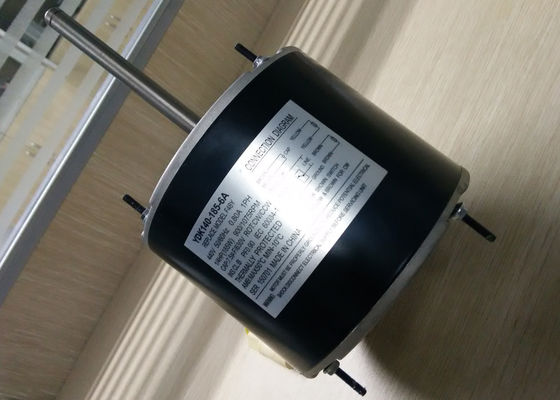

1/2HP Condenser Fan Motor - 230V 60HZ 1075RPM

1/2HP Condenser Fan Motor - 230V 60HZ 1075RPM

  • 1/2HP Condenser Fan Motor - 230V 60HZ 1075RPM
  • 1/2HP Condenser Fan Motor - 230V 60HZ 1075RPM
  • 1/2HP Condenser Fan Motor - 230V 60HZ 1075RPM
1/2HP Condenser Fan Motor - 230V 60HZ 1075RPM
Product Details:
Place of Origin: China
Brand Name: trusTec
Certification: UL Approval E529388,CE approval
Model Number: YDK-375-4Ax
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Voltage: 208-230V Frequency: 60Hz
Power: 375W 1/2HP Speed: 825/1075/1550RPM
Bearing: Ball Bearing Insulation Class: B
Product Name: Condenser Fan Motor ODM Solutions: Customized AC And EC Motors
ODM Solutions: ODM Solutions: Customized AC And EC Motors
Highlight:

condensing unit fan motor

,

hvac condenser motor

Key Features of Condenser Fan Motors - 1075RPM Frame 48 (5-5/8")

  • Condenser Fan motor
  • PCS Pernanent Split Capacitor Motor Type
  • 1/6,1/5,1/4,1/3,1/2,or 3/4 Rated Horsepower
  • Supply Voltage 115 or 208/230 VAC
  • Supply Frequency 60 hertz
  • Insulation Class B
  • 825 or 1075rpm Rated Speed
  • Run Capacitor 370 VAC -5 to 20 μF
  • Temperature Rating 60℃ / 140℉
  • Equipped with an automatic thermal overload
  • Current 1.2 to 8.1amps at rated speed and horsepower



  • Totally Enclosed Air Over
  • Frame 48 (5-5/8")
  • Ball Bearing
  • Shaft Diameter 1/2"
  • Shaft Length 5.5''
  • One Shaft Flat
  • Rotation CW/CCW(electrically reversible)
  • Lead Wire Length 26''
  • Lead Wire Gauge #18 AWG
  • Extended Clamp bolts or belly band Mounting
  • UL Approval E529388







1/2HP Condenser Fan Motor - 230V 60HZ 1075RPM



Our services:



1. In reply to your inquiry within 12 hours. Because we are valuing every customer.
2. We cooperate with customer to design and develop new product. Provide OEM.
3. We provide quality after-sales service.
4. 15-30 days leading time.
5. We are willing to help you arrange delivery, testing or other requests.



Our company:



1. As a professional motor manufacturer, we are specialized in designing and producing all kinds of motors for room, commercial and central air conditioners.

2. Our main products are fan coil unit motors, motors for split, cabinet, window air-conditioner, high static pressure motors, ceiling air-conditioner motors, air cooling motors, single and three phase motors, kinds of pump motors, PG motor and DC brushless motors.

3. Our products have been approved by RoHS, CCC, CE and UL certificates, and the products have been being exported to the main market such as North America, Europe and Mid-east.



FAQ:



Q1- What is the warranty of the motors?
The warranty is 18 months on the production date, under the warranty we will afford the shipping cost to send the replacement.

Q2- Can you design the motor according to the different request?
Yes, we can offer the ODM.

Q3- Do you have distributors overseas?
Yes. We have distributors in USA, Holland, Spain, Turkey, Sudan, UAE, KSA...

Q4- How to get the accurate offer?
The precise price will be quoted after checking the specification and mounting dimension of the motor.
