Place of Origin: | Changzhou, China |
Brand Name: | trusTec |
Certification: | CE、High-tech Enterprise Certificate、ISO9000 Certificate 2023 |
Model Number: | TRZ120-200-8 |
Minimum Order Quantity: | 200 pcs |
---|---|
Packaging Details: | Standard carton packing, foam board inside for protection. |
Delivery Time: | 15 days fresh products after order confirmation. |
Payment Terms: | T/T, L/C |
Supply Ability: | 100,000 pcs per month |

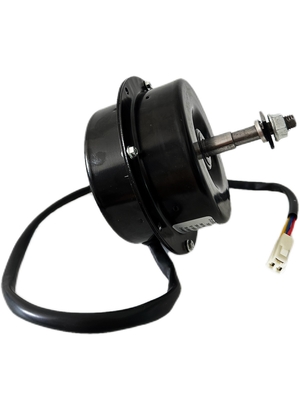

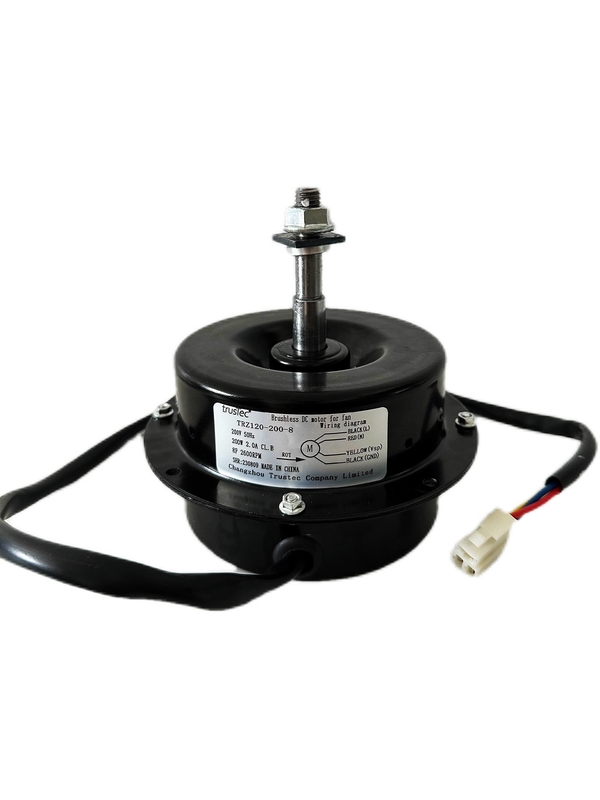

Product Name: | 200W 8P 2600RPM High Torque BLDC Fan Motor For Air Conditioner | Power: | 200W |
---|---|---|---|
Speed: | 2600RPM | Pole: | 8P |
High Light: | Air Conditioner BLDC Fan Motor,2600RPM BLDC Fan Motor,200W Brushless DC Fan Motor |
Product Name | Brushless DC Motor | Voltage | 200V |
---|---|---|---|
Frequency | 50Hz | Output Power | 200W |
Pole | 8P | AMPS | 2.0A |
Speed | 2600RPM | Rotation | CW(LE) |
Insulation Class | Class B |
Operating Type |
S1 |
Other protection | THERMALLY PROTECTED |
Key Parameters
Model |
Power /W |
Frequency /Hz |
Speed /RPM |
Rated Current /A |
Voltage /V |
TRZ120-200-8 | 200W | 50 | 2600 | 2.0 | 200 |
Ps:all dimension can be customized according to customer requirement.
Product Features
1. Use NSK low noise high quality rolling bearing.
2. Small vibration,high efficiency .
3. Low temperature ,small vibration.
4. Advanced manufacturing equipment, skilled craftwork, high level of automatization, high quality insurance.
Product Applications
1. Air conditioner indoor / outdoor unit.
2. Air Purifiers, Air refresher.
3. Range hood, sewer grinder, dehumidifier, medical equipment, special blender etc.
FAQ
Q1- What is the warranty of the motors?
The warranty is 36 months on the production date, under the warranty we will afford the shipping cost to send the replacement.
Q2- What is the application of the motors?
All the motors are widely used in HVC&R line.
Q3- Can you design the motor according to the different request?
Yes, we can offer the ODM.
Q4- Do you have distributors overseas?
Yes. We have distributors in USA, Holland, Spain, Turkey, Sudan, UAE, KSA...
Q5- What is the most important advantage for the export?
Besides the competitive price with the good quality, the critical point is the quick response, the efficient export team and the fast delivery time.
Q6- How to get the accurate offer?
The precise price will be quoted after checking the specification and mounting dimension of the motor.
