TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK120-95-6-EGK |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

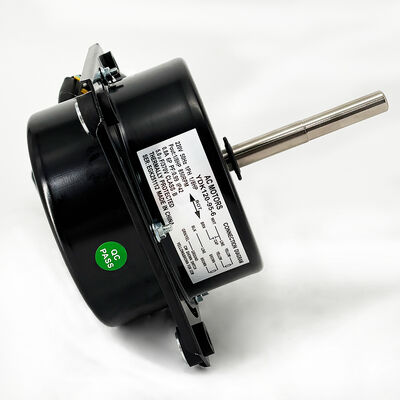

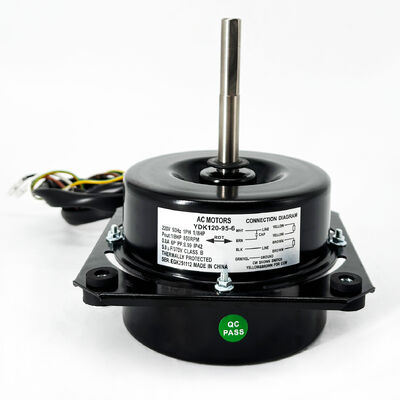

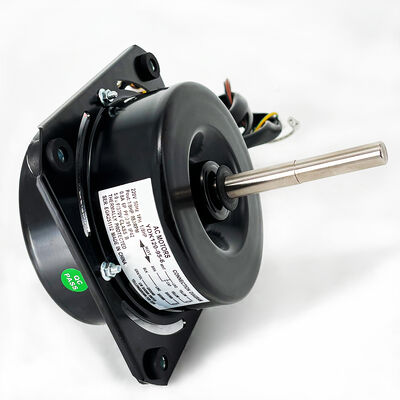

| Product: | AC Condenser Fan Motor | Frame: | 42 Frame |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 50Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.8A |
| Phase: | Single Phase | Output HP: | 95W 1/8HP |
| Shaft Flat: | One Flat | Speed: | 850RPM |
| Mounting Orientation: | All Angle | Capacitor: | 5uF/370V |
| Insulation Class: | Class B | Max. Ambient Temperature: | 40℃/104℉ |
| Bearings: | Ball Bearing | Pole: | 6P |
| Rotation: | CW/CCW | PF: | 0.99 |
| Shaft Diameter: | 12mm/0.47" | Shaft Length: | 90mm/3.54" |
| Flat Length: | 45mm/1.77" | Lead Length: | 1400mm/55.12" |
| Motor Shell Length: | 90mm/3.54" | Mounting Hole Spacing: | 174mm/ 6.85" |
