| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YSK120-75-4A-EGK |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

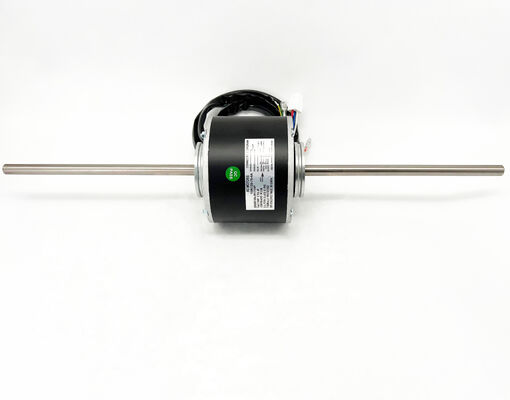

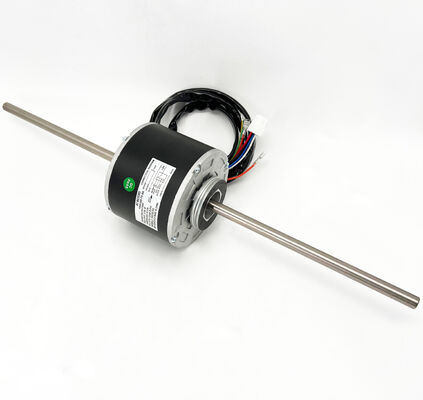

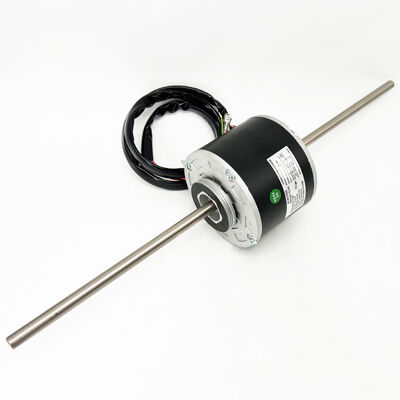

| Product: | AC Fan Coil Unit Motor | Frame: | 42 Frame |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220-240V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 50Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.75A |
| Phase: | Single Phase | Output HP: | 1/10HP 75W |
| Shaft Flat: | One Flat | Speed: | 1330RPM/4SPD |
| Mounting Orientation: | All Angle | Capacitor: | 5uF/370V |
| Insulation Class: | Class B | Pole: | 4P |
| Bearings: | Ball Bearing | Shaft Diameter: | 0.5"/12.7mm |
| Rotation: | CW-LE | PF: | 0.90 |
| Shaft Length: | 570mm/ 22.44" | Flat Length: | 120mm/ 4.72" |
| Max. Ambient Temperature: | 40℃/104℉ | Lead Length: | 1300mm/51.18" |
| Motor Shell Length: | 94mm/3.70" | ||
| Highlight: | AC fan coil unit motor,42 frame fan coil unit motor,1330RPM fan coil motor |
||
