TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YSK-120-4A2-EGK |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

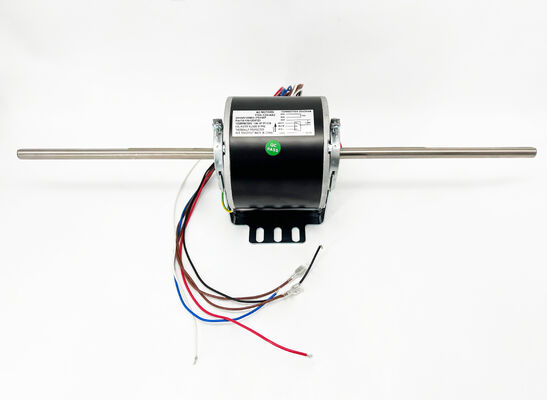

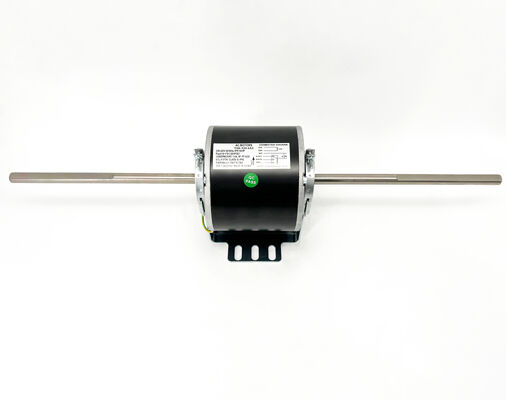

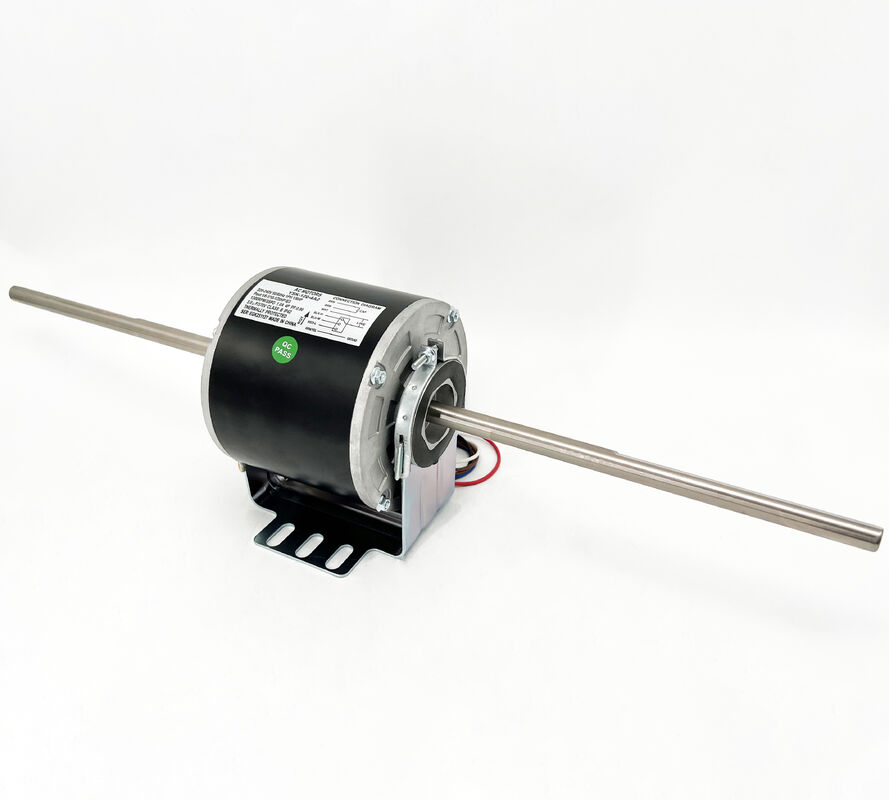

| Product: | AC Fan Coil Unit Motor | Frame: | 42 Frame |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220-240V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 50/60HZ |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 1.0A |
| Phase: | Single Phase | Output HP: | 120W 1/6HP |
| Shaft Flat: | One Flat | Speed: | 1330RPM/3SPD |
| Mounting Orientation: | All Angle | Capacitor: | 5uF/370V |
| Insulation Class: | Class B | Pole: | 4P |
| Bearings: | Ball Bearing | Shaft Diameter: | 0.5"/12.7mm |
| Rotation: | CW-LE | PF: | 0.90 |
| Shaft Length: | 570mm/ 22.44" | Flat Length: | 110mm/ 4.33 |
| Max. Ambient Temperature: | 40℃/104℉ | Lead Length: | 1300mm/51.18" |
| Motor Shell Length: | 103mm/4.06" |
Contact Person: Trustec Team
Tel: +86-13961191626
Fax: 86-519-85109398
