TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-150-6A54（YFK-150-6）-CJK |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

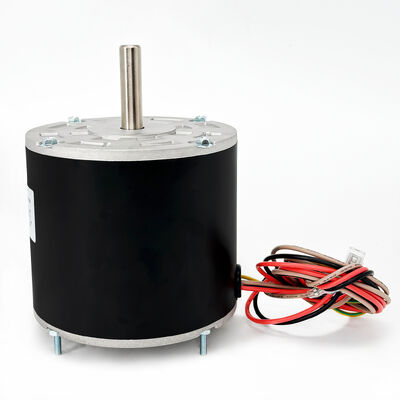

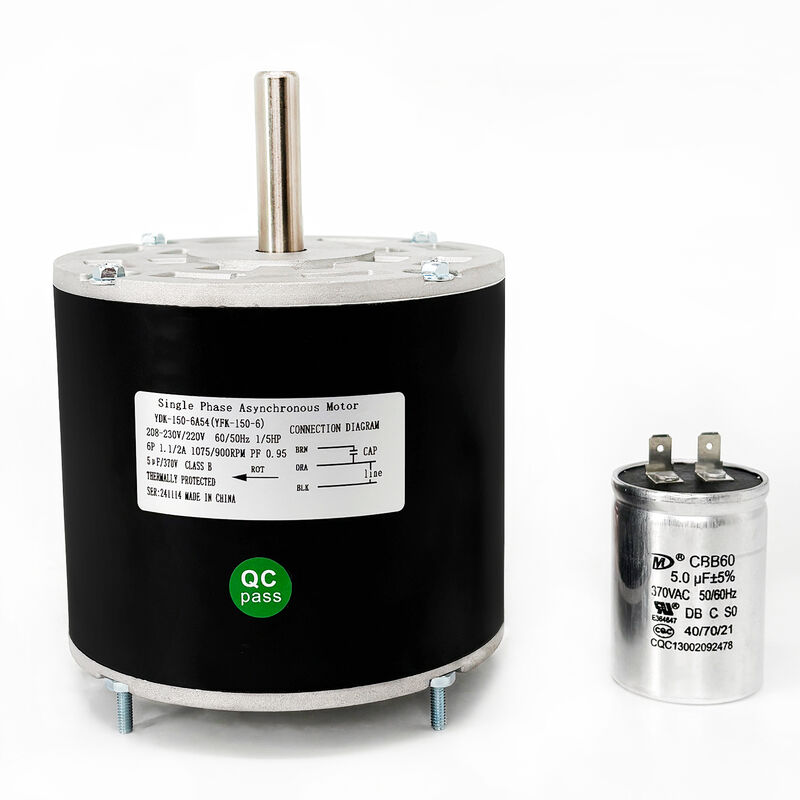

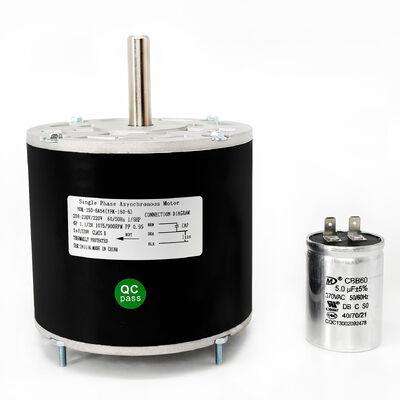

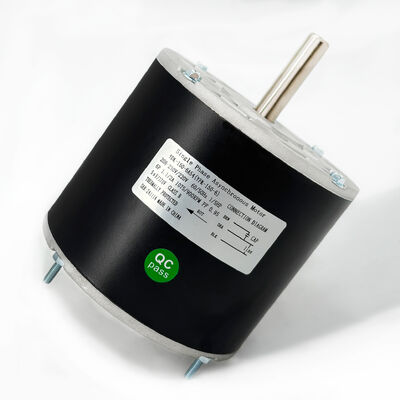

| Product: | Condenser Fan Motor | Frame: | 42 Frame |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Replacement Motor: | YFK-150-6 |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Voltage: | 208-230V |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Supply Frequency: | 60Hz |
| Phase: | Single Phase | Current: | 1.4A |
| Shaft Flat: | One Flat | Output HP: | 150W 1/5HP |
| Mounting Orientation: | All Angle | Speed: | 1075RPM |
| Bearings: | Ball Bearing | Capacitor: | 5μF/370V |
| Insulation Class: | Class B | Max. Ambient Temperature: | 40℃/104℉ |
| Rotation: | Reversible | Pole: | 6P |
| PF: | 0.96 | Shaft Diameter: | 12.7mm/0.5" |
| Shaft Length: | 47.5mm/1.87" | Flat Length: | 37.5mm/1.48" |
| Motor Shell Length: | 107mm/4.21" | Mounting Hole Spacing: | 115mm/4.53" |
| Lead Length: | 1000mm/39.37" | Screw Length: | 11mm/0.43" |
Contact Person: Trustec Team
Tel: +86-13961191626
Fax: 86-519-85109398
