| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-375-6A68-KSD |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

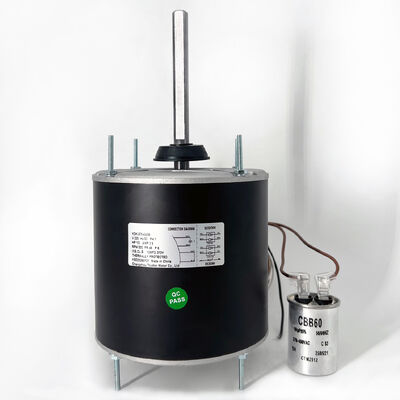

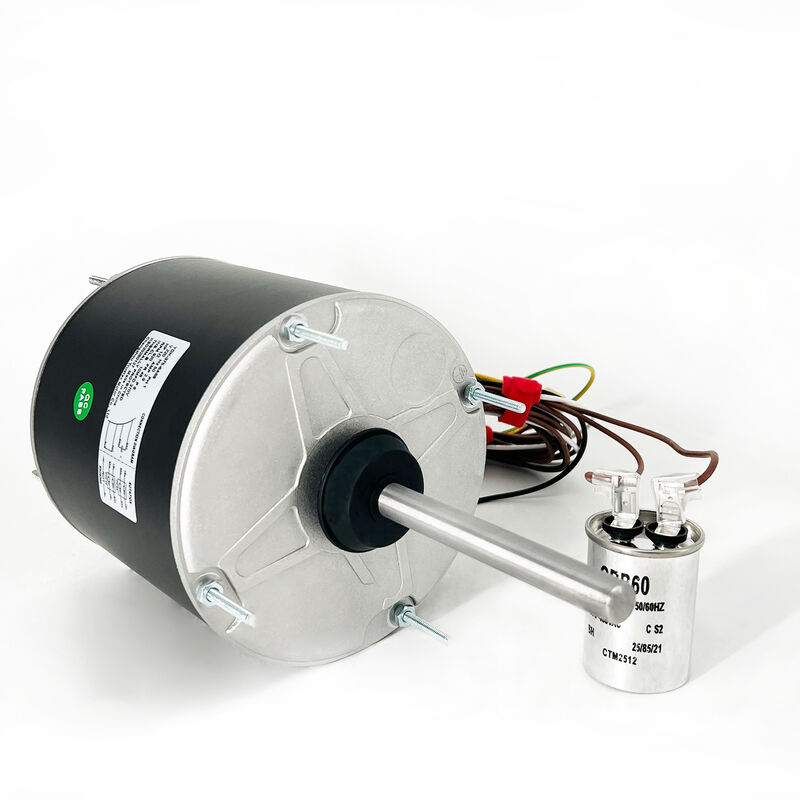

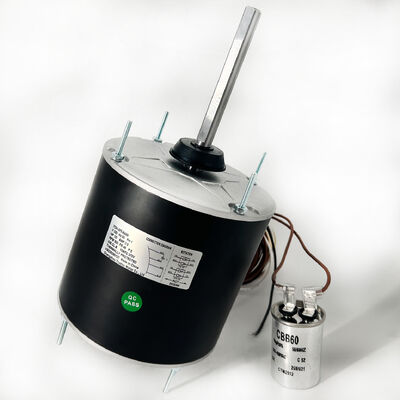

| Product: | Condenser Fan Motor | Frame: | 48 Frame |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 50Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 2.9A |
| Phase: | Single Phase | Output HP: | 375W 1/2HP |
| Shaft Flat: | One Flat | Speed: | 920RPM |
| Mounting Orientation: | All Angle | Capacitor: | 10μF/370V |
| Insulation Class: | Class B | Pole: | 6P |
| Bearings: | Ball Bearing | Shaft Diameter: | 0.5"/12.7mm |
| Rotation: | CW/CCW | PF: | 0.99 |
| Max. Ambient Temperature: | 40℃/104℉ | Lead Length: | 760mm/29.92" |
| Motor Shell Length: | 135mm/5.31" | Shaft Length: | 140mm/5.51" |
| Flat Length: | 101.6mm/4.00" | Screw Length: | 25.5mm/ 1.00" |
| Mounting Hole Spacing: | 132mm/5.20" |
