| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-185-6A64-KSD |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

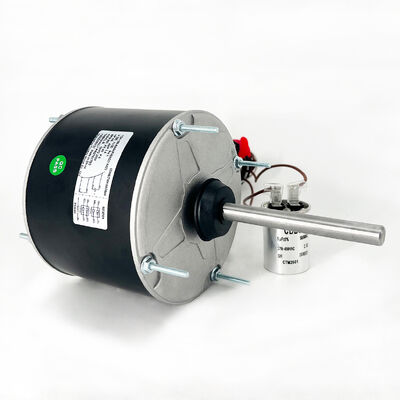

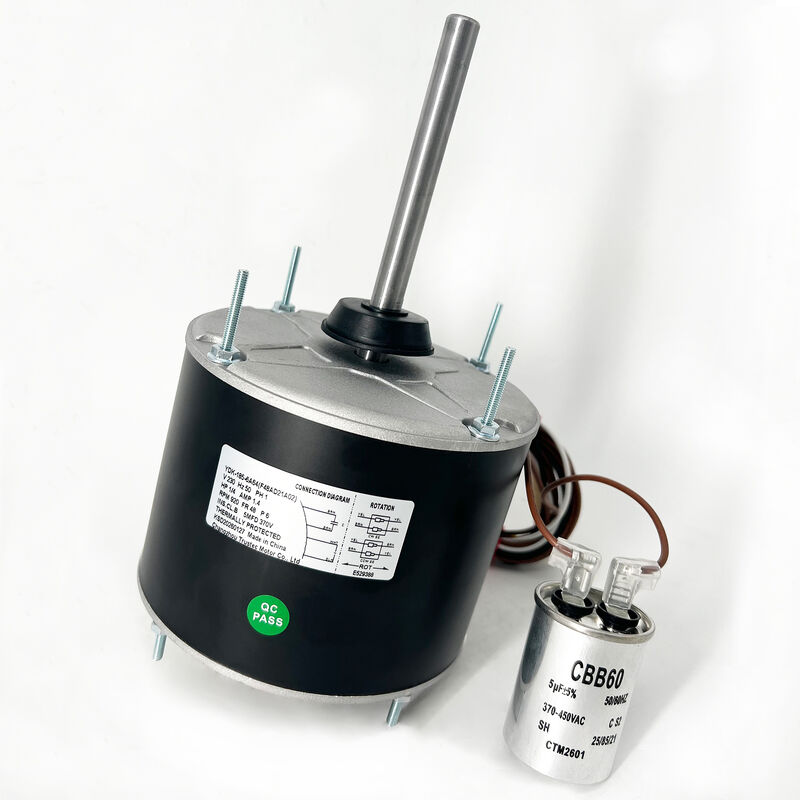

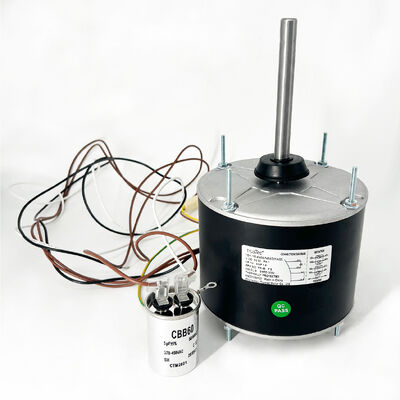

| Product: | Condenser Fan Motor | Frame: | 48 Frame |
|---|---|---|---|
| Replacement Motor: | F48AD21A02 | Supply Voltage: | 230V |
| Motor Type: | Permanent Split Capacitor | Supply Frequency: | 50Hz |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Current: | 1.2A |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Output HP: | 185W 1/4HP |
| Phase: | Single Phase | Speed: | 920RPM |
| Shaft Flat: | One Flat | Capacitor: | 5μF/370V |
| Mounting Orientation: | All Angle | Pole: | 6P |
| Insulation Class: | Class B | Shaft Diameter: | 0.5"/12.7mm |
| Bearings: | Ball Bearing | PF: | 0.99 |
| Rotation: | CW/CCW | Max. Ambient Temperature: | 40℃/104℉ |
| Lead Length: | 760mm/29.92" | Motor Shell Length: | 111mm/4.37" |
| Shaft Length: | 140mm/5.51" | Flat Length: | 101.6mm/4.00" |
| Screw Length: | 25.5mm/ 1.00" | Mounting Hole Spacing: | 132mm/5.20" |
