| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | CTM5-727 |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

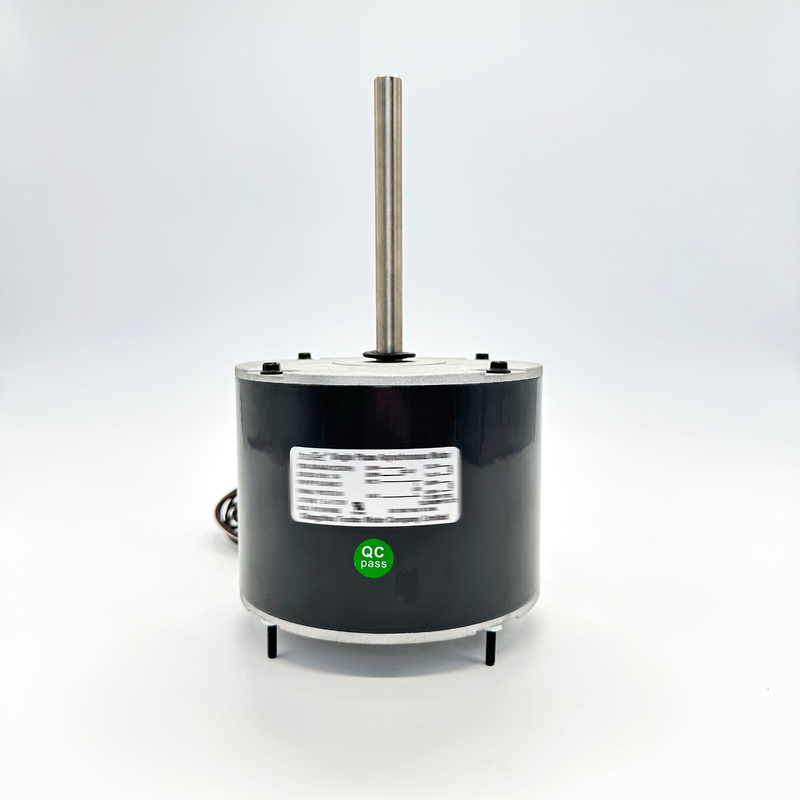

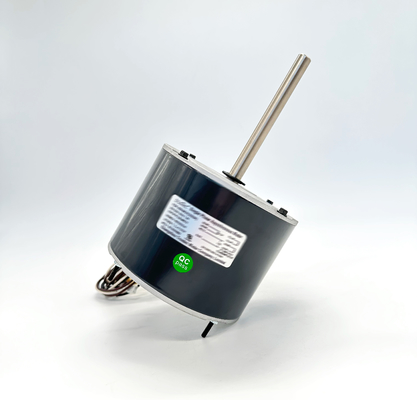

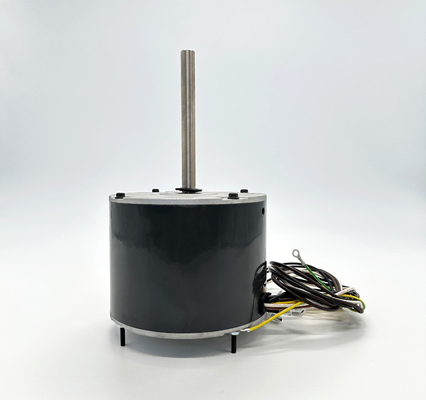

| Product: | Condenser Fan Motor | Frame: | Nema 48 |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Volatge: | 208-230V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 1.0A |
| Phase: | Single Phase | Output HP: | 1/6HP |
| Shaft Flats: | One Flat | Rated Speed: | 1075RPM |
| Mounting Orientation: | All Angle | Capacitor: | 5uF/370V |
| Drain Hole: | Opposite Shaft End | Insulation Class: | Class B |
| Mounting: | Stud Mounting All Angel | Shaft Length: | 5.5" |
| Bearings: | Ball Bearing | Shaft Diameter: | 1/2" |
| Max. Ambient Temperature: | 40℃/104℉ | Rotation: | Reversible |
| Highlight: | 1/6HP Condenser Fan Motor,5uF/370V Condenser Fan Motor,208-230V Condenser Fan Motor |
||
You can refer to the file for more motor models at CROSS REFERENCE TRUSTEC MOTOR.pdf
