TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | YS-750-6A |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

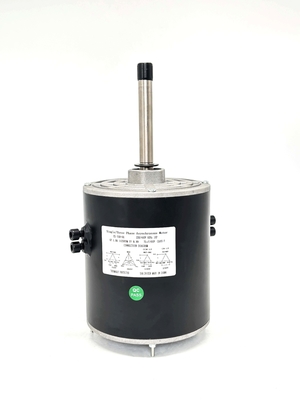

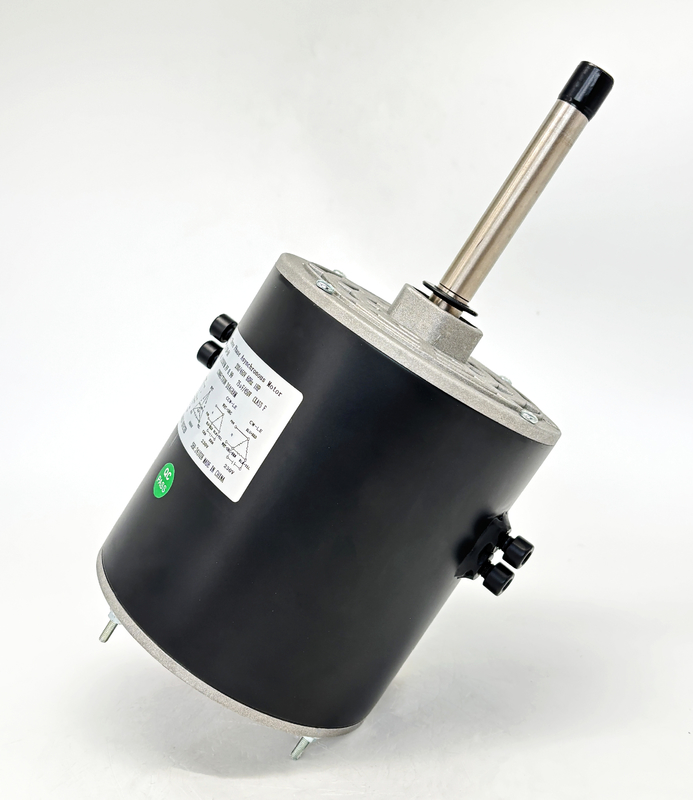

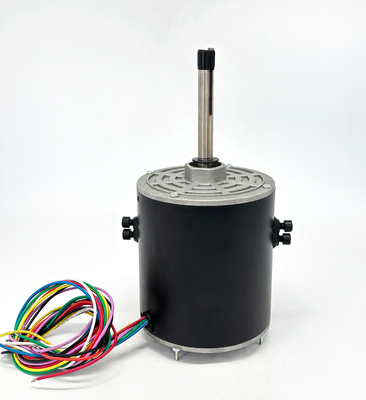

| Product: | Condenser Fan Motor | Frame: | 48 Frame |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 230/460V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 6.1/3.1A |
| Phase: | Single Phase | Output HP: | 1HP |
| Shaft Flats: | One Flat | Rated Speed: | 1125RPM |
| Mounting Orientation: | All Angel | Shaft Diameter: | 0.625" /15.875mm |
| Insulation Class: | Class F | Capacitor: | 75uF/450V |
| Mounting: | Stud Mounting All Angel | Lead Length: | 27.5" / 700mm |
| Bearings: | Ball Bearing | Shaft Length: | 5" / 127mm |
| Rotation: | Reversible | Max. Ambient Temperature: | 40℃/104℉ |
| Highlight: | 1HP Condenser Fan Motor,48 Frame Condenser Fan Motor,230/240V Condenser Fan Motor |
||
