TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | YDK-150-4A-VPL |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

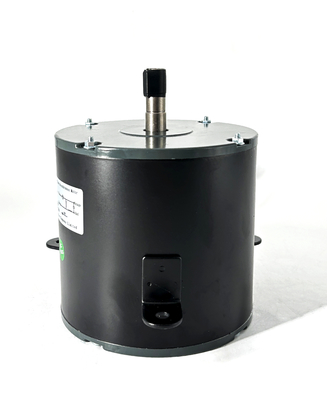

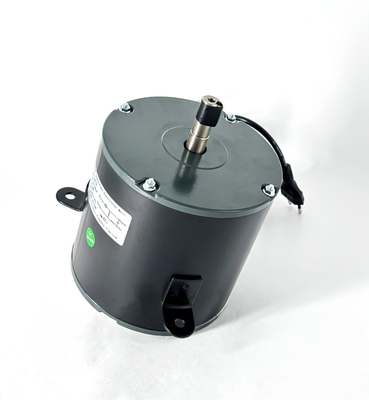

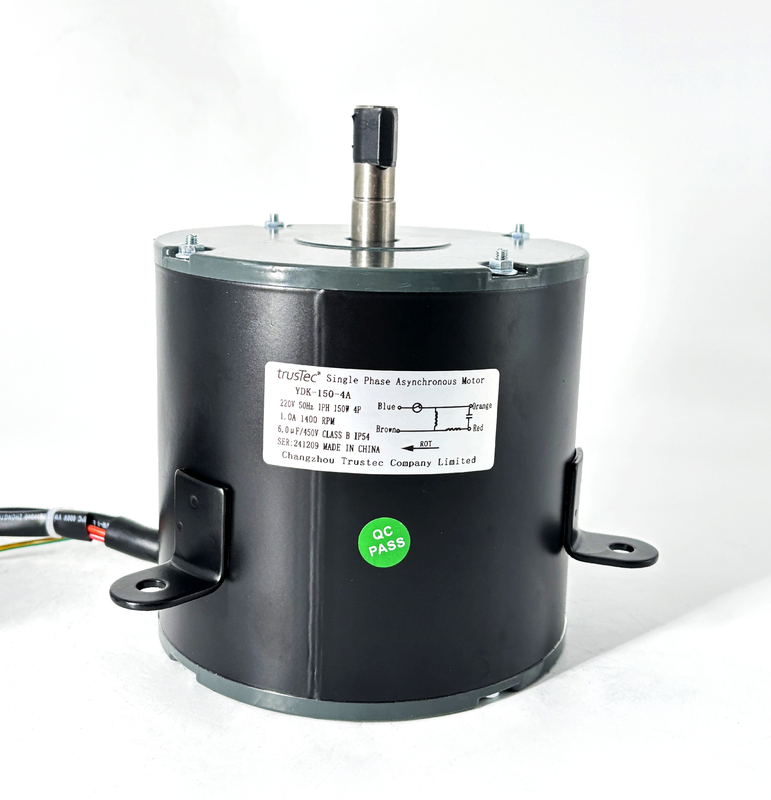

| Product: | Condenser Fan Motor | Frame: | Nema 48 |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220V |
| Enclosure Type: | TEAO (Totally Enclosed Air Over ) | Supply Frequency: | 50Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 1.0A |
| Phase: | Single Phase | Output HP: | 150W |
| Shaft Flats: | One Flat | Rated Speed: | 1400RPM |
| Mounting: | Stud Mounting All Angel | Shaft Diameter: | 0.59" / 15mm |
| Bearings: | Ball Bearing | Pole: | 4P |
| Insulation Class: | Class B | Lead Length: | 55.1" / 1400mm |
| Rotation: | CW | Capacitor: | 6.0uF/450V |
| Max. Ambient Temperature: | 40℃/104℉ | ||
| Highlight: | 1400RPM Condenser Fan Motor,150W Condenser Fan Motor,220V Condenser Fan Motor |
||
