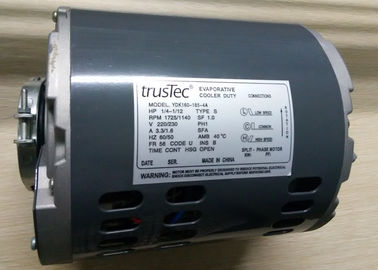

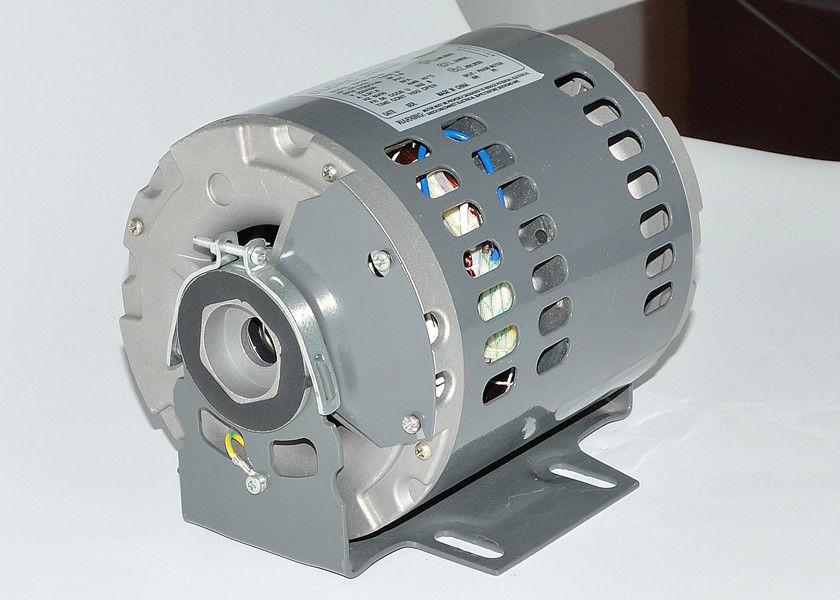

Air Cooler Fan Motor Customized Aluminum Shell 50Hz 2 Speed

Air Cooler Fan Motor Customized Aluminum Shell 50Hz 2 Speed

  • Air Cooler Fan Motor Customized Aluminum Shell 50Hz 2 Speed
  • Air Cooler Fan Motor Customized Aluminum Shell 50Hz 2 Speed
Air Cooler Fan Motor Customized Aluminum Shell 50Hz 2 Speed
Product Details:
Place of Origin: China
Brand Name: trusTec
Certification: UL Approval E529388,CE approval
Model Number: YDK160-185-4A
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Application: Air Cooler Output Power: 185W 1/4HP
Motor Diameter: 160mm Frequency: 50/60Hz
Pole: 4 Voltage: 115/127V
Product Name: Air Cooler Motor ODM Solutions: Customized AC And EC Motors
ODM Solutions: Customized AC And EC Motors ODM Solutions: ODM Solutions: Customized AC And EC Motors
High Light:

air cooler fan motor

,

cooler fan motor

Electric Motor Cooling Fan Customized Aluminum Sell 50Hz 2 Speed



Model

Power

/HP

Voltage

/V

Frequency

/Hz

Speed
/RPM
Rotation Insulation Class
YDK140-150-6T5 1/5 220-240 50 850/3 SPD CCW B
YDK160-185-4A 1/4 115/127 50/60 1425/1725 CW-SE B
YDK160-185-4A2 1/4 220/230 50/60 1425/1725 CW-SE B
YDK160-245-4A 1/3 115/127 50/60 1425/1725 CW-SE B
YDK160-245-4A2 1/3 220/230 50/60 1425/1725 CW-SE B
YDK160-375-4A 1/2 115/127 50/60 1425/1725 CW-SE B
YDK160-375-4A2 1/2 220/230 50/60 1425/1725 CW-SE B
YDK160-550-4A 3/4 115/127 50/60 1425/1725 CW-SE B
YDK160-550-4A2 3/4 220/230 50/60 1425/1725 CW-SE B
YDK160-735-4A 1 115/127 50/60 1425/1725 CW-SE B
YDK160-735-4A2 1 220/230 50/60 1425/1725 CW-SE B



ventilation fan motor

The motors can be customized according to the different voltages , freqencies and rotation speed .
performance characteristics Smoothing in operated,strong loading capacity,fast startup,long work times.
The quality is convincing, and the price is suitable. In addition, we can develop new products according to the customers neds.
We can the wire insde of motor are : copper wire , aluminume wire and copper wire mix aluminume wire . The wires is according to your reqeust !
The motors can be customized according to the different Voltage , Frequency and the rotation speed !



Application



used in fan-coil unit of central air conditioner



Features



High efficiency and low temperature rise:it can be optimized in design in accordance with different kinds of fan coil units,thus to guarantee the best match between air wheel and surface cooler;

Low noise and small vibration:being adapted international famous qualified low noise ball bearing,it makes motor long life and no need for more oil supplying;



Air Cooler Fan Motor Customized Aluminum Shell 50Hz 2 Speed



Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.



After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
