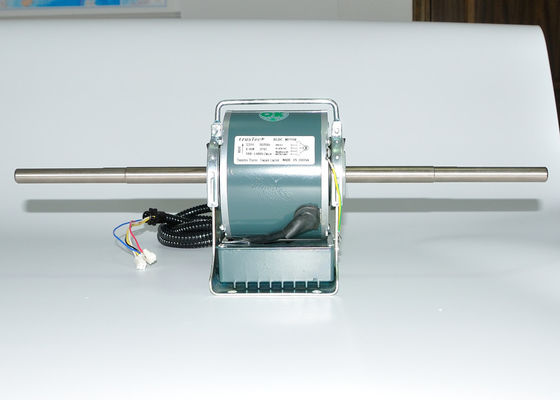

trusTec ECM Motor-70W BLDC Fan Coil Unit Motor

trusTec ECM Motor-70W BLDC Fan Coil Unit Motor

  • trusTec ECM Motor-70W BLDC Fan Coil Unit Motor
  • trusTec ECM Motor-70W BLDC Fan Coil Unit Motor
trusTec ECM Motor-70W BLDC Fan Coil Unit Motor
Product Details:
Place of Origin: China
Brand Name: trusTec
Certification: CE
Model Number: ZTS-70-8
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable (FOB/CNF/CIF/EXW)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Application: Fan Coil Unit Power: 70 W
Voltage: AC 220V Insulation Class: B/F
Speed: Three Speed Product Name: FCU BLDC MOTOR
ODM Solutions: ODM Solutions: Customized AC And EC Motors
High Light:

air conditioner blower motor


micro bldc motor

trusTec ECM Motor-70W BLDC Fan Coil Unit Motor​


Technical Parameters


Input Power
Output Power
ZTS-25-8 220 50 38 0.35 25 1150 0.21
ZTS-35-8 220 50 50 0.45 35 1200 0.28
ZTS-50-8 220 50 71 0.6 50 1200 0.4
ZTS-70-8 220 50 93 0.75 70 1250 0.53
ZTS-90-8 220 50 112 0.9 90 1250 0.69
ZTS-120-8 220 50 150 1.2 120 1300 0.88
ZTS-150-8 220 50 183 1.43 150 1300 1.1
ZTS-200-10 220 50 235 1.81 200 1400 1.36
ZTS-250-10 220 50 290 2.21 250 1400 1.71
ZTS-500-10 220 50 568 4.23 500 1400 3.41


1. Ttrustec EC(BLDC) motor can be AC 110V/220V 50Hz/60Hz or DC 24V/48V/310V input.


2. Ttrustec EC(BLDC) motor is up to 85% efficiency, power factor 0.5~0.6 .


3. Ttrustec EC(BLDC) motor can be 0-10VDC/PWM variable speed, multi speeds or single speed.


4. Ttrustec EC(BLDC) motor uses sensorless vector field-oriented control(FOC), lower material cost and smaller failure rate because of no hall sensor, higher efficiency, lower noise, smoother performance curves.


Note: Listed are representative motors, only for reference, dimensions can be customized according to customer requirements.


Product Features


1. Wide speed range, strong overload ability, high reliability, good stability.

2. Excellent torque characteristic, good torque performance in middle & low speed, large starting torque, small starting current.

3. Reasonable structure, high efficiency, low temperature rise, low noise, small vibration.


Product Applications


Indoor central air conditioning coil unit and other ventilation equipment


Main advantages


1. Our top management is born from motor technicians.

2. OEM and ODM offer.

3. UL, CCC, ROHS, CE certificate and strict quality control.

4. We have had more than 10 years export experience, especially to Mid-east and South America.

5. Own a competent and honest sales team, always efficient to all your requirements.


trusTec ECM Motor-70W BLDC Fan Coil Unit Motor




Q: How can you ensure the motor can drive the machine?
A: Our factory elaborately choose 100% pure copper wire and capacitor with appropriate volume; Our professional manager provide you accurate purchase guide.

Q: How can you control the noise?
A: Our producers carefully check the drawing and process the shaft and end cover; Our inspectors check the dynamic balance repeatedly;

Q: How can you decrease the heat production?
A: Totally copper line lead to less heat production; IP55 class insulation paper avoid cutting-out; Multilple inspections ensure no carelessness exist; Professional application guidance.


Q: What information do i need to provide in order to get a quotation?
A: Generally, information about Power, Voltage, Frequency, Speed, also Motor Size is needed in order to select a right fan motor for you and provide you a quotation.
