| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | TRZ95-90-8 |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

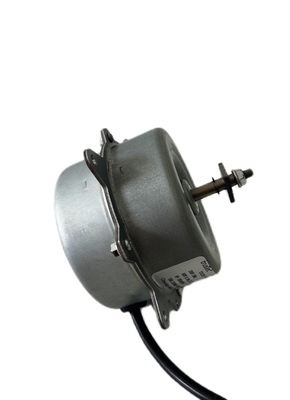

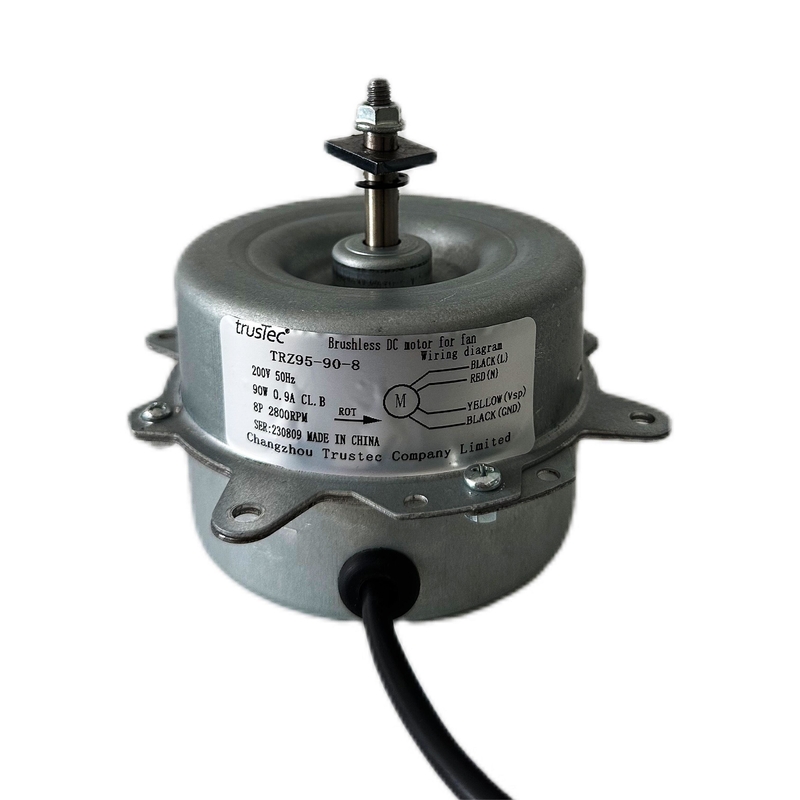

| Product: | Brushless DC Motor | Frame Size: | Φ95mm |
|---|---|---|---|
| Motor Type: | Outdoor Fan Motor | Supply Voltage: | 200V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 50Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.9A |
| Phase: | Single Phase | Output Power: | 90W |
| Mounting: | Stud Mounting All Angel | Rated Speed: | 2800RPM |
| Bearings: | Ball Bearing | Poles: | 8P |
| Max. Ambient Temperature: | 40℃/104℉ | Shaft Diameter: | 1/2" / 12.7mm |
| Insulation Class: | Class B | Rotation: | CW(LE) |
| Highlight: | Brushless DC Fan Motor 90W,2800RPM Brushless DC Fan Motor,8P Pole BLDC Motor |
||
