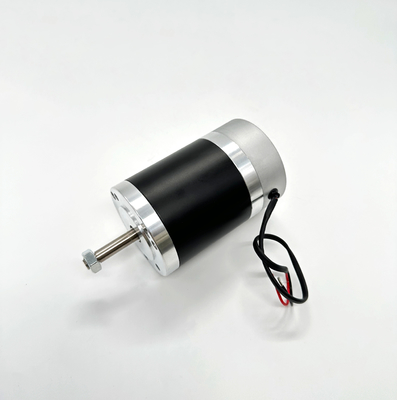

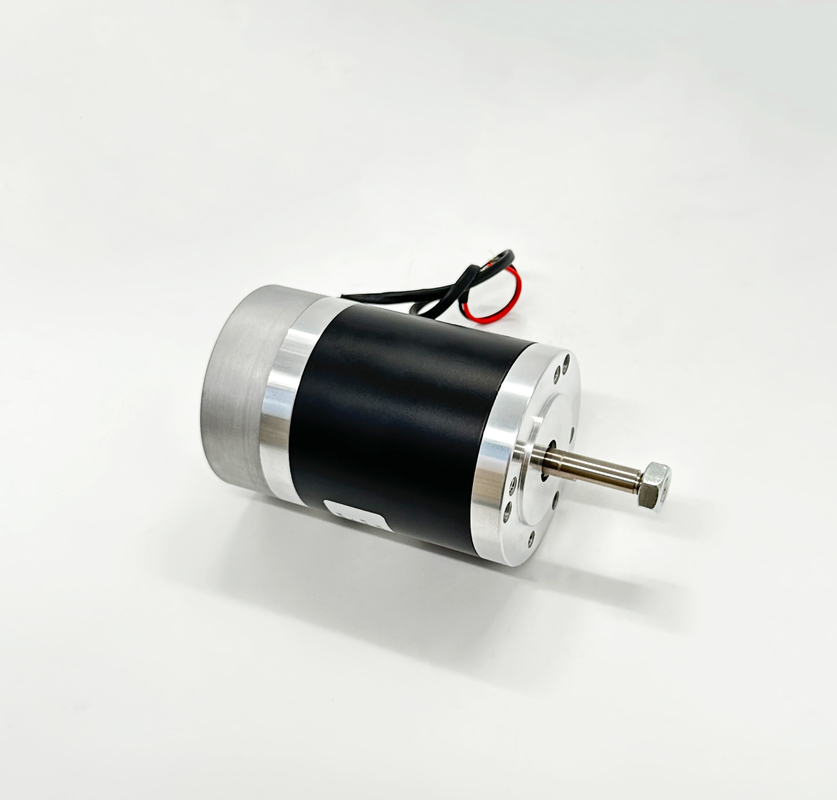

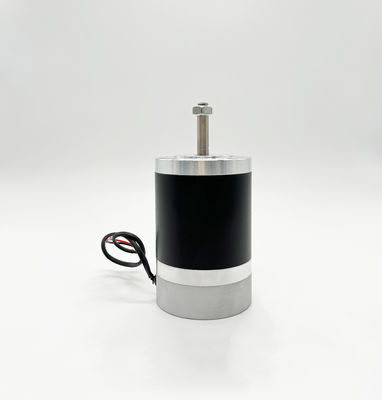

Brushless DC Motor - 24V 1250RPM 0.11Nm 70W 0.7A Ф82x123mm

Brushless DC Motor - 24V 1250RPM 0.11Nm 70W 0.7A Ф82x123mm

  • Brushless DC Motor - 24V 1250RPM 0.11Nm 70W 0.7A Ф82x123mm
  • Brushless DC Motor - 24V 1250RPM 0.11Nm 70W 0.7A Ф82x123mm
  • Brushless DC Motor - 24V 1250RPM 0.11Nm 70W 0.7A Ф82x123mm
Brushless DC Motor - 24V 1250RPM 0.11Nm 70W 0.7A Ф82x123mm
Product Details:
Place of Origin: Changzhou, China
Brand Name: trusTec
Certification: CE
Model Number: BLDC-70-8A
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Product: BLDC Motor Frame Size: Ф82MM
Enclosure Type: TEAO(Totally Enclosed Air Over) Supply Volatge: 24V
Thermal Overload: Equipped With An Automatic Thermal Overload Current: 0.7A
Phase: Single Phase Output Power: 70W
Mounting: Stud Mounting All Angel Rated Speed: 1250RPM
Bearings: Ball Bearing Poles: 4P
Mounting Orientation: All Angle Body Length: 123MM
Max. Ambient Temperature: 40℃/104℉ Shaft Diameter: Φ9.6MM
Insulation Class: Class B Shaft Length: 45MM
Rotation: CW Lead Length: 300MM
High Light:

70W BLDC Fan Motor

,

BLDC Fan Motor 1250RPM

,

Customized Brushless Fan Motor
