Place of Origin: | China |
Brand Name: | trusTec |
Certification: | CE |
Model Number: | ZTS-50-8 |
Minimum Order Quantity: | 200pcs |
---|---|
Price: | Negotiable (FOB/CNF/CIF/EXW) |
Packaging Details: | Standard carton packing, foam board inside for protection. |
Delivery Time: | 15 work days after order confirmation. |
Payment Terms: | T/T, L/C |
Supply Ability: | 100,000 pcs per month |

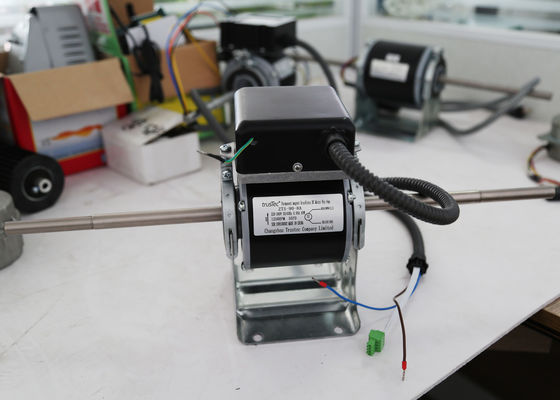

Product Name: | EC Fan Motor | Application: | Fan Coil Unit |
---|---|---|---|
Power: | 50 W | Voltage: | AC 220V |
Insulation Class: | B/F | Speed: | 300~1200 RPM |
ODM Solutions: | Customized AC And EC Motors | ODM Solutions: | Customized AC And EC Motors |
ODM Solutions: | ODM Solutions: Customized AC And EC Motors | ||
Highlight: | ec motor,ec dc motor |
AC Motor |
DC Motor |
Noisy>40dB |
Low noise<20dB |
Sparking easily |
No Spark |
Constant rotation speed |
Adjustable speed(RPM200-RPM2000) |
Short service life |
Long service life |
High energy consumption |
Energy saving(save 50% power) |
Low efficiency |
High efficiency |
Heavy weight and high temperature rise |
Light weight and low temperature rise |
|
Voltage
|
Frequency
|
Input Power
|
Current
|
Output Power
|
Speed
|
Torque
|
ZTD/ZTS-25-8 |
220 |
50 |
38 |
0.35 |
25 |
1150 |
0.21 |
ZTD/ZTS-35-8 |
220 |
50 |
50 |
0.45 |
35 |
1200 |
0.28 |
ZTD/ZTS-50-8 |
220 |
50 |
71 |
0.6 |
50 |
1200 |
0.4 |
ZTD/ZTS-70-8 |
220 |
50 |
93 |
0.75 |
70 |
1250 |
0.53 |
ZTD/ZTS-90-8 |
220 |
50 |
112 |
0.9 |
90 |
1250 |
0.69 |
ZTD/ZTS-120-8 |
220 |
50 |
150 |
1.2 |
120 |
1300 |
0.88 |
ZTD/ZTS-150-8 |
220 |
50 |
183 |
1.43 |
150 |
1300 |
1.1 |
ZTD/ZTS-200-10 |
220 |
50 |
235 |
1.81 |
200 |
1400 |
1.36 |
ZTD/ZTS-250-10 |
220 |
50 |
290 |
2.21 |
250 |
1400 |
1.71 |
ZTD/ZTS-500-10 |
220 |
50 |
568 |
4.23 |
500 |
1400 |
3.41 |
