TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-185-8A53（Y7S859D545L）-CJK |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

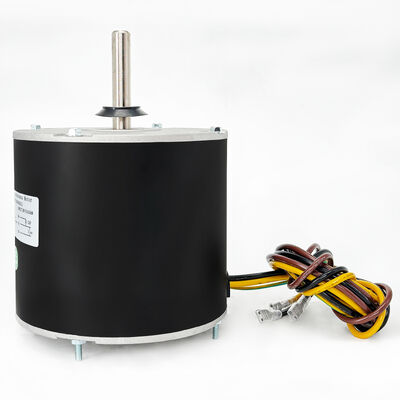

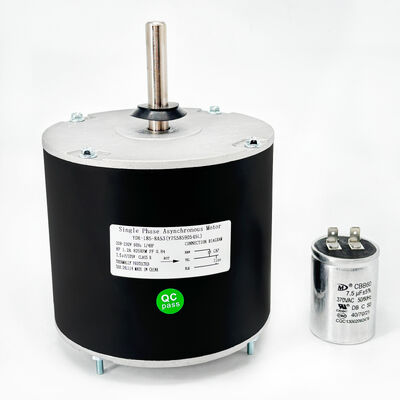

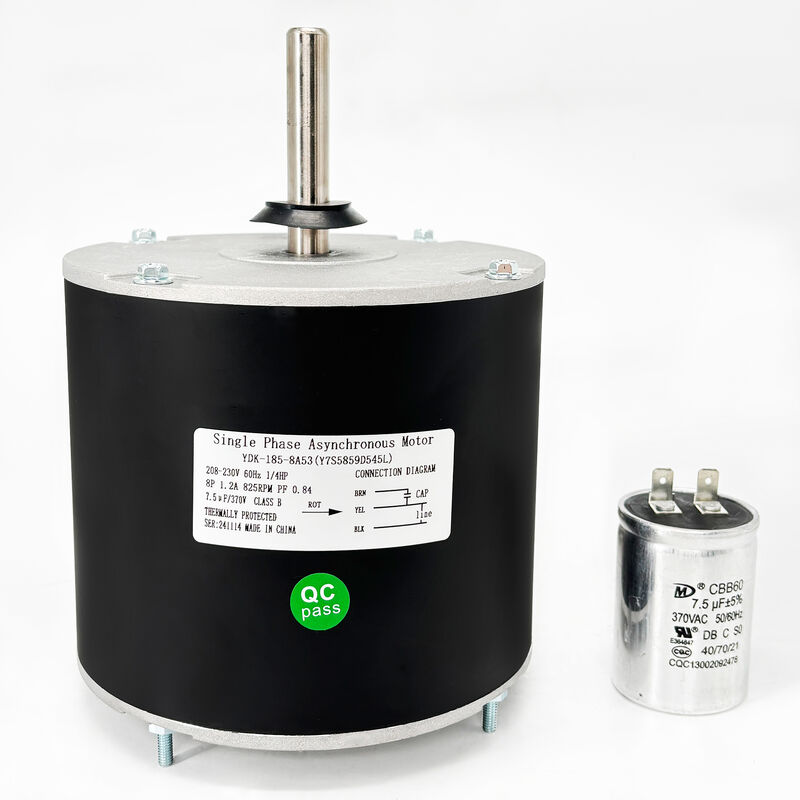

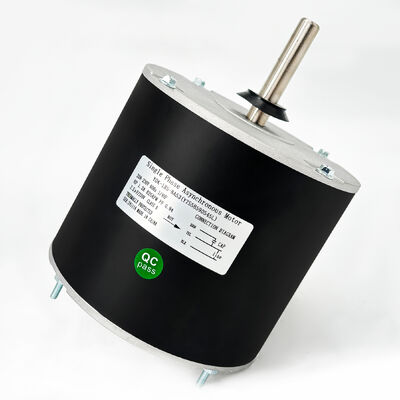

| Product: | Condenser Fan Motor | Replacement Motor: | Y7S859D545L |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 208-230V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 1.2A |
| Phase: | Single Phase | Output HP: | 185W 1/4HP |
| Shaft Flat: | One Flat | Speed: | 825RPM |
| Mounting Orientation: | All Angle | Capacitor: | 7.5μF/370V |
| Bearings: | Ball Bearing | Max. Ambient Temperature: | 40℃/104℉ |
| Insulation Class: | Class B | Pole: | 8P |
| Rotation: | Reversible | PF: | 0.84 |
| Shaft Diameter: | 12.7mm/0.5" | Shaft Length: | 64mm/2.52" |
| Flat Length: | 27mm/1.06" | Motor Shell Length: | 123.8mm/4.87" |
| Mounting Hole Spacing: | 132mm/5.20" | Lead Length: | 1150mm/45.28" |
| Screw Length: | 11mm/0.43" |
