| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-150-6A50（K55HXHDD-8562）-CJK |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

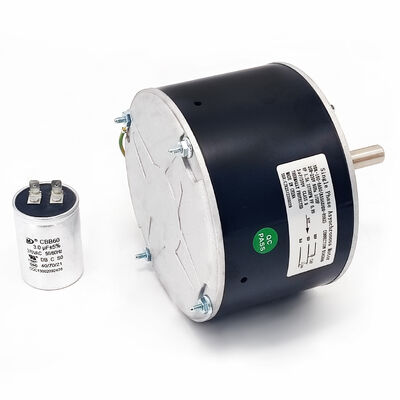

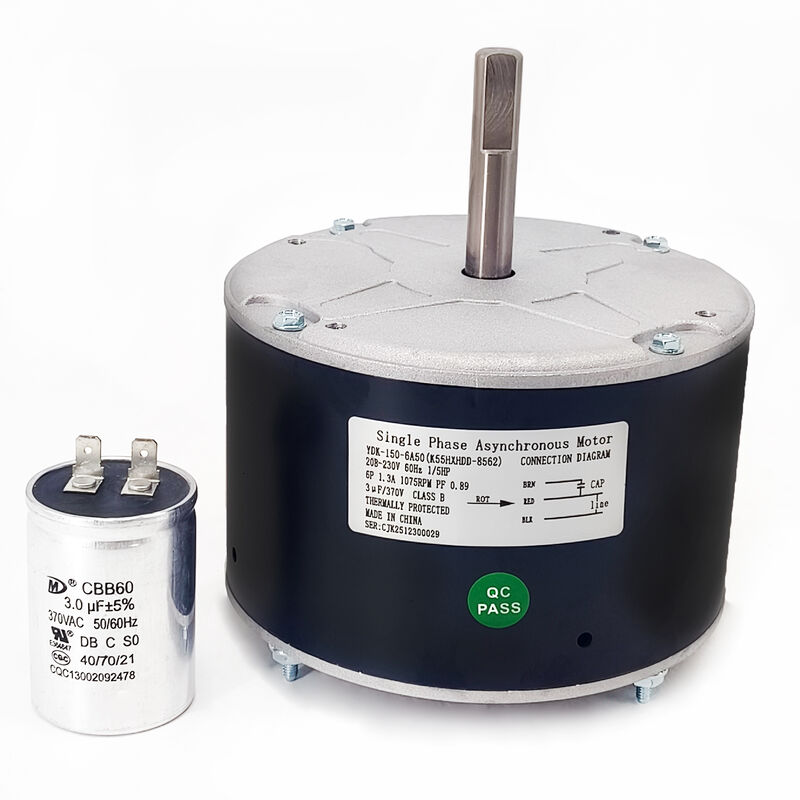

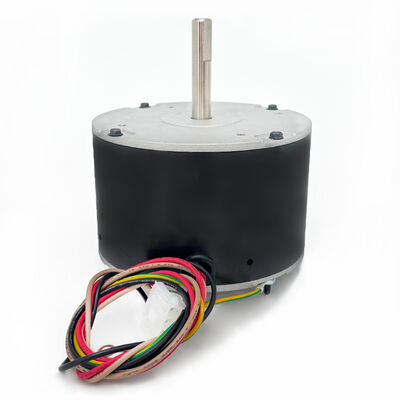

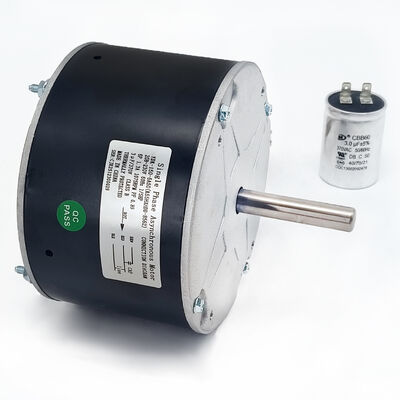

| Product: | Condenser Fan Motor | Supply Voltage: | 208-230V |
|---|---|---|---|
| Replacement Motor: | K55HXHDD-8562 | Supply Frequency: | 60Hz |
| Motor Type: | Permanent Split Capacitor | Current: | 1.3A |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Output HP: | 150W 1/5HP |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Speed: | 1075RPM |
| Phase: | Single Phase | Capacitor: | 3μF/370V |
| Shaft Flat: | One Flat | Pole: | 6P |
| Mounting Orientation: | All Angle | PF: | 0.89 |
| Insulation Class: | Class B | Max. Ambient Temperature: | 40℃/104℉ |
| Bearings: | Ball Bearing | Shaft Diameter: | 12.7mm/0.5" |
| Rotation: | CCW | Shaft Length: | 62mm/2.44" |
| Flat Length: | 25mm/0.98" | Motor Shell Length: | 90.8mm/3.57" |
| Mounting Hole Spacing: | 132mm/5.20" | Lead Length: | 600mm/23.62" |
