TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-150-8A52（Packard 45210）-CJK |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

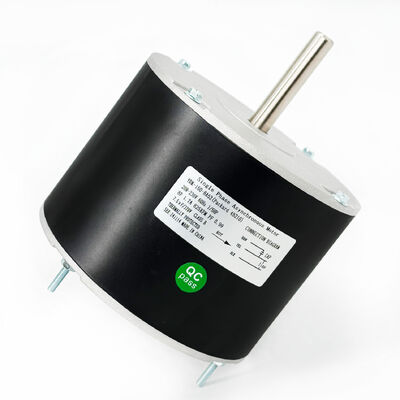

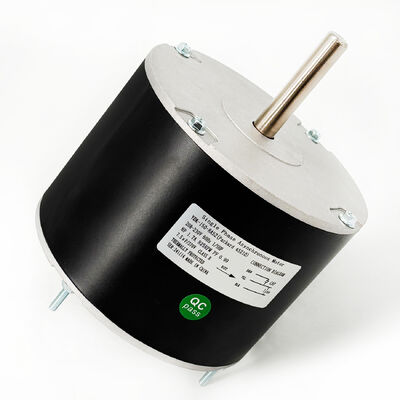

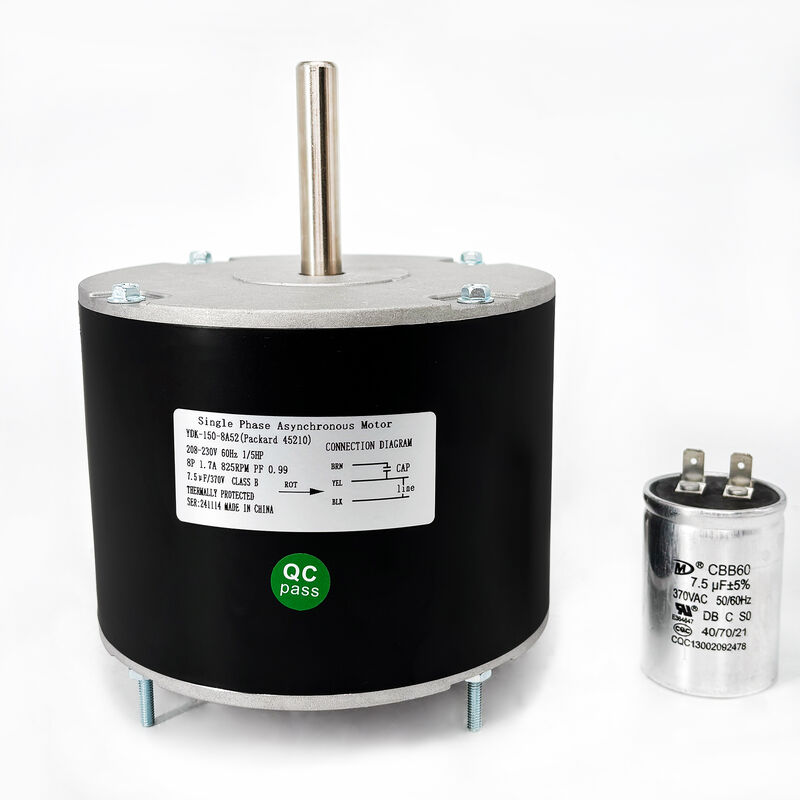

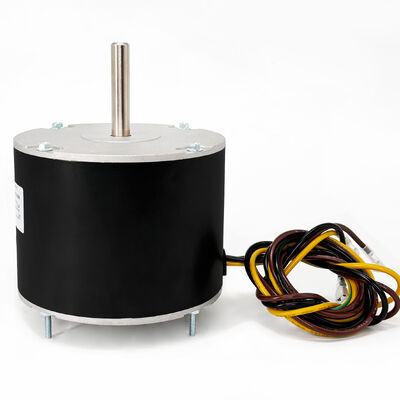

| Product: | Condenser Fan Motor | Replacement Motor: | Packard 45210 |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 208-230V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 1.7A |
| Phase: | Single Phase | Output HP: | 150W 1/5HP |
| Shaft Flat: | One Flat | Speed: | 825RPM |
| Mounting Orientation: | All Angle | Capacitor: | 7.5μF/370V |
| Bearings: | Ball Bearing | Max. Ambient Temperature: | 40℃/104℉ |
| Insulation Class: | Class B | Pole: | 8P |
| Rotation: | CCW | PF: | 0.99 |
| Shaft Diameter: | 12.7mm/0.5" | Shaft Length: | 61.5mm/2.42" |
| Flat Length: | 32mm/ 1.26" | Motor Shell Length: | 107.8mm/4.24″ |
| Mounting Hole Spacing: | 132mm/5.20" | Lead Length: | 1200mm/47.24" |
| Screw Length: | 13.6mm/0.54" |
Contact Person: Trustec Team
Tel: +86-13961191626
Fax: 86-519-85109398
