TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK94-35-6-70B2-DNW |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

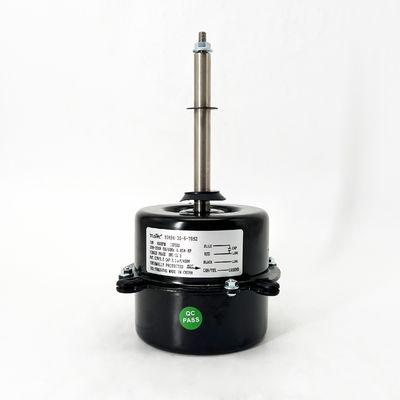

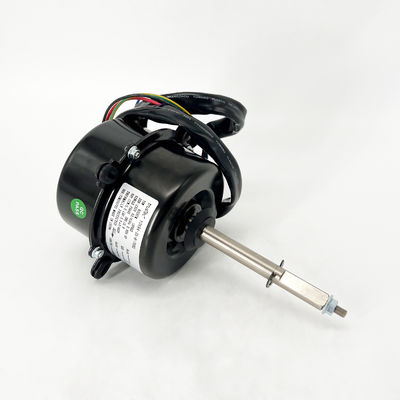

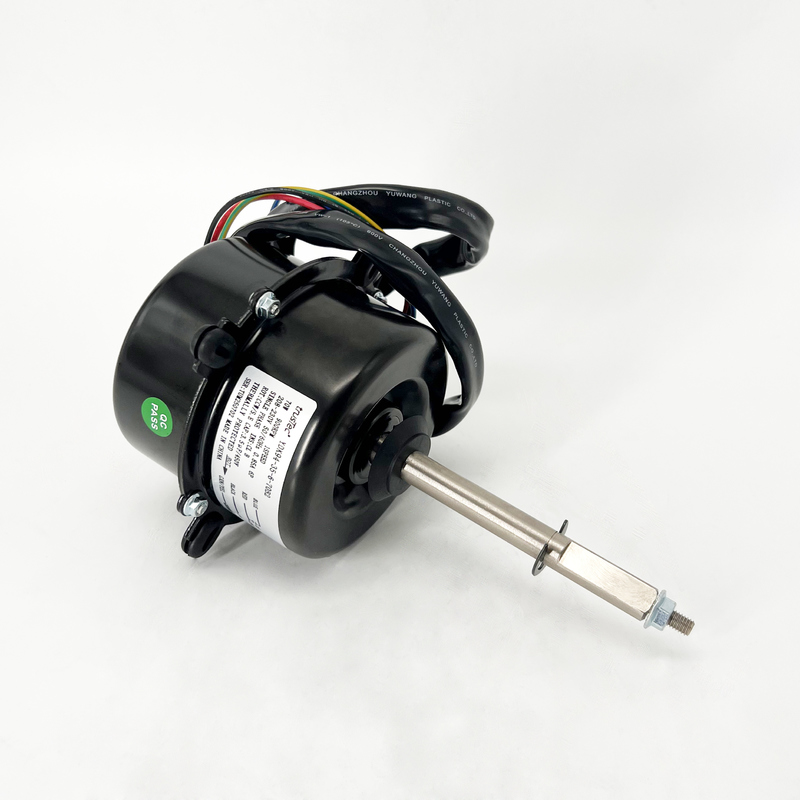

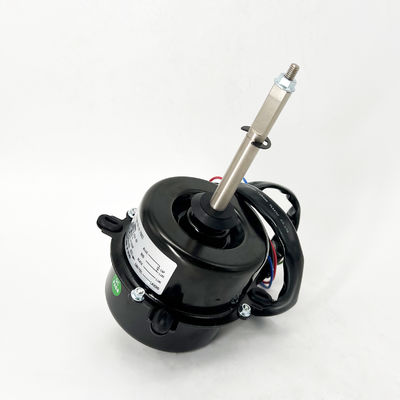

| Product: | Outdoor Fan Motor | Frame: | 115mm |
|---|---|---|---|
| Supply Voltage: | 208-230V | Supply Frequency: | 50/60Hz |
| Motor Type: | Permanent Split Capacitor | Current: | 0.85A |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Output HP: | 70W |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Speed: | 900RPM |
| Phase: | Single Phase | Capacitor: | 3.5μF/370V |
| Shaft Flat: | One Flat | Pole: | 6P |
| Mounting Orientation: | All Angle | PF: | 0.9 |
| Insulation Class: | Class B | Max. Ambient Temperature: | 40℃/104℉ |
| Rotation: | CCW-SE | Shaft Length: | 122mm/4.80" |
| Bearings: | Ball Bearing | Shaft Diameter: | 12mm/0.47" |
| Flat Length: | 32mm/ 1.26" | Motor Shell Length: | 32mm/ 1.26" |
| Lead Length: | 950mm/37.40" |
