TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-250-6A-CDJ |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

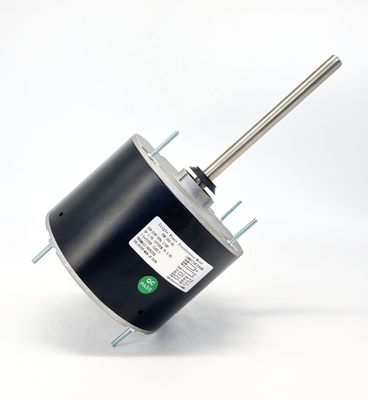

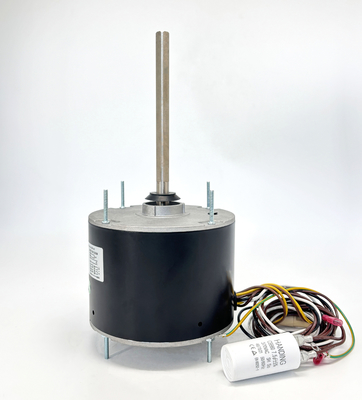

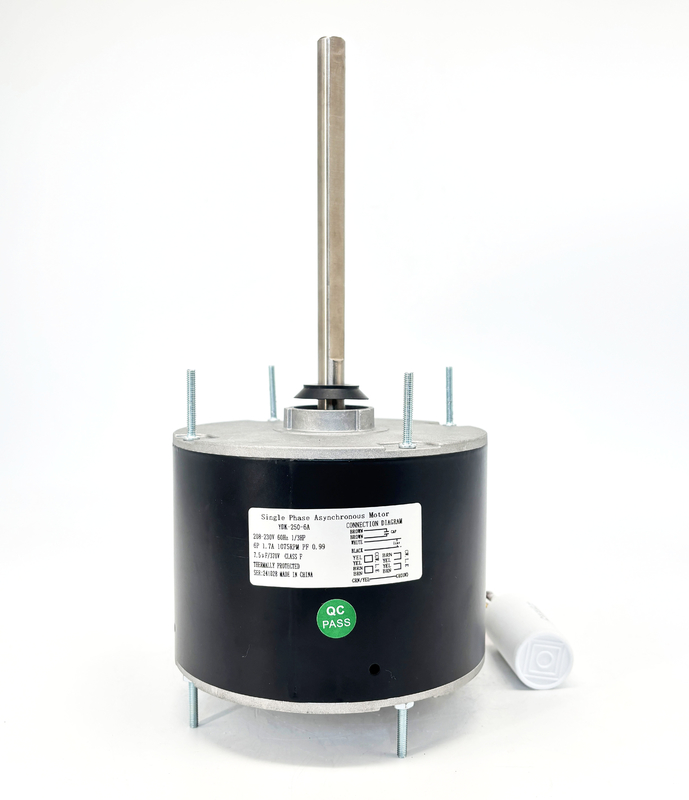

| Product: | Condenser Fan Motor | Frame: | Nema 48 |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 208-230V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 1.7A |
| Phase: | Single Phase | Output HP: | 1/3HP |
| Shaft Flat: | One Flat | Rated Speed: | 1075RPM |
| Mounting Orientation: | All Angle | Capacitor: | 7.5uF/370V |
| Insulation Class: | Class F | Pole: | 6P |
| Bearings: | Ball Bearing | Shaft Diameter: | 0.5" /12.7mm |
| PF: | 0.99 | Shaft Length: | 6.69" /169.9mm |
| Rotation: | Reversible | Flat Length: | 5.48" /139.1mm |
| Max. Ambient Temperature: | 70℃/158℉ | Lead Length: | 48" /1219.2mm |
| Screw Length: | 0.95" / 24.1mm 0.88"/22.35mm | Motor Shell Length: | 4.11" / 104.4mm |
| Highlight: | 48 Frame Condenser Fan Motor |
||
