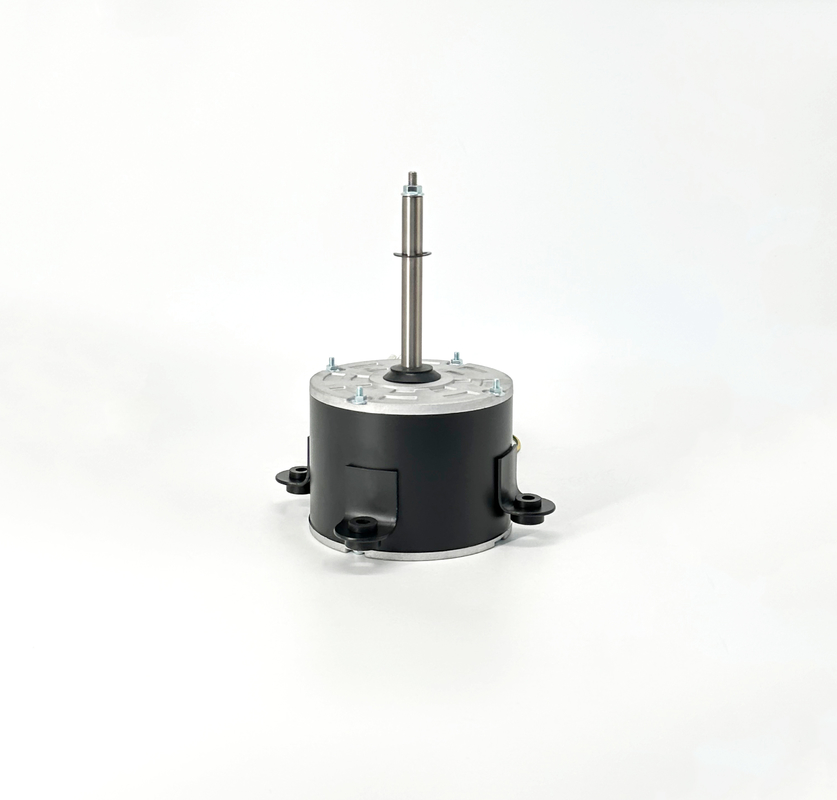

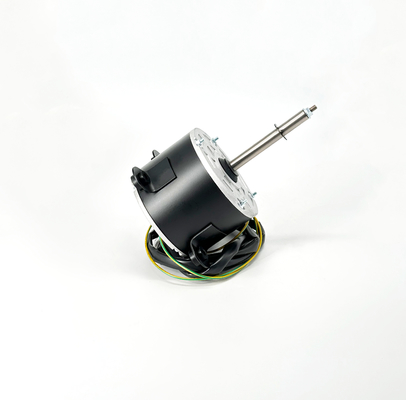

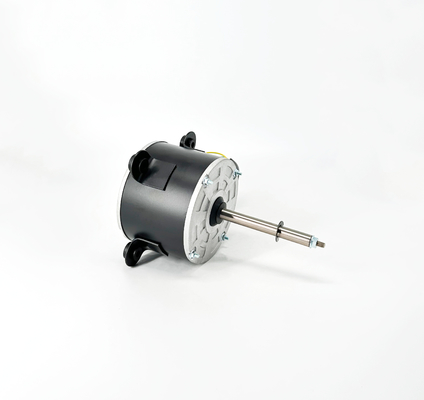

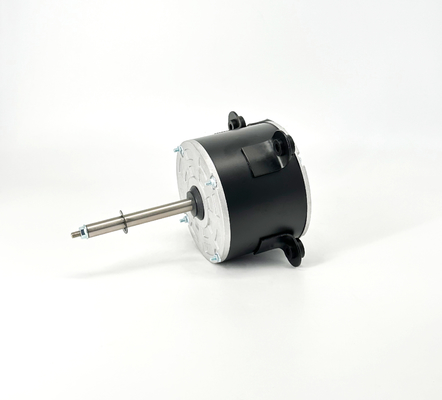

Condenser Fan Motor -AC 140W 1160RPM Fan Motor Reversible YDK-140-4A

Condenser Fan Motor -AC 140W 1160RPM Fan Motor Reversible YDK-140-4A

  • Condenser Fan Motor -AC 140W 1160RPM Fan Motor Reversible YDK-140-4A
  • Condenser Fan Motor -AC 140W 1160RPM Fan Motor Reversible YDK-140-4A
  • Condenser Fan Motor -AC 140W 1160RPM Fan Motor Reversible YDK-140-4A
  • Condenser Fan Motor -AC 140W 1160RPM Fan Motor Reversible YDK-140-4A
Condenser Fan Motor -AC 140W 1160RPM Fan Motor Reversible YDK-140-4A
Product Details:
Place of Origin: Changzhou, China
Brand Name: trusTec
Certification: CE、High-tech Enterprise Certificate、ISO9000 Certificate 2023
Model Number: YDK-140-4A
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Bearing: Ball Bearing Bearings: Sleeve
Current: 1.2A Enclosure: Close
Mounting Type: Vertical Odm Solutions: Customized AC And EC Motors
Speed: 1160RPM Thermal Protection: Automatic Reset
Type: Single Phase Voltage: 220V
High Light:

YDK-140-4A Condenser Fan Motor

,

1160RPM Condenser Fan Motor

,

140W Condenser Fan Motor



Key Parameters

Model

Power

/W

Frequency

/Hz

Speed

/RPM

Rated Current

/A

Voltage

/V

YDK-140-4A 140W 50/60 1160 1.2 220

Ps:all dimension can be customized according to customer requirement.



Condenser Fan Motor -AC 140W 1160RPM Fan Motor Reversible YDK-140-4A



Condenser Fan Motor -AC 140W 1160RPM Fan Motor Reversible YDK-140-4A



Product Features

• Suitable for vertical shaft up or horizontal mounting

• Permanent split capacitor

• Automatic reset thermal protection

NEMA 48 Frame

• Reversible by electrical reconnection

• Class B Insulation

• Extended Studs

• Continuous Duty

• BALL Bearings

• Single Phase, 60 HZ



Product Applications

1. Air conditioner indoor / outdoor unit.

2. Air Purifiers, Air refresher.

3. Range hood, sewer grinder, dehumidifier, medical equipment, special blender etc.



FAQ

Q1- What is the warranty of the motors?

The warranty is 36 months on the production date, under the warranty we will afford the shipping cost to send the replacement.



Q2- What is the application of the motors?

All the motors are widely used in HVC&R line.



Q3- Can you design the motor according to the different request?

Yes, we can offer the ODM.



Q4- Do you have distributors overseas?

Yes. We have distributors in USA, Holland, Spain, Turkey, Sudan, UAE, KSA...



Q5- What is the most important advantage for the export?

Besides the competitive price with the good quality, the critical point is the quick response, the efficient export team and the fast delivery time.



Q6- How to get the accurate offer?

The precise price will be quoted after checking the specification and mounting dimension of the motor.





HVAC Maintenance: Caring for Your HVAC Condenser Fan Motor

In the outdoor unit of your air conditioner, there are a few vital components for facilitating the heat transfer that makes AC possible. In particular, you will find the condenser coil as well as a condenser fan and the condenser fan motor. Together, the condenser fan motor and the coil itself keep your AC working and keep you cool. So, it is important to make sure you perform proper cleaning and maintenance on these pieces and, in particular, look out for any issues with your condenser fan motor.

HVAC Maintenance:Condenser Fan Motor Issues to Look Out For

One of the more common reasons that people end up with a broken air conditioner is that the motor has worn out, broken, or stopped working for

one reason or another. The condenser fan motor powers a fan, which aids in heat transfer and keeps the condenser coil itself working well. So, an

issue with the condenser fan motor can quickly become an issue for the AC unit as a whole. There are a few ways this can happen. Electrical

problems might be to blame or debris build-up. It might even be the case that you started out with a faulty or malfunctioning condenser fan motor,

which will quickly stop working entirely.

Regular air conditioner maintenance can help you avoid these problems by making sure all the electrical connections are working correctly. Plus,

an HVAC service professional can check out a new condenser fan motor or the motor in a new HVAC system to make sure it’s working correctly.

If you do find yourself dealing with what might be a breakdown of the condenser fan motor, this is definitely a time to call in a professional. They

can then safely determine the cause of the breakdown and figure out if it is something that can be fixed or if you need a new condenser fan motor

in order to get your AC unit back up and running. In the meantime, you can keep your fan motor working well by preventing debris buildup around

the unit and keeping an eye out for overheating, which is one of the most common reasons for a malfunction.
