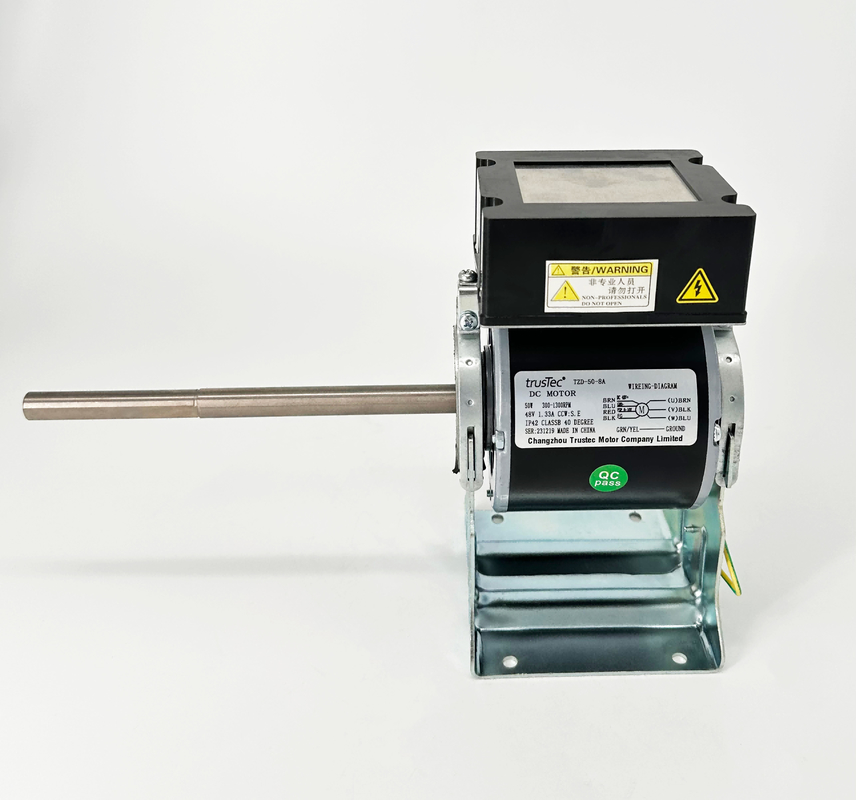

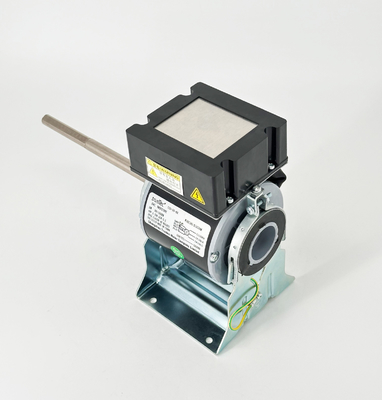

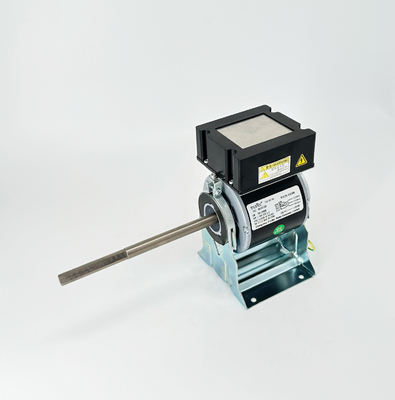

ECM Motor - 50W EC Motor 300-1300RPM - Fan Coil Unit Motor

ECM Motor - 50W EC Motor 300-1300RPM - Fan Coil Unit Motor

  • ECM Motor - 50W EC Motor 300-1300RPM - Fan Coil Unit Motor
  • ECM Motor - 50W EC Motor 300-1300RPM - Fan Coil Unit Motor
  • ECM Motor - 50W EC Motor 300-1300RPM - Fan Coil Unit Motor
ECM Motor - 50W EC Motor 300-1300RPM - Fan Coil Unit Motor
Product Details:
Place of Origin: Changzhou, China
Brand Name: trusTec
Certification: CE、High-tech Enterprise Certificate、ISO9000 Certificate 2023
Model Number: TZD-50-8A
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
High Light:

EC Fan Motor 50W

,

1300RPM EC Fan Motor

,

Controller EC Brushless Motor



Product Name EC Fan Motor Voltage 220V
Rotation CCW:S.E Output Power 50W
Insulation Class Class B AMPS 1.33A
Speed 300-1300RPM Capacitor /
Rated Torque /

Ingress Protection

IP42
Other protection THERMALLY PROTECTED



Key Parameters

Model

Power

/W

Insulation Class

Speed

/RPM

Rotation

Voltage

/V

TZD-50-8A 50 B 300-1300 CCW:S.E 220

Ps:all dimension can be customized according to customer requirement.



ECM Motor - 50W EC Motor 300-1300RPM - Fan Coil Unit Motor



ECM Motor - 50W EC Motor 300-1300RPM - Fan Coil Unit Motor



Product Features

1. Wide speed range, strong overload ability, high reliability, good stability.

2. Excellent torque characteristic, good torque performance in middle & low speed, large starting torque, small starting current.

3. Reasonable structure, high efficiency, low temperature rise, low noise, small vibration.



Product Applications

1. Air conditioning and other ventilation equipment



Main advantages

1. Our top management is born from motor technicians.

2. OEM and ODM offer.

3. UL, CCC, ROHS, CE certificate and strict quality control.

4. We have had more than 10 years export experience, especially to Mid-east and South America.

5. Own a competent and honest sales team, always efficient to all your requirements.



Growing Adoption Of Brushless DC Motors For High Efficiency

A brushless DC motors is a type of synchronous motor that is powered by DC charge through a power supply. It generates AC power which drives the specific phase of the motor with the help of controller of the closed loop. In addition, a brushless DC motors also called as commutated motor. This system is identical to the PMSM (Permanent Magnet Synchronous Motor). The motor has a controller that provides current pulses to the motor windings to control torque as well as speed. High power to weight ratio, electronic control, and high speed are some of the significant factors that makes the brushless DC motors more advantageous. The system finds their number of applications across computer peripherals, hand-held power tools, disk drives, printers, and vehicles. As compared to the traditional motor, the brushless DC motors needs less wear, it also reduces the overall maintenance costs.



The brushless DC motors offer huge number of benefits such as peak point efficiency, higher efficiency, quick response, high operation speed, peak point efficiency, less rotor heat, and low maintenance cost that makes it reliable for high number of applications such as positioning, motion control system, as well as actuation systems. Moreover, they need mow maintenance and the motor operates at very low temperatures along with the thermally resistant body. In addition, the growing popularity of the sensor-less controls for these type of motor is expected to increase the product robustness and reliability, thus reducing the number of mechanical misalignment and electrical connections. These factors boost the growth of the brushless DC motors market across the globe. The development of the global electrical vehicle market has a significant influence on the market growth that is expected to boost the market demand over the forecast period. In addition to this, the ability of these motors to save energy as well as rise operational efficiency of equipment is also estimated to increase the growth of the global brushless DC motor market into coming years.



The brushless DC motors provide optimal reliability and efficiency at the same time that proves to be inexpensive in number of different applications such as sun-roof actuators, air conditioners, and window lifters. Moreover, brushless DC motors are thermally resistant, operate at very low temperature, and needs low maintenance. In addition, the emergence of sensor-less controls is anticipated to increase the demand for the brushless DC motors over the forecast period. Moreover, the global market for brushless DC motors is driven by the increasing movement across the electric vehicle production. The rising popularity of vehicle features such as adjustable mirrors, motorized seats, as well as sunroof systems are also boosting the growth of the brushless DC motors market. The brushless DC motors market across the globe is witnessing huge growth which can be majorly attributed to the rise in automobile industries and huge amount of brushless DC motors utilized in a car.
