| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-77-6A60-ILCT |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

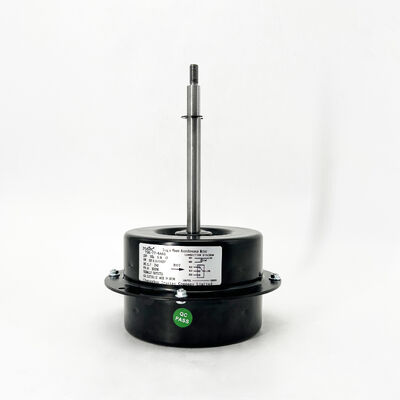

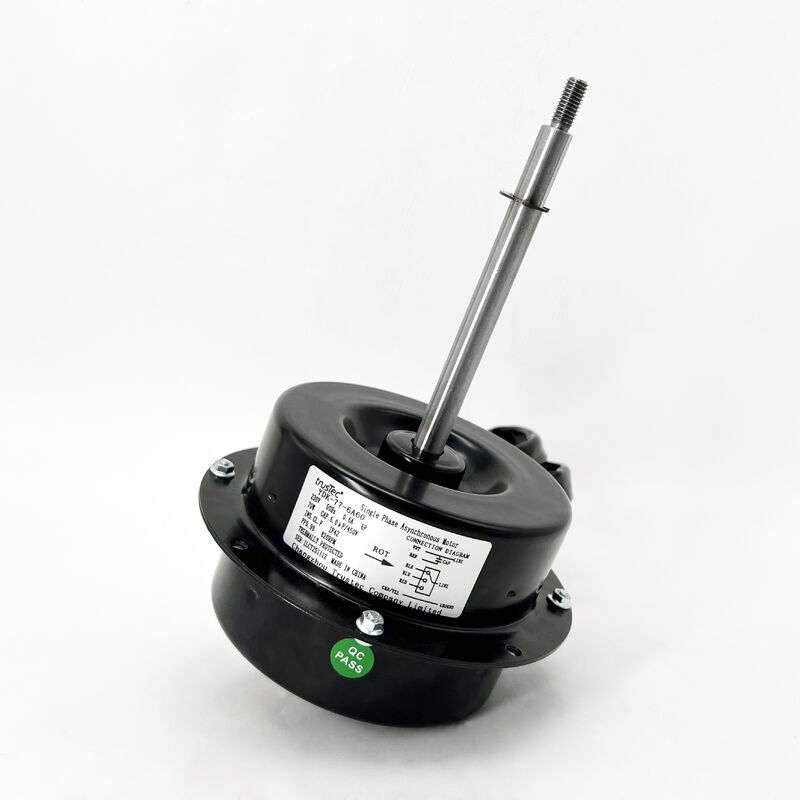

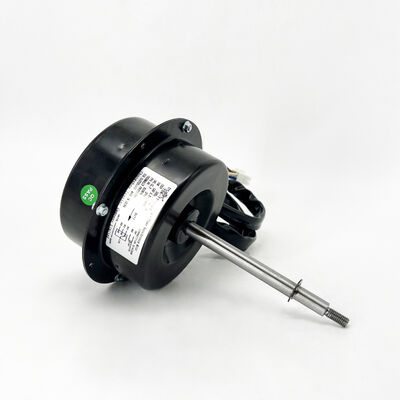

| Product: | Outdoor Fan Motor | Frame: | 42 Frame |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 230V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.6A |
| Phase: | Single Phase | Output HP: | 70W |
| Shaft Flat: | One Flat | Speed: | 820RPM |
| Mounting Orientation: | All Angle | Capacitor: | 6.0μF/450V |
| Insulation Class: | Class F | Pole: | 6P |
| Rotation: | CW-LE | PF: | 0.99 |
| Bearings: | Ball Bearing | Max. Ambient Temperature: | 70℃/158℉ |
| Motor Shell Length: | 86mm/3.39" | Shaft Length: | 139.5mm/5.49" |
| Flat Length: | 44mm/1.73" | Shaft Diameter: | 12mm/0.47" |
