| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-130-6A60-CJK |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

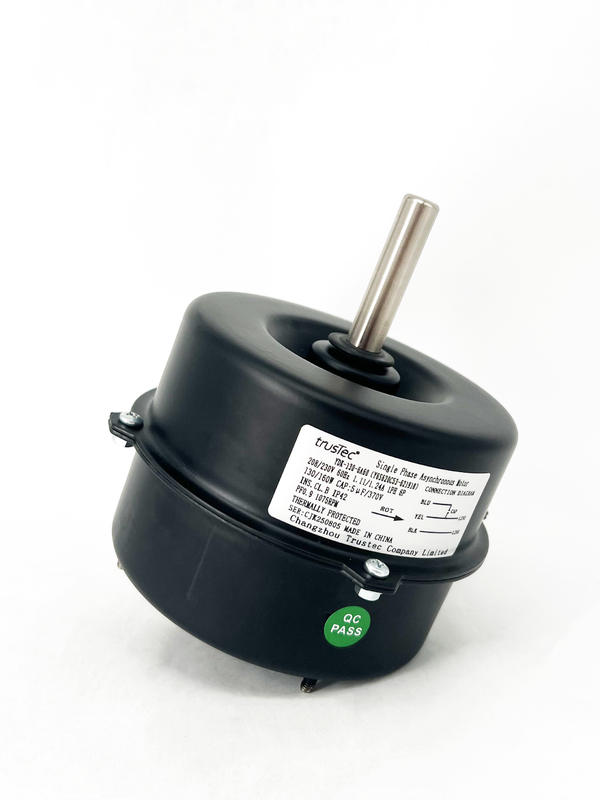

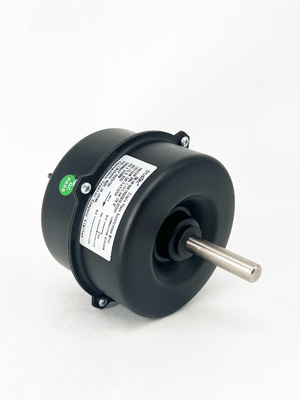

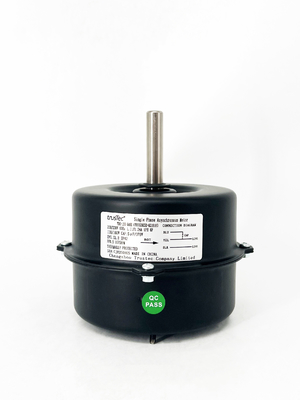

| Product: | Outdoor Fan Motor | Frame: | 122.4mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 208/230V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 1.11/1.24A |
| Phase: | Single Phase | Output HP: | 130/160W |
| Shaft Flat: | One Flat | Speed: | 1075RPM |
| Mounting Orientation: | All Angle | Capacitor: | 5μF/370V |
| Insulation Class: | Class B | Pole: | 6P |
| Rotation: | CCW | PF: | 0.9 |
| Bearings: | Ball Bearing | Max. Ambient Temperature: | 40℃/104℉ |
| Motor Shell Length: | 91mm/3.58" | Shaft Length: | 57mm/2.24" |
| Flat Length: | 40mm/1.57" | Lead Length: | 1100mm/43.31" |
