TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:

|
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-39-4A60-KPM |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

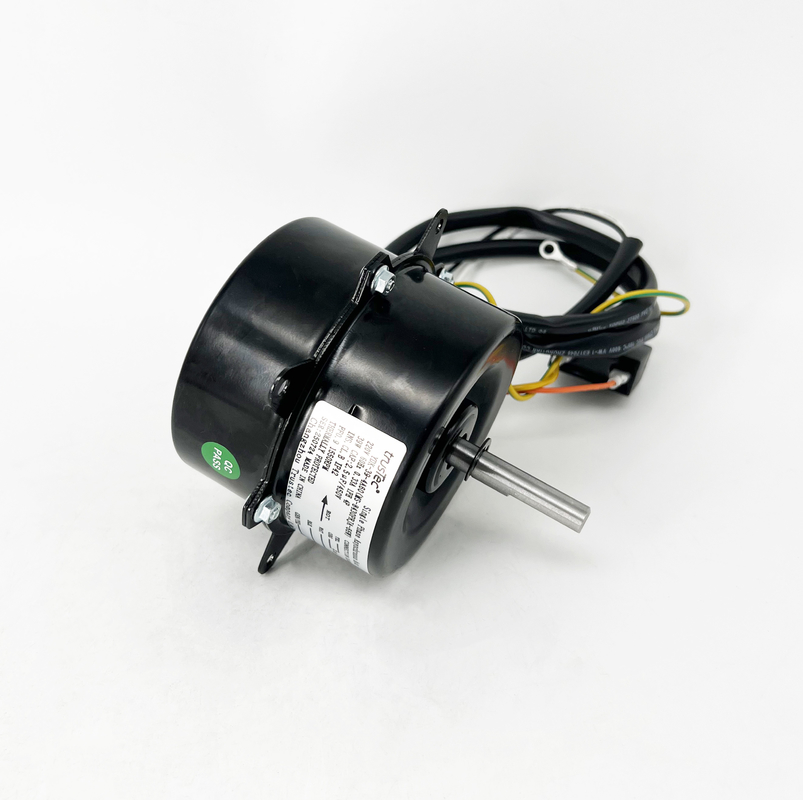

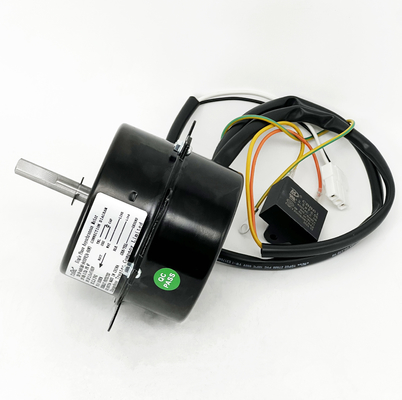

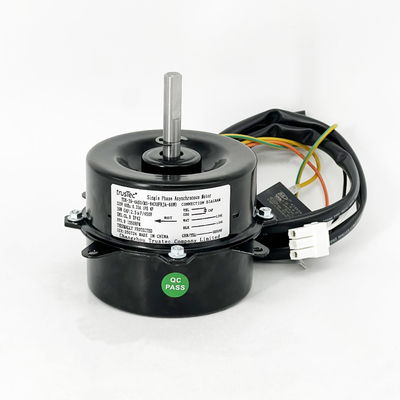

| Product: | Outdoor Fan Motor | Frame: | 95mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.33A |
| Phase: | Single Phase | Output HP: | 39W |
| Shaft Flat: | One Flat | Speed: | 1550RPM |
| Mounting Orientation: | All Angle | Capacitor: | 2.5μF/450V |
| Insulation Class: | Class B | Pole: | 4P |
| Rotation: | CCW | PF: | 0.9 |
| Bearings: | Ball Bearing | Max. Ambient Temperature: | 40℃/104℉ |
